  SECTION 7 MAINTENANCE AND SERVICING
169000  153  Revision F

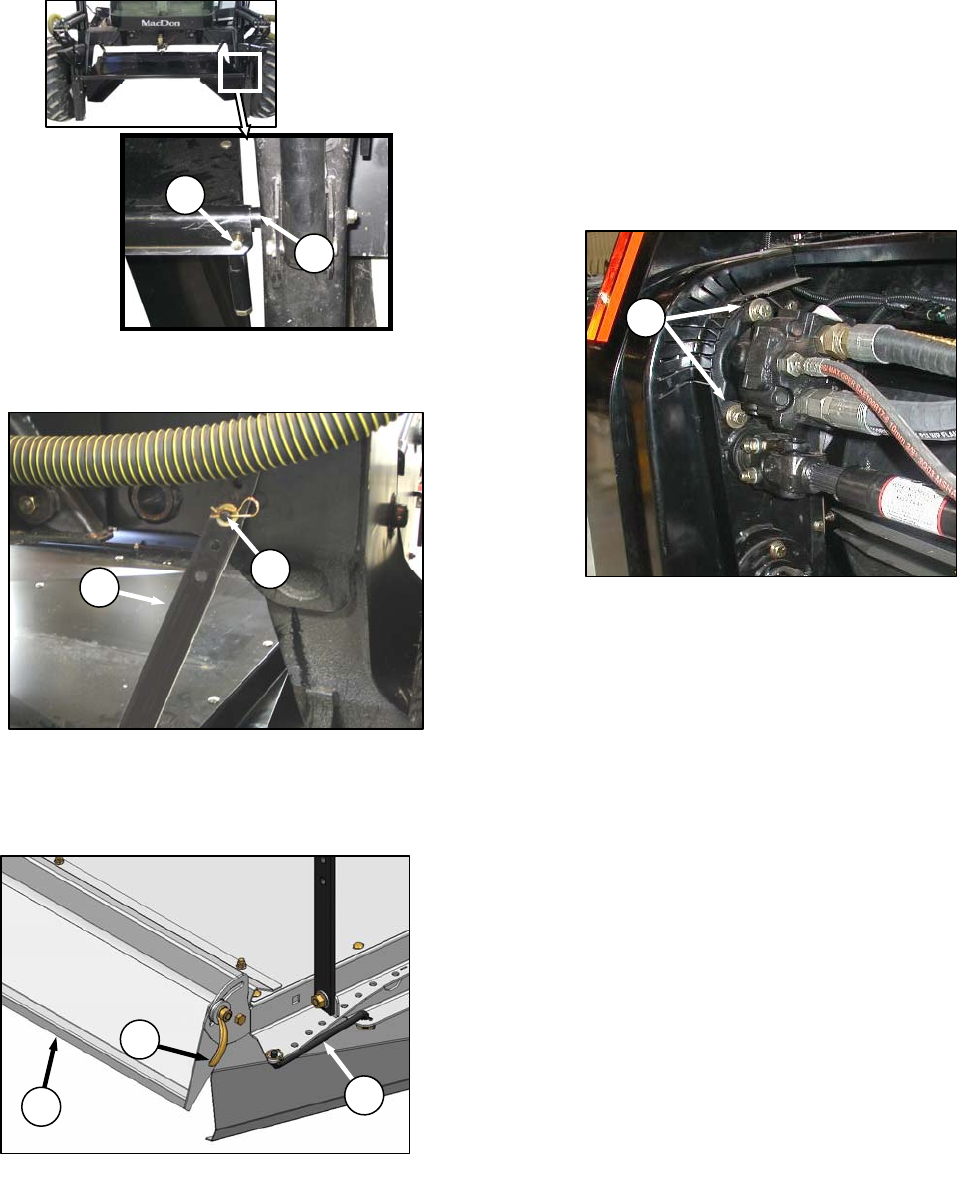

c. Lift forming shield onto bolts (N) in windrower
legs, and secure with clevis pins (M) and hairpin.
d. Lift aft end of forming shield, and attach
straps (O) to pins (P) on windrower frame. Install
washer and hairpin to secure strap. Use the
middle hole, and adjust height to suit the crop.
e.  Set forming shield side deflectors to desired
width by re-positioning adjuster bars (Q). Use
the same hole location on both sides.
f.  Adjust fluffer shield (R) to middle position.
Loosen handles (S) if required.
7.13.6  Removing Hydraulic Drive Motor: All
Models
a.  Open shield covering conditioner drive.
b.  On pull-type machines, disconnect hydraulic
hoses from the motor, and install caps on hose
ends and motor ports.
c.  On self-propelled machines, disconnect hoses
at couplers on motor.
d. Remove two bolts (A) securing motor to
gearbox, and remove motor.
7.13.7  Installing Hydraulic Drive Motor: All
Models
Install hydraulic drive motor onto the gearbox (A)
as follows:
a.  Clean off excess sealant from motor flange and
gearbox face.
b.  Apply light coat of silicone to motor flange, and
position motor on gearbox as shown until
mounting holes are aligned, and pinion engages
gear in gearbox.
c.  Install bolts (A), and washers, and torque to
75 ft·lbf (102 N·m).
d.  Reconnect hoses to motor.
