SECTION 7 MAINTENANCE AND SERVICING
169000 125 Revision F

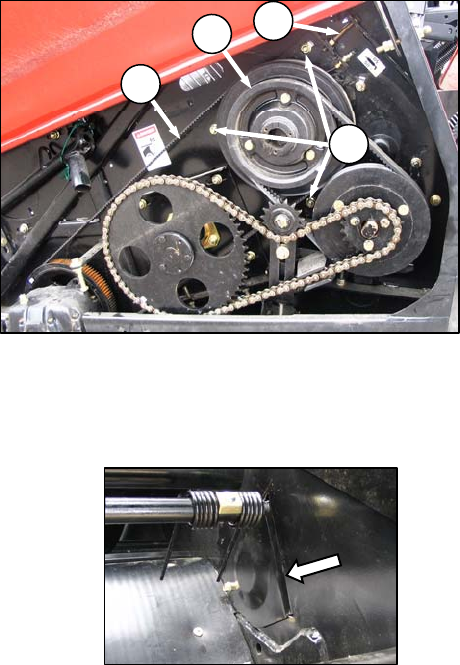

f. Loosen three nuts (B).
g. Loosen jam nut on adjuster bolt (C), and turn
adjuster bolt (C) so that knife drive belt (A) can
be slipped off pulley (D).
h. Remove bolt-in plate in LH endsheet at knife
drive box.
i. Slip belt off knife drive box pulley, and route belt
through this hole to remove it.
B
C
A
D
