Fitting - installing:
• The cut out sizes are:
Reference Cut-size
MI-76 750 x 490 mm
Installation instructions
The installation comes under the exclusive res-
ponsibility of specialists.
The installer is held to respect the legislation
and the standards enforce in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all inl-
tration of liquids in the cabinet.
His installation has to be done carefully, in con-
formity of the following drawing.

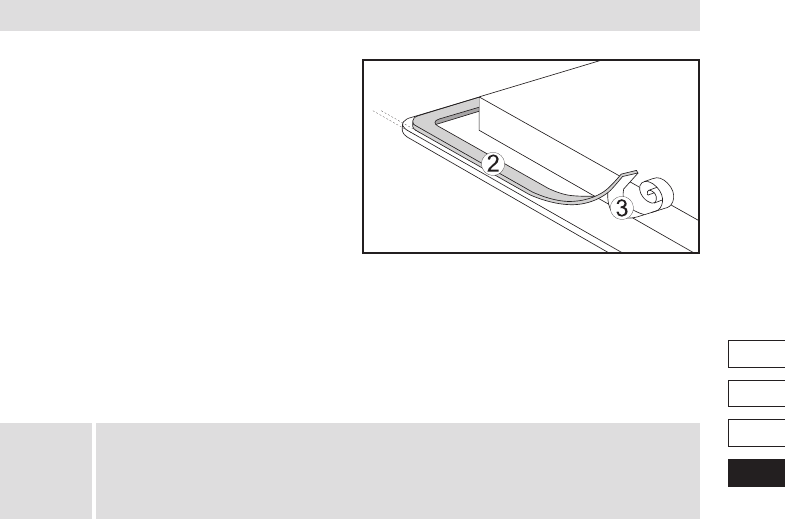

Stick the gasket (2) two millimeters from the
external edge of the glass, after removing the
protection sheet (3).
2 mm
• Ensure that there is a distance of 50 mm bet-
ween the hob and the wall or sides.
• The hobs are classied as “Y” class for heat
protection. Ideally the hob should be instal-
led with plenty of space on either side. There
may be a wall at the rear and tall units or a
wall at one side. On the other side, however,
no unit or divider must stand higher than the
hob.
• The piece of furniture or the support in which
the hob is to be tted, as well as the edges
of furniture, the laminate coatings and the
glue used to x them, must be able to resist
temperatures of up to 100 °C.
• The mural rods of edge must be heat-resi-
sting.
• Not to install the hob to the top of a not ven-
tilated oven or a dishwasher.
• To guarantee under the bottom of the hob ca-
sing a space of 20 mm to ensure a good air
circulation of the electronic device.
• If a drawer is placed under the work, avoid
to put into this drawer flammable objects
(for example: sprays) or not heat-resistant
objects.
• Materials which are often used to make
worktops expand on contact with water. To
protect the cut out edge, apply a coat of var-
nish or special sealant. Particular care must
be given to applying the adhesive joint sup-
plied with the hob to prevent any leakage into
the supporting furniture. This gasket guaran-
ties a correct seal when used in conjunction
with smooth work top surfaces.
• The safety gap between the hob and the
cooker hood placed above must respect the
indications of the hood manufacturer. In case
of absence of instructions respect a distance
minimum of 760 mm.
• The connection cord should be subjected, af-
ter building, with no mechanical constraint,
such for example of the fact of the drawer.
