5.1
Technical specications and illustrations are without
obligation, subject to modications. 08.99/06.06
*Standard, others to be indicated along with order, intermediate values possible. 1) approx. at 3 bar dilution gas behind pressure controller. 2) -5% not possible for orice „g“. 3) with injec-
tor version I. Further technical data see leaet SP2000, 2-1.1a.
Please set an (a) after the part no. for dilution probe with power 115V 60Hz, mounting ange ANSI 3" 150lbs or for connectors with inches dimensions.
Part no. 20 S 4300 : compl. set critical orice a-g , injector orice II , orice seals
control panel -S, -S1 incl. wall mounting housing optional available: -S-G, -S1-G.
Other versions on request.
Technical Data
Part No. Type M&C gas sample dilution probe SP2000H/DIL .... with orifice ”e“ for dillution ratio 30 : 1 standard
20 S 4002 SP2000H/DIL dilution probe 180 °C without ball valve upstream of the filter element
20 S 4102 SP2000H320/DIL dilution probe 320 °C without ball valve upstream of the filter element
20 S 4005 SP2000H/DIL-VA dilution probe 180 °C with heated manual operated ball valve upstream of the filter element
20 S 4022 SP2000H/DIL-B dilution probe SP2000H/DIL with bypass injector and bypass gas to the vent
20 S 4024 SP2000H/DIL-BR dilution probe SP2000H/DIL with bypass injector and bypass recirculation
20 S 4026 SP2000H/DIL-VA-B dilution probe SP2000H/DIL-VA with bypass injector and bypass gas to vent
20 S 4030 SP2000H/DIL-VA-BV dilution probe SP2000H/DIL-VA with bypass-needle valve and bypass gas to vent
20 S 4200 SP2000H/DIL-A option: 1 pressure controller, 2 gauges, mounting set incl. connector set for dilution probe
20 S 4210 SP2000H/DIL-A1 option: 2 pressure controllers, 3 gauges, mounting set incl. connector set for dilution probe with bypass
20 S 4250 SP2000H/DIL-S option: control panel with 1 pressure controller, 2 gauges, flowmeter, 2 ball valves
20 S 4260 SP2000H/DIL-S1 option: control panel with 2 pressure controllers, 3 gauges, flowmeter, 2 ball valves
SP2000H/DIL-B* -BR*
SP2000H/DIL-VA-B
SP2000H/DIL
Dilution gas
measuring point
sample gas out
Underpressure
180° C
Test gas
SP2000H320/DIL
Underpressure
measuring point
Test gas
320°C
Dilution gas
sample gas out
not present
with type *
-B
-BR
Bypass gas in
*
Sample gas Dilution gas
Underpressure
measuring point
180°C
Sample gas out
SP2000H/DIL-VA-BV
Underpressure
measuring point
Sample gas
180°C
Dilution gas
Sample gas out
Bypassgas out

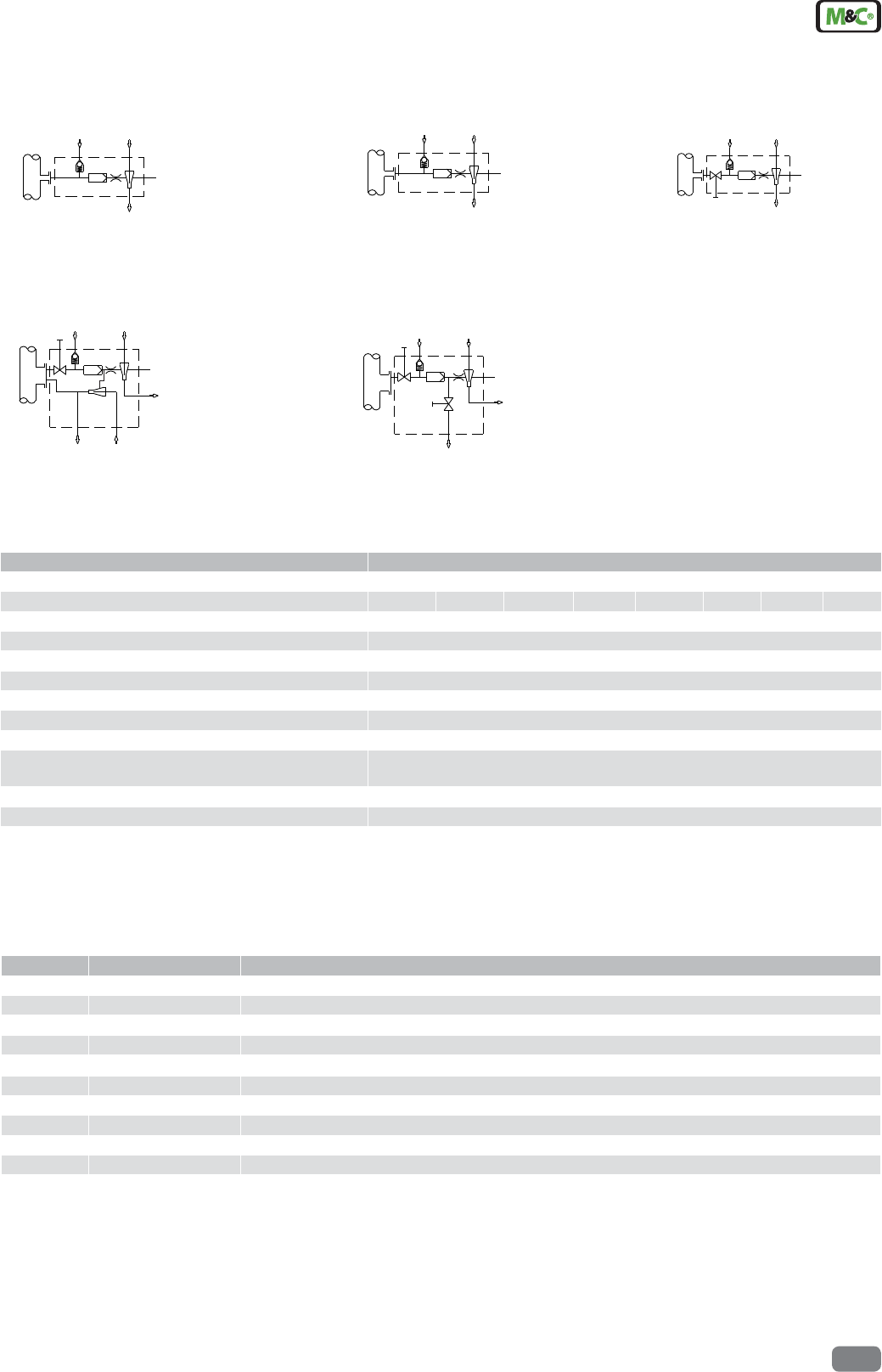

Function Diagrams
Series SP
®
Version gas sample dilution probe SP2000H/DIL ...
Insitu sample tubes and pre filters optional on request see leaflet 2-1.1a; 2-1.5.1; 2-1.6.1; 2-1.9.5
Dilution rates with the critical orifices ”a“ - ”g“
3)
a = 500 b = 200 c = 100 d = 50 e = 30* f = 20 g = 10 : 1
Sample flow rate depending on the critical orifices ”a“ - ”g“ a = 1,4 b = 2,7 c = 5,5 d = 11 e = 19* f = 28 g = 55 l/hr
1)
Possibility to adapt the dillution factror with dillution gas pressure-adjustment -5% to +30%
2)
Dillution gas flow rate with injector version I or II I: 480 - 600Nl/hr, optional for higher dilution rates II: 1800-3000 Nl/hr
Dilution gas pressure on inlet of pressure controller min. 4,5 bar g, max. 16 bar g
Bypass injector /B: gas pressure-gas flow rate-sample gas flow rate at approx. 2 bar g - injector gas approx. 300 l/hr - sample gas approx. 150 l/hr
Process pressure 0,9 up to 2 bar abs.
Fault caused by process temperature variations operation independent from process temperature
Fault caused by process under- or overpressure no fault as long as the differential pressure ∆P at the dilution unit is >0,5 bar g and test gas
is given to the probe under process conditions
Fault caused by atmospheric pressure variations <1% with a variation of 50 mbar
Materials in contact with the sample gas stainless steel 316 / 316Ti, quartz glass, FPM, graphite
Weight approx. 20 kg
SP2000H/DIL-VA
180° C
Test gas Dilution gas
measuring point
Sample gas out
Underpressure
