Manual

Lynx Page 12 Rev. 3/06/08
Assembly

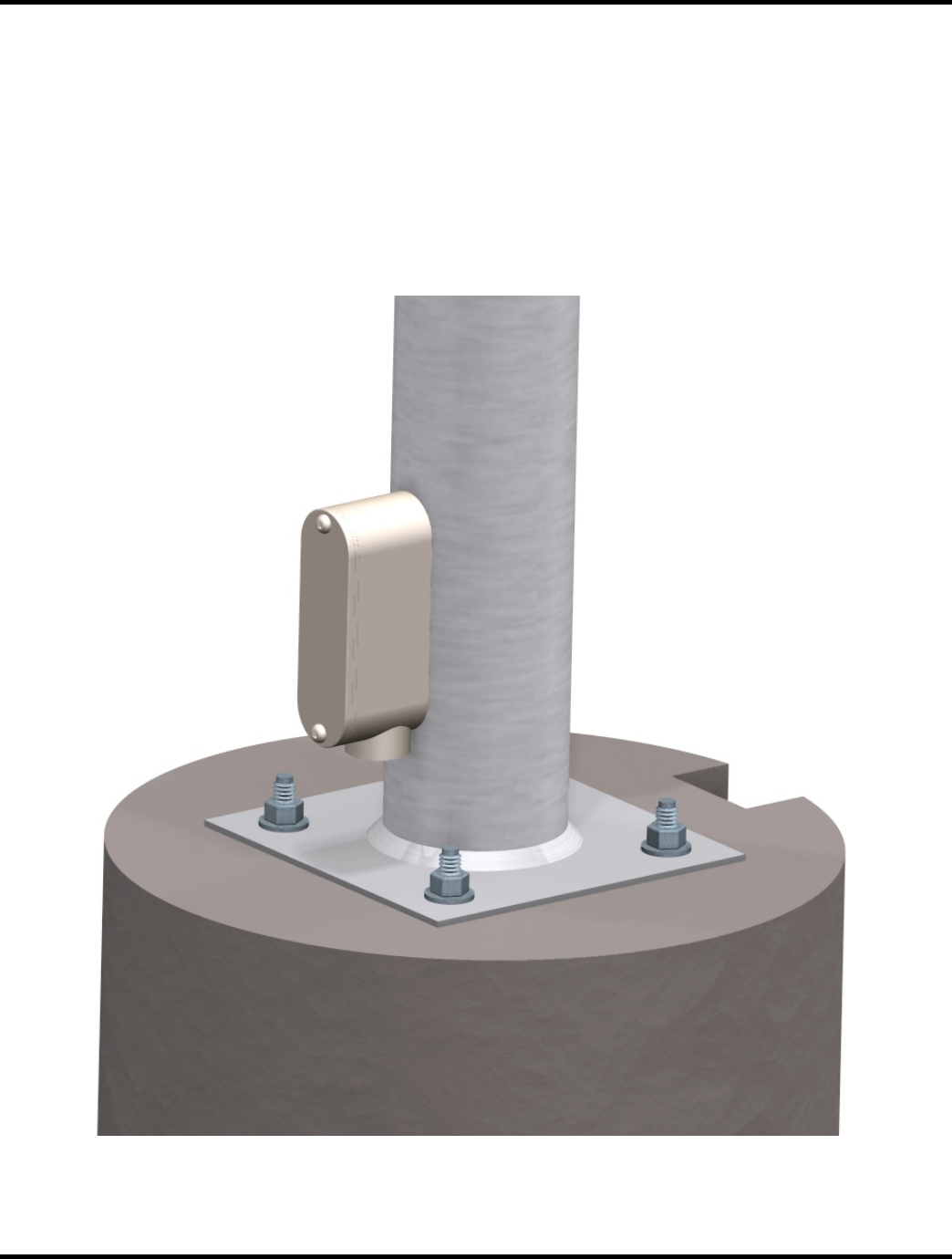

a. Mount pole base onto a concrete floor or cast concrete with a minimum
below grade depth of 12” and having a 12” diameter. If forming
concrete, cast in place appropriate passage for gas and control wires.
Use minimum 3/8” x 5” 90° lag bolts or equivalent to mount heater
base to the concrete base. The pole base could also be mounted on
wood decks with 3/8” bolts and lock washers on the underside of the
deck. Periodically check for tightness when mounted to a wood deck.
