Use and Care Manual

CARE & USE/INSTALLATION
|
13

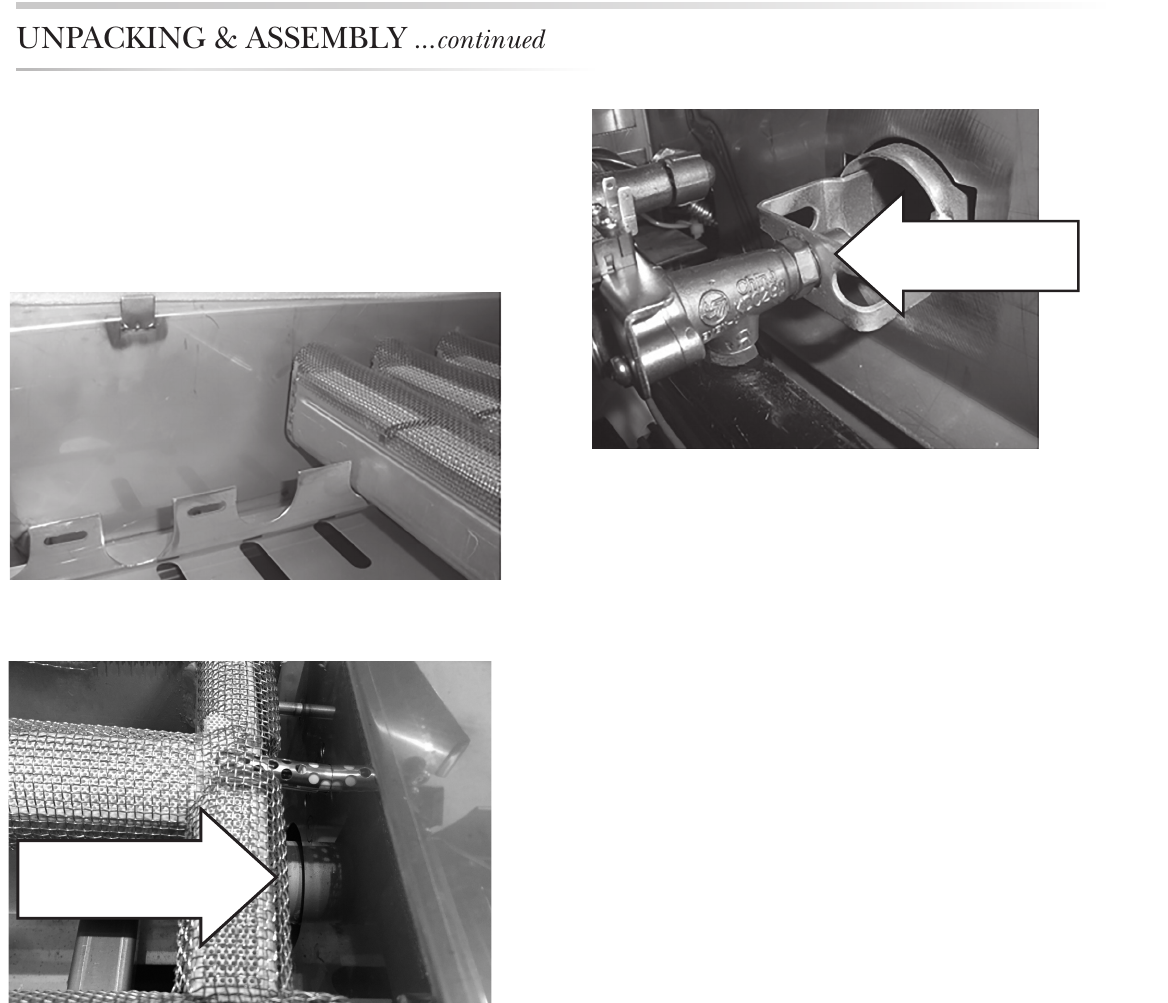

Inside View, Orifice all
the way into venturi
Heat Shield Removed,
Orifice/Venturi Position
UNPACKING & ASSEMBLY ...continued
• Ensure that all burners are properly seated on the
burner valve orifice and sitting level with the legs in
the frame slots and no side-to-side movement.
• The crossbar of the burner must sit in front of the
bracket pictured below.
