Use and Care Manual

CARE & USE/INSTALLATION
|
17
NG AND BULK PROPANE* CART INSTALLATION
• Shut off the gas supply at the main valve.
• Disconnect all plumbing (if already attached) from the grill
and the gas supply valve.
• Remove all the fittings from the grill manifold if necessary.
• Connect the gas supply to the grill as shown in the
diagram on this page for your gas type.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)

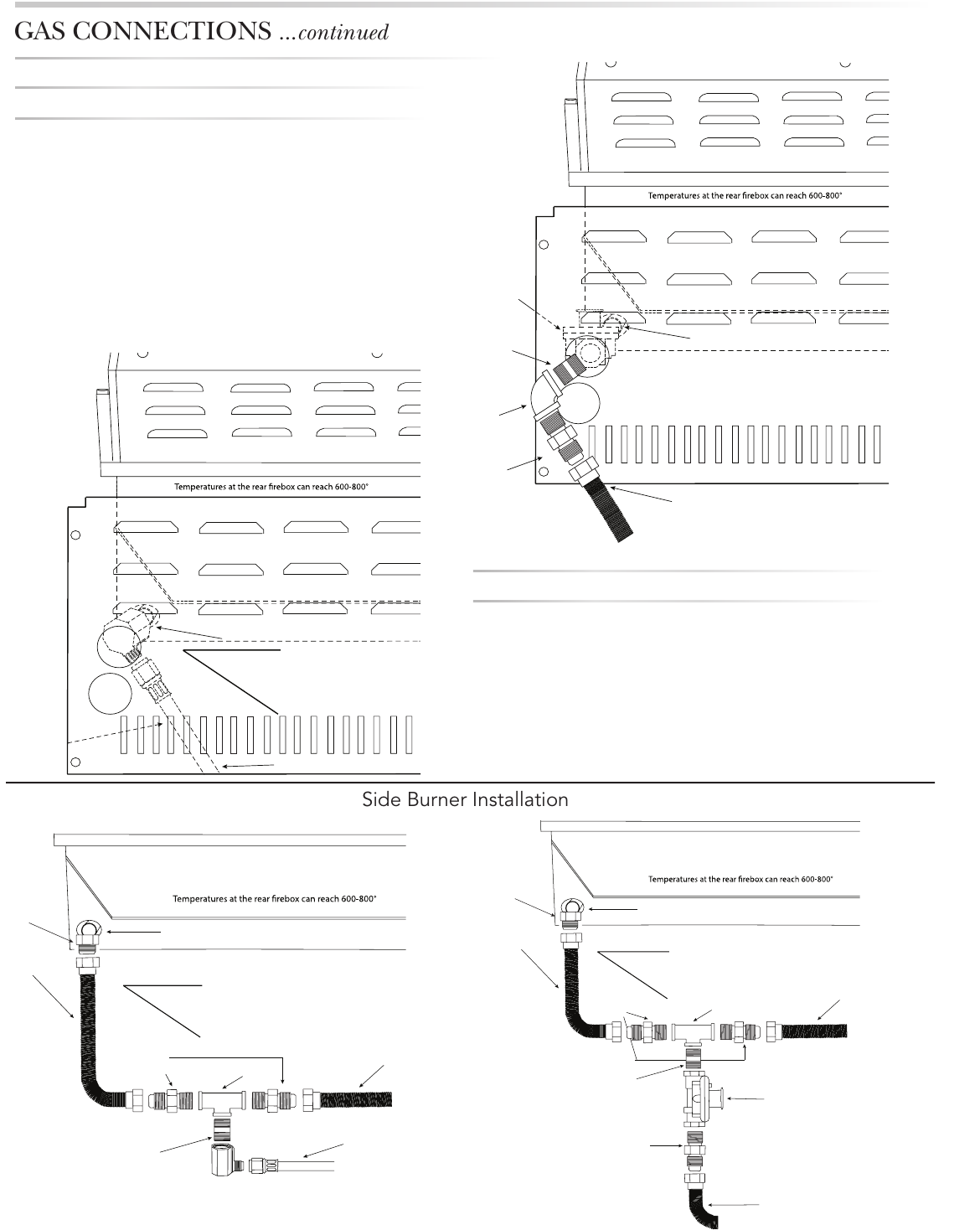

GAS CONNECTIONS ...continued
Inline
Regulator
P/N 30781
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line to Inlet
1/2” Close
Nipple
1/2” FIP
Street
Elbow
Regulator
P/N 13053
Grill Manifold with Brass Elbow
To Propane Tank
Angle At Least
20˚ From Horizon
Side Burner Installation
LP BOTTLE CART INSTALLATION
• Shut off the gas supply at the main valve.
• Connect the gas supply to the grill as shown in the
diagram on this page for your gas type.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)
1/2” Close
Nipple
Angle At Least
20˚ From Horizon
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line
to Side Burner
Flexible Gas
Line
To Propane Tank
1/2” FIP T Fitting
1/2” MxF
Fitting
1/2” Close
Nipple
Angle At Least
20˚ From Horizon
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line
to Side Burner
Flexible Gas
Line
To Propane Tank
1/2” FIP T Fitting
Inline Regulator
P/N 30781
1/2” MIP
Fitting
Flexible Gas Line
to Inlet
1/2” MxF
Fitting
*If using bulk propane, be sure the regulator plunger is ipped to LP. (see page 15)
