Rear Panel

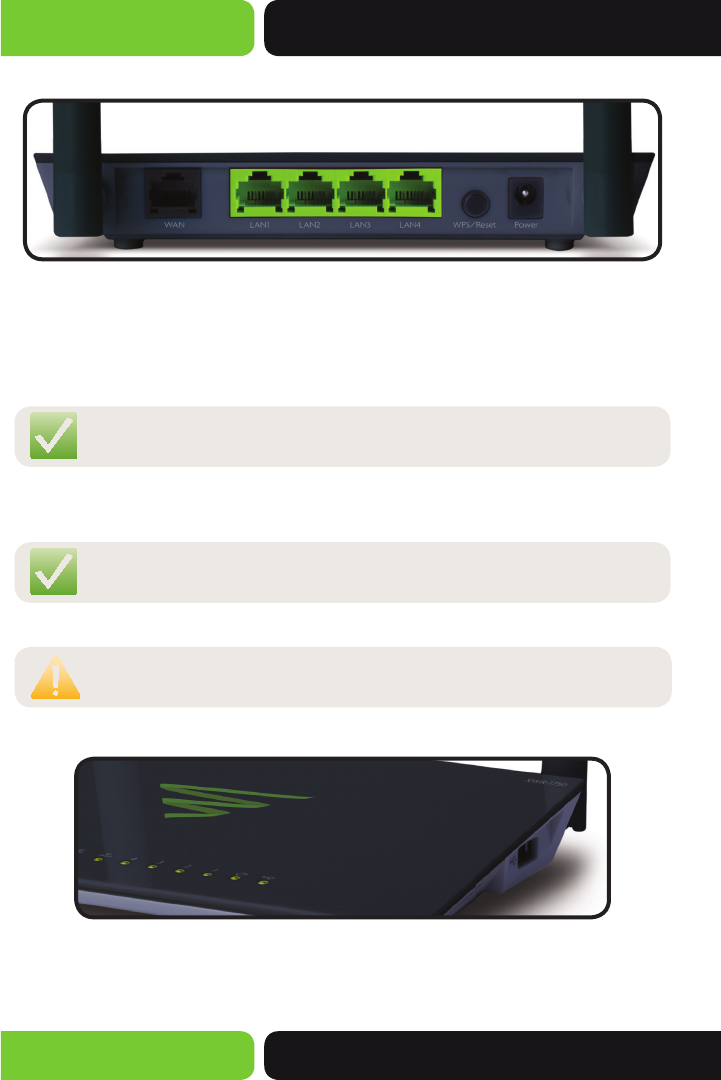

XWR-600 Rear Panel View

Antenna Ports: 2 RPSMA female antenna ports to connect the included
antennas

Power Input: Power adapter included
NOTE: To hard reboot the router, remove the power adapter. Wait 10
seconds and re-apply power.

WAN Port: 1 Black RJ-45 Ethernet Port for Internet connection

LAN 1 - 4 Ports: 4 Green RJ-45 Ethernet Ports for connecting to the local network
NOTE: It is recommended that a Luxul switch be used in conjunction
with the XWR-600 to increase number of local ports available.

WPS/Reset Button: Used to confi gure WPS or restore factory default settings
CAUTION: Holding the WPS button longer than 10 seconds will result
in a factory reset
Side Panel
XWR-600 Side Panel View

USB Port: 1 USB 2.0 ports for connecting USB based printers and hard drives
