Lutron www.lutron.com

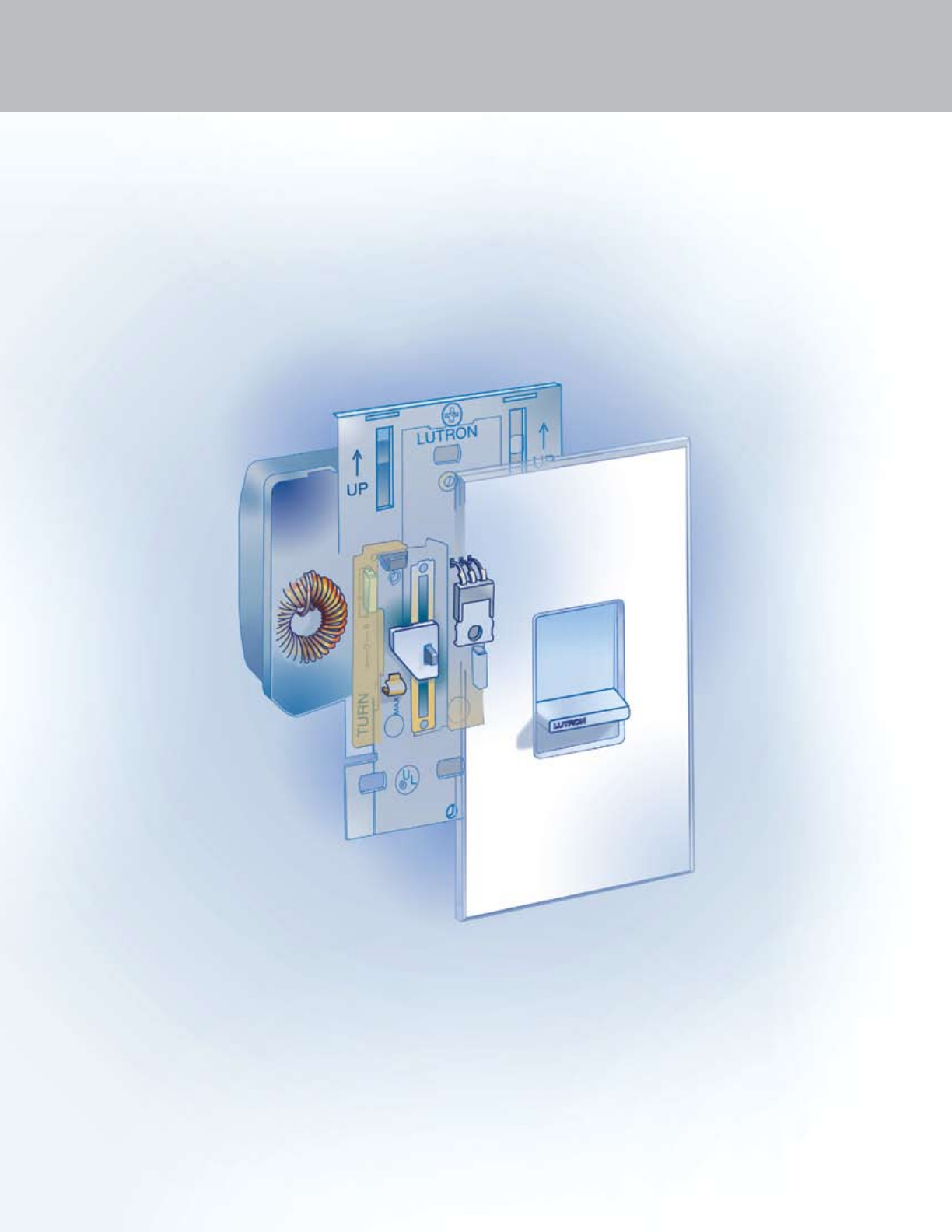

dimmers create ambiance and save energy

robust design

solid state triac dimming

Lutron

® selects reliable, solid-state triacs

that exceed the control’s rated capacity.

Control will dim full rated wattage capacity.

surge protection

Tested to withstand surges

of 6000 V, 200 A

meeting ANSI/IEEE

Std. C62.41-1980.

ﬁltering network

Large toroidal

choke minimizes

or eliminates radio

frequency interference.

air-gap switch

Safety feature that disconnects

power from the load when

lights are off.

heat transfer technology

Engineered full-sized heat sinks transfer

heat away from integral components,

so they operate cooler than the rated

temperature – resulting in long product life.

power-failure memory

Light is restored to the same level

set prior to the power-failure.

UV stable color

Tested for color stability when exposed to sunlight

as deﬁned in ASTM D4674-89.

voltage compensation

Reduces light ﬂuctuations that

can accompany line-voltage variation.

precise color

consistency

To assure color

consistency

all Lutron products

meet Lutron’s

stringent color

tolerances of ∆E<1.0,

CIE L*a*b* color

space units.

Lutron

The name means

quality, reliability, and

beautiful aesthetics.

Square law dimming

Slider position indicates the

perceived light level.

electrostatic

discharge protection

Protecting against static

discharge up to 16kV.

no exposed metal

Wallplates conceal heat sink and mounting

hardware for a sleek appearance on all

thin-proﬁle controls – no open bottom/open

top needed for convection cooling.

elegant aesthetics

All Lutron

® products are end-of-line tested. All Lutron® products are UL listed and/or CSA, CE, or NOM approved.

Lutron

performance speciﬁcations

For complete CSI specs

visit www.lutron.com/bpspecs

172

Lutron www.lutron.com

dimmers create ambiance and save energy

Summary of content (8 pages)

PAGE 1
Lutron ® | performance specifications For complete CSI specs visit www.lutron.com/bpspecs robust design elegant aesthetics solid state triac dimming Lutron® selects reliable, solid-state triacs that exceed the control’s rated capacity. Control will dim full rated wattage capacity. no exposed metal Wallplates conceal heat sink and mounting hardware for a sleek appearance on all thin-profile controls – no open bottom/open top needed for convection cooling.
PAGE 2
Lutron • • • ® | For complete CSI specs visit www.lutron.com/bpspecs performance specifications solid state dimming Semiconductor device (triac or FET) turns the lights on and off 120 times per second – saving electricity and extending bulb life while providing a steady, flicker-free illumination. voltage compensation Special circuitry that maintains the power delivered to the lamp in the event of line-voltage variations.
PAGE 3
Lutron ® | For complete CSI specs visit www.lutron.com/bpspecs performance specifications lightning strike surge protection Special circuitry protects the electronics from surges up to 6000 volts and 200 amps. electrostatic discharge protection Designed to withstand the static discharges (static shocks) common in a dry climate. For example, when you walk across the room in the winter and touch a door knob, another person, or the dimmer.
PAGE 4
Lutron • | For complete CSI specs visit www.lutron.com/bpspecs performance specifications square law dimming Dimmer output (lighting level) follows the square law power curve. smooth and continuous dimming Smooth and continuous lighting control across the dimming range.
PAGE 5
Lutron • ® | For complete CSI specs visit www.lutron.com/bpspecs performance specifications air-gap switch Visible and front accessible mechanism activates a positive air-gap switch to completely disconnect power from the load for service. Style varies for each dimmer family. power-failure memory Lights always return to the previous state when power is restored.
PAGE 6
Lutron • • • ® | For complete CSI specs visit www.lutron.com/bpspecs performance specifications load-side or line-side Wire the dimmer into either 3-way switch location. total fluorescent system solutions Dimmers and dimmable fluorescent ballasts from one manufacturer ensure system compatibility, performance, and support. Dimming ballasts are available for 1%, 5%, and 10% dimming levels.
PAGE 7
Lutron • • ® | For complete CSI specs visit www.lutron.com/bpspecs performance specifications precise color consistency Color variations are monitored to ensure that all visible plastic parts have a consistent color. UV stable color Visible plastic parts do not fade or yellow with prolonged exposure to sunlight.
PAGE 8
Lutron ® | no exposed metal heat fins Completely enclosed heat sink for an aesthetically pleasing appearance. • • For complete CSI specs visit www.lutron.com/bpspecs performance specifications the benefits: clean and stylish appearance no open top/open bottom that allows heated air to collect dust on wall surface recommended specifications: Controls shall be thin profile with no exposed heat sink/yoke. 1.800.523.
