User's Manual

RadioRA ® Setup Guide for the Entry Master Control
7
Section 1 - Overview
HOME SECURITY GARAGE 1
Overview

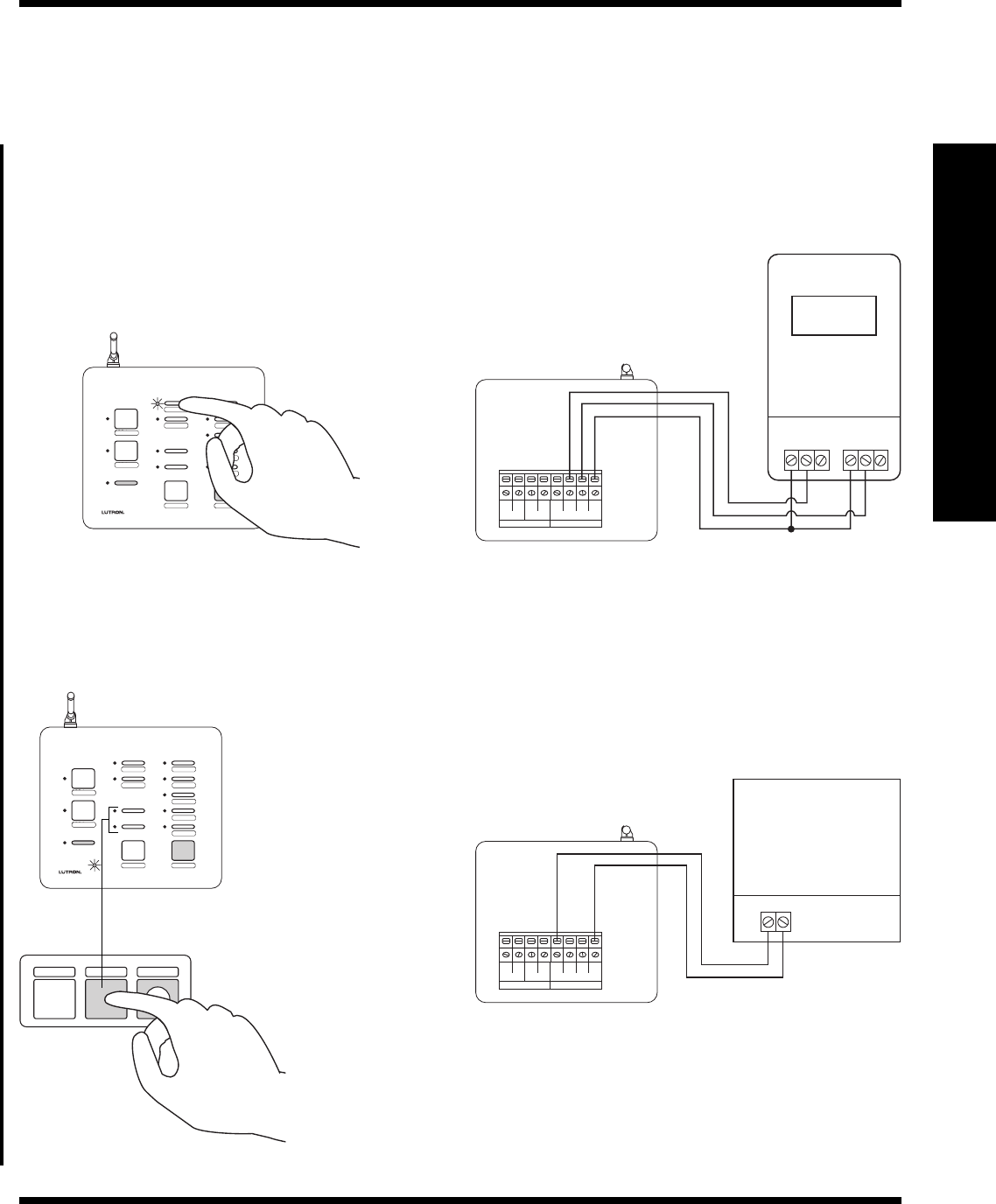

Interfacing to a Timeclock
The lighting scene “Sunset” on the Entry Master Control can be activated by either pressing the button labeled
“Sunset” or by an input closure on CCI 1.
AWAY
NIGHT
HOME
MORNING
WELCOME
ALL ON ALL OFF
SECURITY
FLASH
FULL
CCO 2
CCO 1
LEARN
GARAGE 1
GARAGE 2
SUNRISE
SUNSET
OUTPUTS INPUTS
1212
CCO 1
CCO 2
COM CCI 2 CCI 1 FLASH FULL
12:00
PM
Output 1 Output 2
C NO NC C NO NC
– OR –
Interfacing to a Security System
AWAY
NIGHT
HOME
MORNING
WELCOME
ALL ON ALL OFF
SECURITY
FLASH
FULL
CCO 2
CCO 1
LEARN
GARAGE 1
GARAGE 2
SUNRISE
SUNSET
OUTPUTS INPUTS
1212
CCO 1
CCO 2
COM CCI 2 CCI 1 FLASH FULL
Output
– OR –
Enter SECURITY Mode by
pressing and holding
(approximately 3 seconds)
the “SECURITY” button on
the Visor Control.
Enter SECURITY Mode with a maintained input
closure from a Security System.
Security Panel
• While in SECURITY Mode, dimmers assigned to FULL will turn on to full intensity, dimmers assigned to FLASH
will begin flashing.
