User's Manual

RadioRA ® Setup Guide for the Entry Master Control
5
Section 1 - Overview

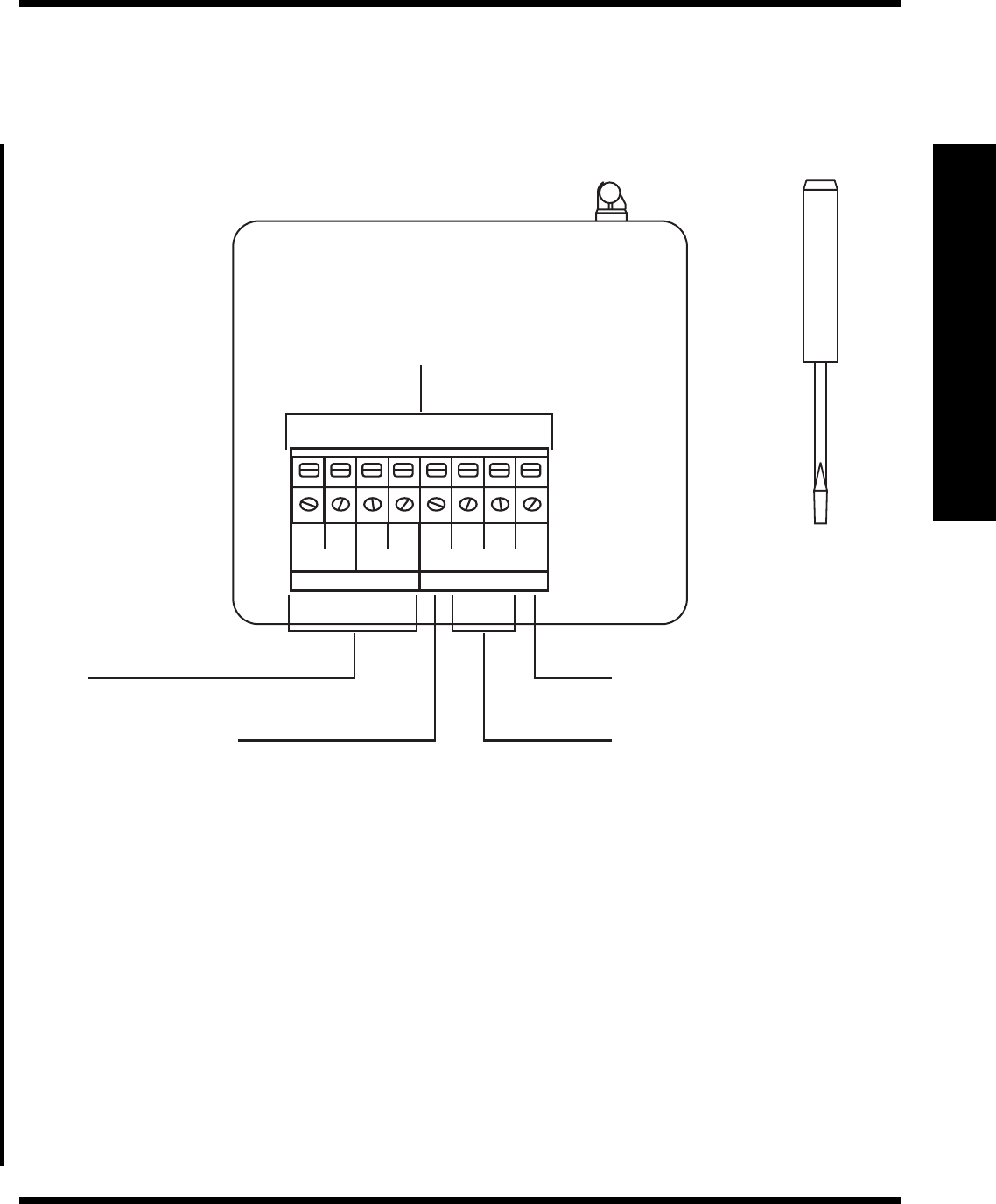

Rear View
Use included
screwdriver to
secure wires into
terminals.
Overview
OUTPUTS INPUTS
1212
CCO 1
CCO 2
COM CCI 2 CCI 1 FLASH FULL
Common
Common connection for all inputs.
General Inputs
Turns ON a ROOM or SCENE when
set as a momentary input; toggles a
ROOM or SCENE when set as a
maintained input.
FULL FLASH Security Input
Activates FULL and FLASH scenes
while a maintained input is present.
Outputs
Provide a momentary contact
closure output.
Terminal Block
Each terminal accepts
14-22 AWG, Class 2 wire.
