User's Manual

RadioRA ® Setup Guide for the Entry Master Control
19
Section 4 - Advanced Features
Advanced Programming
Programming the FULL and FLASH Buttons
The Security FULL and FLASH buttons are used for programming and diagnostic purposes only.

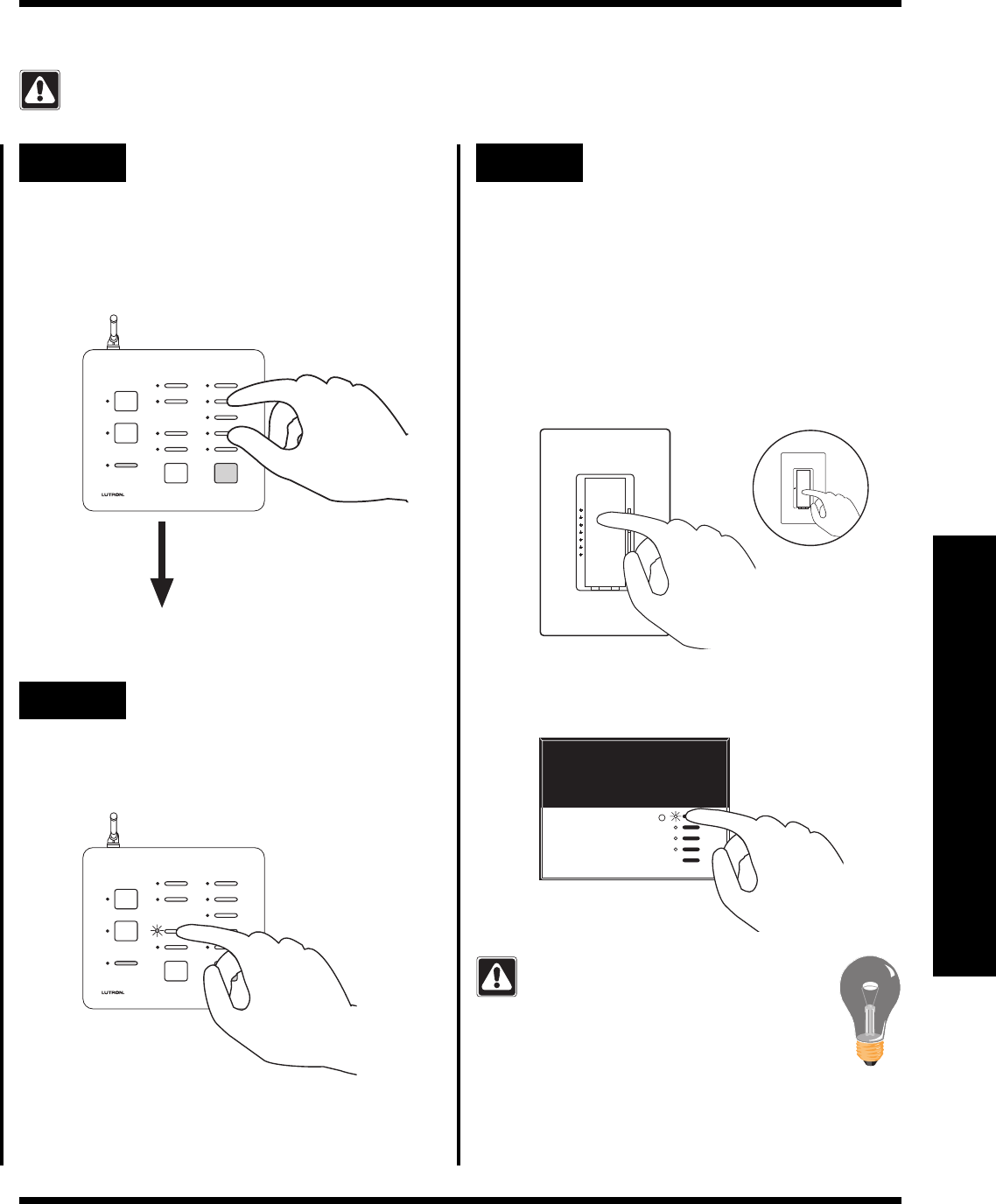

Step 1 Begin FULL and FLASH
button programming
Simultaneously press and hold the 2nd and
4th buttons in the right most column until the
upper right LED begins to flash (approximately
3 seconds).
Upper right LED flashes.
Step 2 Select the FULL Button
Press the FULL button.
SECURITY
CCI 2
CCI 1
FLASH
FULL
CCO 2
CCO 1
LEARN
SECURITY
CCI 2
CCI 1
FLASH
FULL
CCO 2
CCO 1
LEARN
Step 3 Assign Dimmers, Switches or
GRAFIK Eye® Control Units to
the FULL button
• Dimmers and Switches assigned will turn on to full
while in SECURITY Mode.
• GRAFIK Eye® Control Units assigned will go to
scene 1 while in SECURITY Mode.
If you assign the wrong Dimmer,
Switch or GRAFIK Eye® Control Unit to
the FULL button, turn the Dimmer,
Switch or GRAFIK Eye® Control Unit
OFF to unassign it.
Assign a GRAFIK Eye® Control Unit to the
FULL button by pressing the scene 1 button.
Assign a Dimmer or Switch to the FULL button
by turning the Dimmer or Switch ON.
Switch
OR
Dimmer
• Continued on next page.
FULL LED will begin to flash.
