RadioRA ® Setup Guide for the Entry Master Control
15
Section 3 - Start-Up
Button Programming
Step 3 Complete CCI closure type
assignment
Simultaneously press and hold the FULL and
ALL ON buttons (approximately 3 seconds).
SECURITY
CCI 2
CCI 1
FLASH
FULL
CCO 2
CCO 1
LEARN
SECURITY
CCI 2
CCI 1
FLASH
FULL
CCO 2
CCO 1
LEARN
Activate
Switch
Release
Switch
Switch
Open

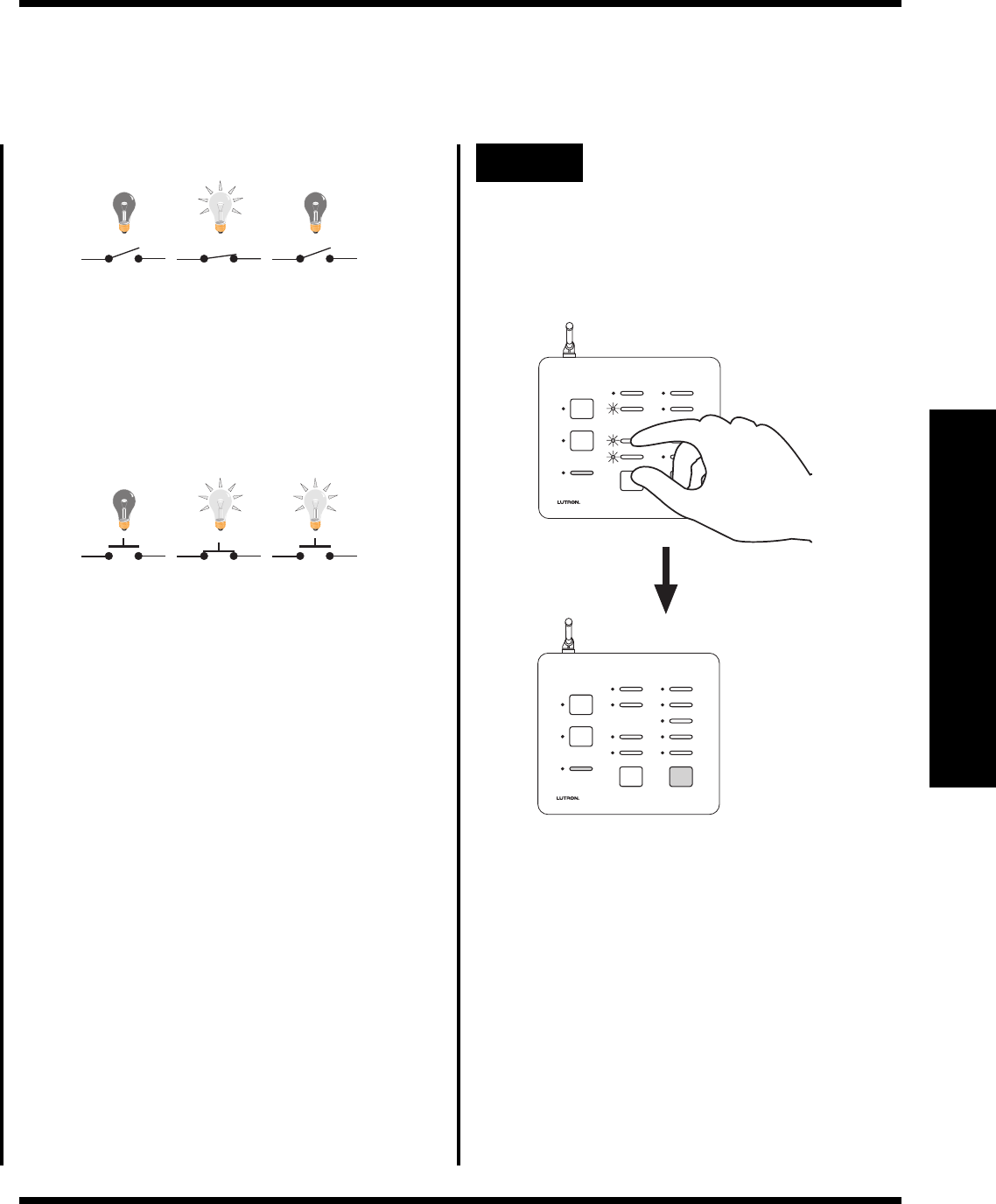

Momentary Input Example
Activate
Switch
Release
Switch
Switch
Open
A Maintained switch closure will turn an input
ROOM or SCENE ON. Input ROOM or
SCENE remains ON until the switch closure is
released. When released, the input ROOM or
SCENE turns OFF.
Maintained Input Example
A Momentary switch closure will turn an input
ROOM or SCENE ON. A momentary switch
closure cannot turn an input ROOM or
SCENE OFF.
All LEDs will turn OFF.
