Syringe: Delivers sample from the sample plate to the cuvette. It is
located in the compartment behind the center door.

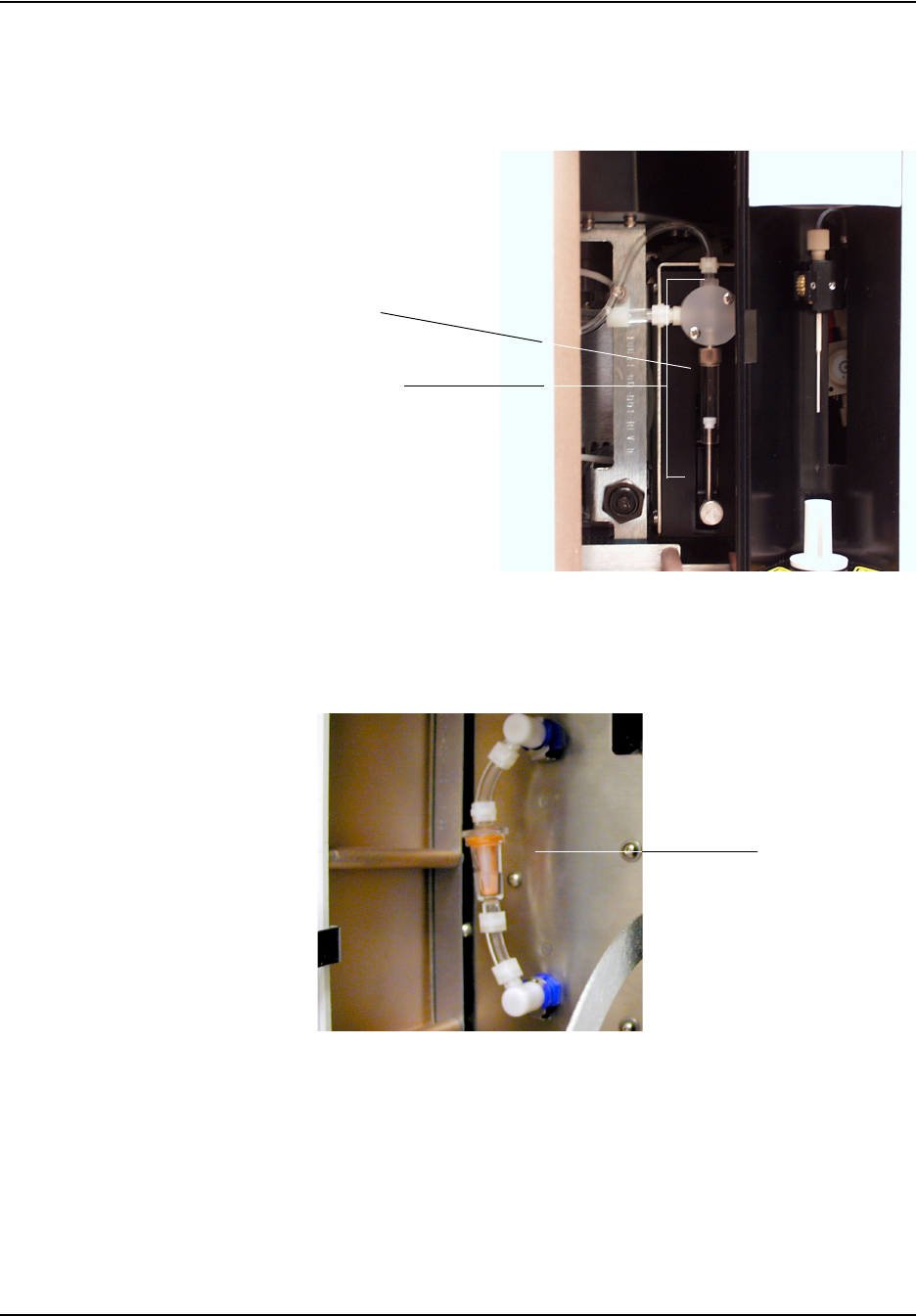

Figure 3-5. Syringe
Sheath filter: Removes particles greater than 10 microns in
diameter from the sheath fluid. It is located behind the left access
door.
Figure 3-6. Sheath Filter Assembly
Air, waste fluid, and sheath fluid connectors: Connect to the
sheath and waste fluid containers. The air connector is green, the
sheath fluid connector is blue, and the waste fluid connector is
orange.
Syringe
Syringe
Seal
Sheath Filter
Assembly
