Hardware The Luminex SD system includes:
• Luminex Sheath Delivery device
• Waste line tubing (orange fitting)
• Sheath fluid line (blue fitting)
• Air line (green fitting)
• Sheath fluid intake line (white fitting)
•Power cord
• Screwdriver
1. Power and Fault Indicators
2. Prime Button
3. Regulator Adjust
4. Air In Connector (green)
5. Sheath Out Connector (blue)
6. Sheath In Connector (white)
7. Reservoir Window

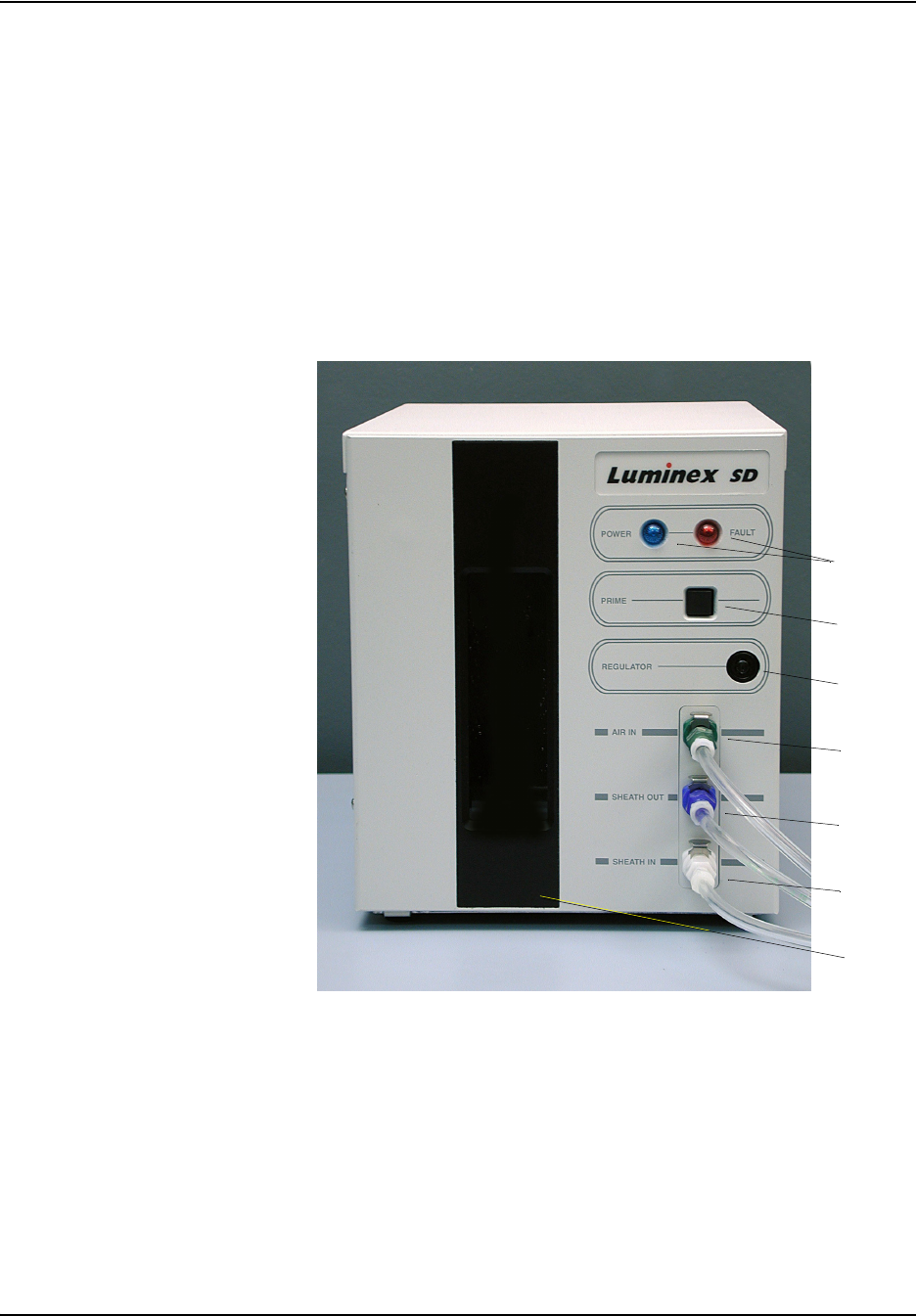

Figure C-8. Luminex Sheath Delivery Device
4.
5.
6.
1.
2.
3.
7.
