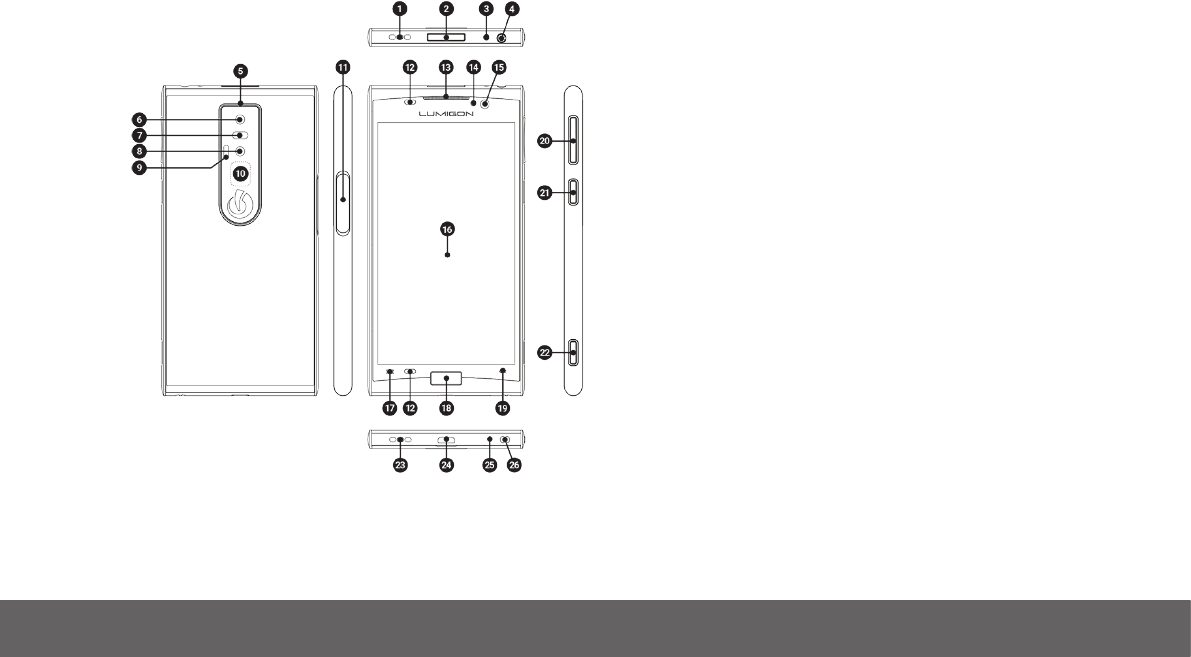

1.2 Overview
A detailed description of the keys functions is found in the “Keys and connectors” section
1. Speaker (top)
2. Power key
3. Infrared transmitter/receiver
4. Audio jack connector (3.5 mm)
5. Noise cancellation microphone
6. 13 megapixel main camera
7. Main camera ash
8. Infrared camera
9. Infrared LED light
10. BackTouch area
11. SIM card tray
12. Proximity sensor
13. Earpiece
14. Front camera ash
15. 2.4 megapixel front camera
16. Actvive area
17. Overview key
18. Home key with ngerprint reader
19. Back key
20. Volume / Zoom keys
21. ActionKey
22. Camera key
23. Speaker (bottom)
24. Micro USB connector
25. Microphone
26. Lanyard attachment point
