User Manual

Document: 66APPMAN Rev: H 30 of 32
12.2 Output Zone/Channel Connections Table—For Trinity Multi
-zone
Either 9, or 12 output channel options are available for driving and
dimming LEDs. Channels are assigned to zones as shown in the following
tables. A 9 channel option will provide 9 zones for dimming and a 12
channel option will provide 12 zones for dimming.
Zone Number Output Channel
Belden/Alpha or Equivalent Wire Color/
Polarity
1 1
WHT + / BLK -
2 2
RED + / BLK -
3 3
GREEN + / BLK -
4 4
WHT + / BLK -
5 5
RED + / BLK -
6 6
GREEN + / BLK -
7 7
WHT + / BLK -
8 8
RED + / BLK -
9 9
GREEN + / BLK -
10 10
WHT + / BLK -
11 11
RED + / BLK -
12 12
GREEN + / BLK -
9/12 Channel - Zone Connection Table
12.3 Multi-zone Analog Interface Specification and Cabling
Connections
Trinity Multi-zone Analog uses the same interface and cabling
specifications as Trinity Analog. See sections 11.3 and 11.4 for
requirements.
Document: 66APPMAN Rev: H 3 of 32

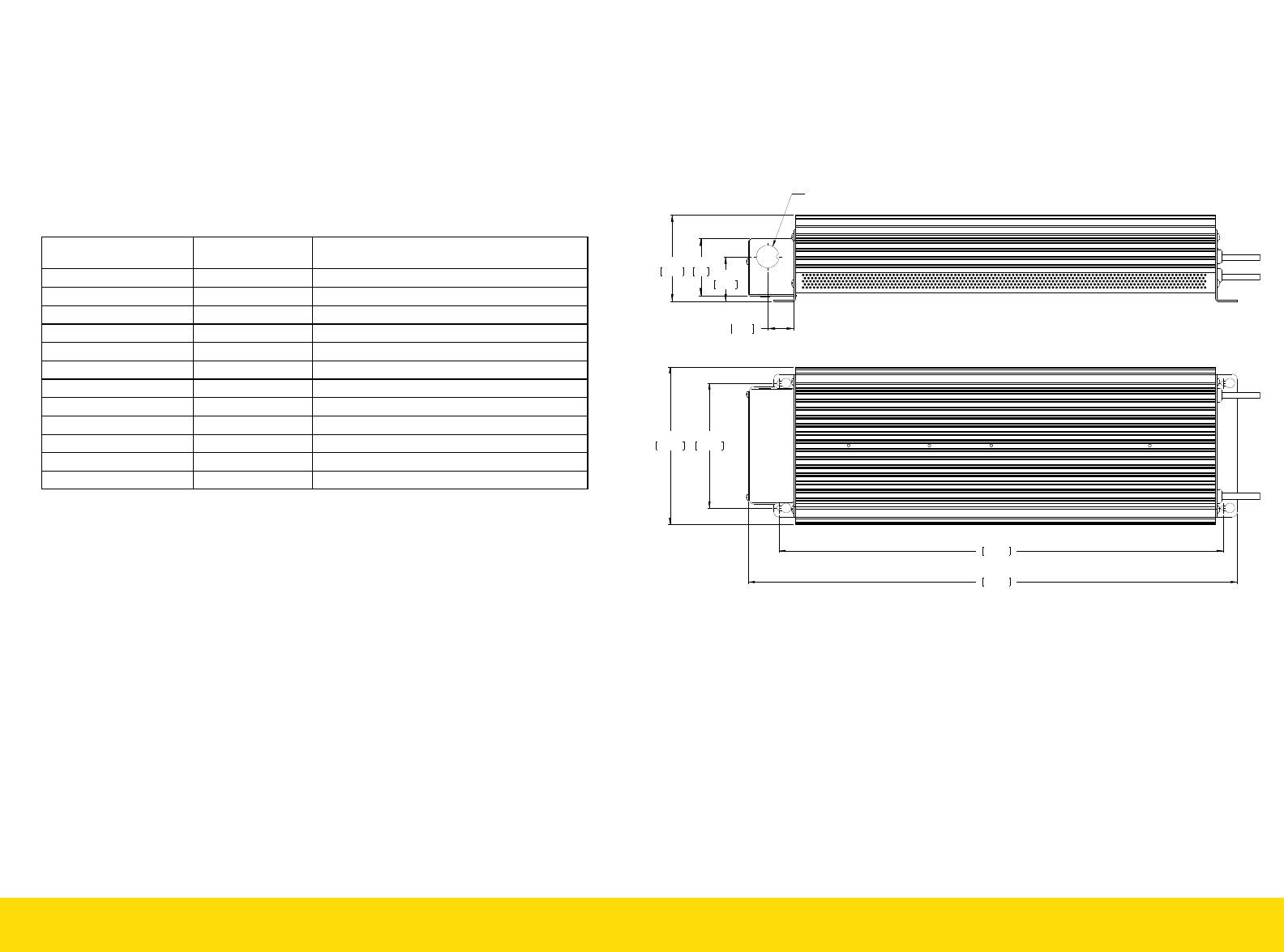

1.0 MECHANICAL DIMENSIONS
1.00
25.4
1.70
43.2
2.17
55
3.30
83.8
DC OUTPUT
1/2" CONDUIT KNOCKOUT BOTH SIDES
DIMENSIONS: INCHES
[MM]
AC INPUT
16.91
429.5
18.63
473.1
4.76
120.9
6.0
152.4
