User Manual

Document: 66APPMAN Rev: H 10 of 32

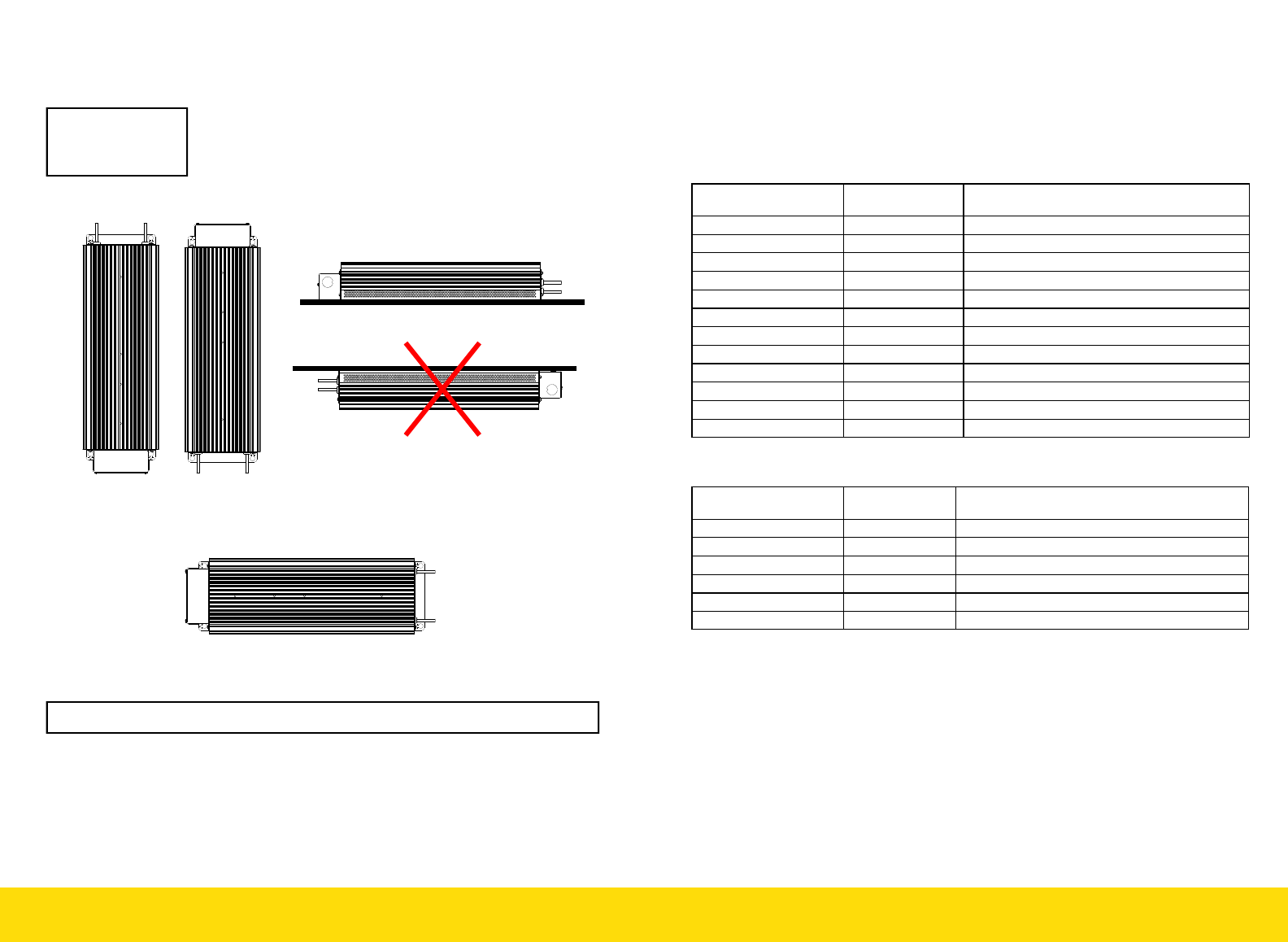

6.0 MOUNTING ORIENTATION
For sufficient cooling, the TRINITY LED Driver Dimmer must be mounted in
either a vertical or horizontal orientation as shown:
↑ UP
Vertical orientation
provides the best
cooling option
Recommended mounting screw size #8 machine or self tapping screw
↑ UP
↑ UP
Document: 66APPMAN Rev: H 23 of 32
11.2 Output Zone/Channel Connections Table
Either 6, 9, or 12 output channel options are available for driving and
dimming LEDs. Channels are assigned to zones as shown in the following
tables. A 6 or 9 channel option will provide 3 zones for dimming and a 12
channel option will provide 4 zones for dimming.
Zone Number Output Channel
Belden/Alpha or Equivalent Wire Color/
Polarity
1 1
WHT + / BLK -
1 2
RED + / BLK -
1 3
GREEN + / BLK -
2 4
WHT + / BLK -
2 5
RED + / BLK -
2 6
GREEN + / BLK -
3 7
WHT + / BLK -
3 8
RED + / BLK -
3 9
GREEN + / BLK -
4 10
WHT + / BLK -
4 11
RED + / BLK -
4 12
GREEN + / BLK -
Zone Number Output Channel
Belden/Alpha or Equivalent Wire Color/
Polarity
1 1
WHT + / GREEN -
1 2
RED + / BLK -
2 3
WHT + / GREEN -
2 4
RED + / BLK -
3 5
WHT + / GREEN -
3 6
RED + / BLK -
9/12 Channel - Zone Connection Table
6 Channel - Zone Connection Table
