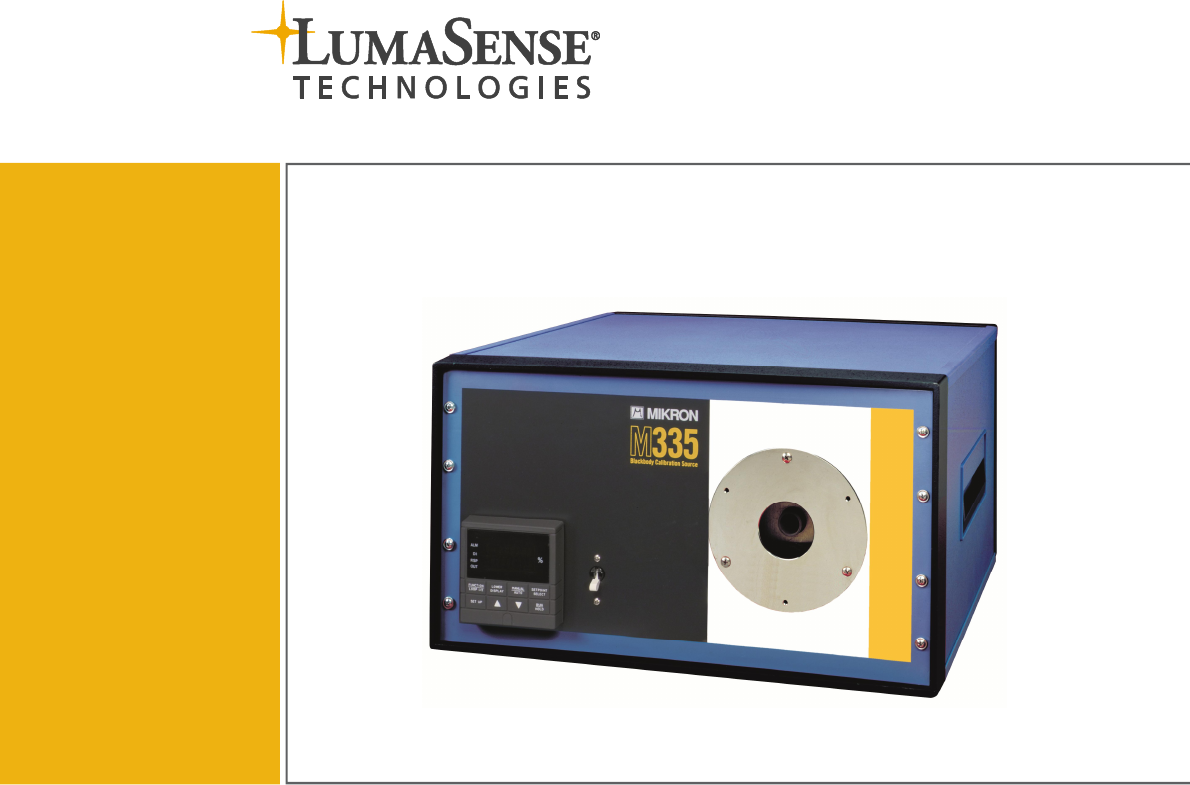

MANUAL M335 Blackbody Calibration Source
Confidential Information The material contained herein consists of information that is the property of LumaSense Technologies and intended solely for use by the purchaser of the equipment described in this manual. All specifications are subject to change without notice. Changes are made periodically to the information in this publication, and these changes will be incorporated in new editions.
Contents 1 General Information...................................................................................................... 5 1.1 Information about the user manual..................................................................... 5 1.1.1 Legend ................................................................................................................. 5 1.2 Safety ..................................................................................................................... 5 1.
To ensure consistent document formatting, this page was intentionally left blank.
1 General Information 1.1 Information about the user manual Congratulations on choosing the high quality and highly efficient Mikron blackbody. This manual provides important information about the instrument and can be used as a work of reference for installing, operating, and maintaining your blackbody. It is important that you carefully read the information contained in this manual and follow all safety procedures before you install or operate the instrument.
1.4 Unpacking the Instrument When unpacking and inspecting your system components, you need to do the following: 1. Check all materials in the container against the enclosed packing list. Note: LumaSense Technologies cannot be responsible for shortages against the packing list unless a claim is immediately filed with the carrier. Final claim and negotiations with the carrier must be completed by the customer. 2. Carefully unpack and inspect all components for visible damage. 3.
Send RMA Shipments to your nearest technical service center: Santa Clara, California Frankfurt, Germany LumaSense Technologies, Inc. 3301 Leonard Court Santa Clara, CA 95054 USA Telephone: +1 408 727 1600 +1 800 631 0176 LumaSense Technologies GmbH Kleyerstr. 90 60326 Frankfurt Germany Telephone: +49 (0)69-97373 0 Email: support@LumaSenseinc.com Email: eusupport@LumaSenseinc.com 1.7 Transport, Packing, Storage With faulty shipping, the instrument can be damaged or destroyed.
To ensure consistent document formatting, this page was intentionally left blank.
2 Introduction 2.1 Description The M335 blackbody calibration source is a general purpose high temperature source which provides a very rapid heat-up time of only 30 minutes to reach 1200 C. A self-tuning digital PID controller with adjustable set point holds the temperature to within 1 C.
2.3 Dimensions .
3 Operation 3.1 Starting Up 1. Allow the M335 to warm-up to room temperature for at least two hours after unpacking and prior to applying power. Note: The first time the M335 is used, or when left idle for a long period of time, the temperature setting of the controller should be raised gradually until all trapped water vapor has dissipated. 2. Connect the power cable. Make sure to note the power requirement specification on the Specification Label located on the rear of the M335. 3.
Blackbody Temperature Blackbody Setpoint Eurotherm controller 3.2.1 Other Controller Modes If, for some reason, the power must be turned off while monitoring temperature, you may manually set the power to none by pressing the AUTO, then raise or lower the power level in the same manner used to change the setpoint. Set to 0% to apply NO power to the blackbody. Warning: NEVER SET THE POWER TO ANY LEVEL EXCEPT 0% MANUALLY. If left unattended, the blackbody will overheat and be damaged.
8. Press the UP button to set new units °F (or K for Kelvin, if desired). Confirm the change with the RETURN button or press the PAGE button to cancel. 9. Press the PAGE button until ACCESS appears. 10. Press the SCROLL button. 11. Press the DOWN button until LEVEL 1 appears and wait. The controller will reset. 3.5 Setting Serial Communications The M335 is configured for: [ ] RS232 - standard [ ] RS422 - 4 Wire (Option) [ ] RS485 - 2 Wire (Option) The controller has a distinct address.
3.5.1 RS485 Option RS485 two wire is available as an option. The connection scheme is shown below: M335 Unit 1 (Address 1) M335 Unit 2 (Address 2) Each M335 address must be set to a different value. To change the address of an M335: 1. Press and hold the PAGE button. The word ACCESS will appear in the lower display. 2. Press the SCROLL button. LEVEL 1 will appear. 3. Press the UP button until LEVEL 3 appears. 4. Enter PASSCODE py pressing the UP button until 3 appears and wait until PASS appears. 5.
3.6 PID Tuning Constants The PID tuning constants have been factory set for optimum performance and are noted below.
