Specification Sheet

Specifications and
dimensions subject to
change without notice.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
XTOR CROSSTOUR MAXX LED
TD514005EN
April 18, 2018 8:58 AM

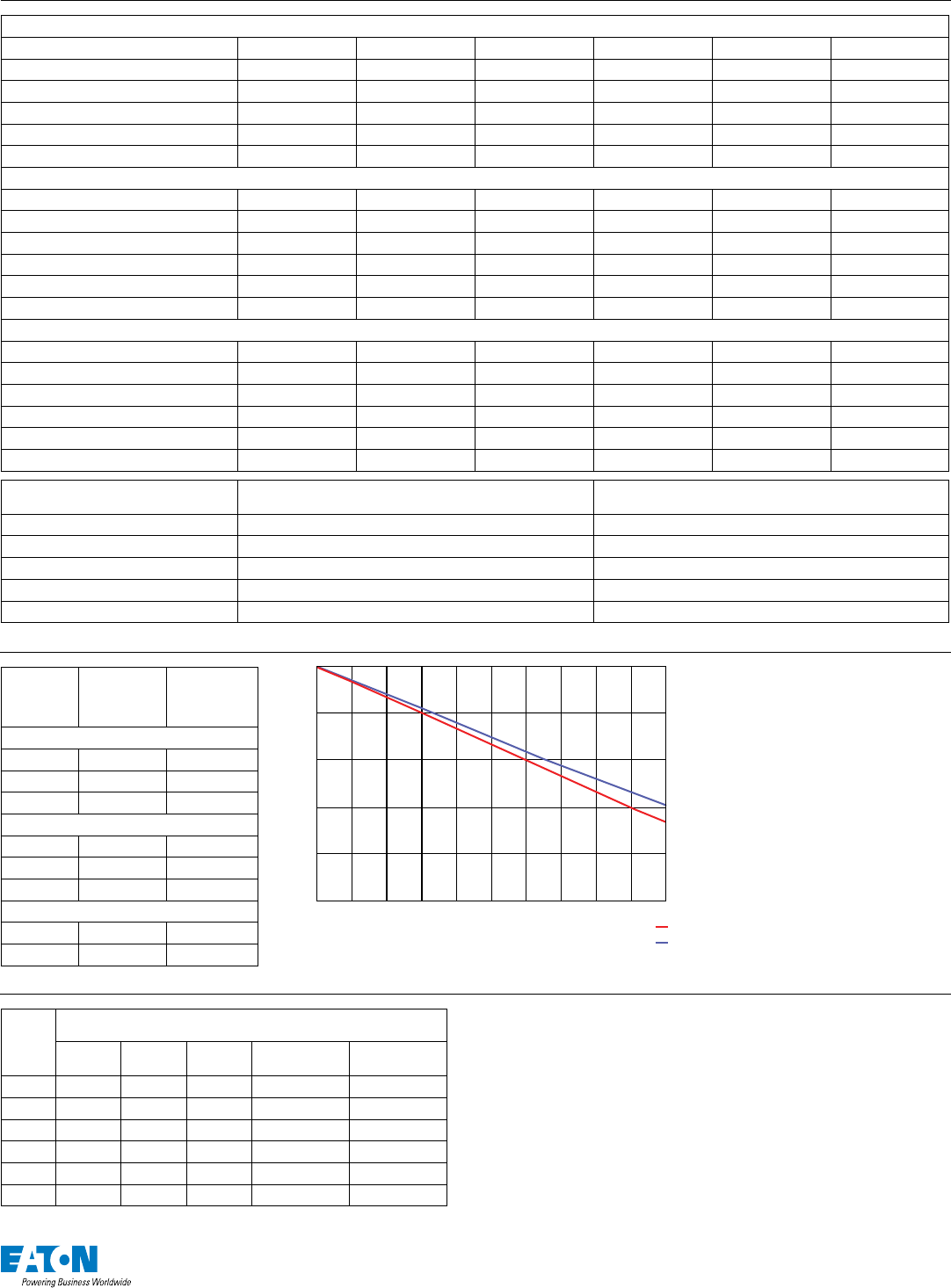

POWER AND LUMENS BY FIXTURE MODEL
CURRENT DRAW
LUMEN MAINTENANCE
100
010203040506070809
0100
75
80
85
90
95
Hours (Thousands)
Lumen Maintenance (Percent)
40°C
25°C
page 2
EGRESS Information
XTOR6B, XTOR8B and XTOR12B
Full Cutoff CBP Egress LED
XTOR6B, XTOR8B and XTOR12B
Refractive Lens CBP Egress LED
Delivered Lumens 509 468
B.U.G. Rating N.A. N.A.
CCT (Kelvin) 4000K 4000K
CRI (Color Rendering Index) 65 65
Power Consumption (Watts) 1.8W 1.8W
58W Series
LED Information XTOR6B XTOR6BRL XTOR6B-W XTOR6BRL-W XTOR6B-Y XTOR6BRL-Y
Delivered Lumens 6,129 6,225 6,038 6,133 5,611 5,826
B.U.G. Rating B1-U0-G1 B2-U4-G3 B1-U0-G1 B2-U4-G3 B1-U0-G1 B2-U4-G3
CCT (Kelvin) 5000K 5000K 4000K 4000K 3000K 3000K
CRI (Color Rendering Index) 70 70 70 70 70 70
Power Consumption (Watts) 58W 58W 58W 58W 58W 58W
81W Series
LED Information XTOR8B XTOR8BRL XTOR8B-W XTOR8BRL-W XTOR8B-Y XTOR8BRL-Y
Delivered Lumens 8,502 8,635 8,373 8,504 7,74 8 8,079
B.U.G. Rating B2-U0-G1 B2-U4-G3 B2-U0-G1 B2-U4-G3 B2-U0-G1 B2-U4-G3
CCT (Kelvin) 5000K 5000K 4000K 4000K 3000K 3000K
CRI (Color Rendering Index) 70 70 70 70 70 70
Power Consumption (Watts) 81W 81W 81W 81W 81W 81W
102W Series
LED Information XTOR12B XTOR12BRL XTOR12B-W XTOR12BRL-W XTOR12B-Y XTOR12BRL-Y
Delivered Lumens 12,728 13,458 12,539 13,258 11,861 12,595
B.U.G. Rating B2-U0-G1 B2-U4-G3 B2-U0-G1 B2-U4-G3 B2-U0-G1 B2-U4-G3
CCT (Kelvin) 5000K 5000K 4000K 4000K 3000K 3000K
CRI (Color Rendering Index) 70 70 70 70 70 70
Power Consumption (Watts) 102W 102W 102W 102W 102W 102W
Ambient
Temperature
TM-21
Lumen
Maintenance
(72,000 Hours)
Theoretical L70
(Hours)
XTOR6B Model
25°C > 90% 246,000
40°C > 88% 217,000
50°C > 88% 201,000
XTOR8B Model
25°C > 89% 219,000
40°C > 87% 195,000
50°C > 86% 181,000
XTOR12B Model
25°C > 89% 222,000
40°C > 87% 198,000
Voltage
Model Series
XTOR6B XTOR8B XTOR12B
XTOR6B-CBP
(Fixture/Battery)
XTOR8B-CBP
(Fixture/Battery)
120V 0.51 0.71 0.94 0.60/0.25 0.92/0.25
208V 0.25 0.39 0.52 - - - -
240V 0.25 0.35 0.45 - - - -
277V 0.22 0.31 0.39 0.36/0.21 0.50/0.21
347V 0.19 0.25 0.33 - -
480V 0.14 0.19 0.24 - -
