Chapter 4 Installation and Setup
14 Cajun P333T User’s Guide
Rack Mounting
The Cajun P333T case fits in most standard 19-inch racks. Cajun P333T is 2U (88
mm, 3.5”) high.
Warning:
Disconnect all cables from the unit before continuing.
Place the Cajun P333T in the rack as follows:
1 Snap open the ends of the front panel to reveal the fixing holes.
2 Insert the unit into the rack. Ensure that the four Cajun P333T screw holes are
aligned with the rack hole positions as shown in Figure 4.1.

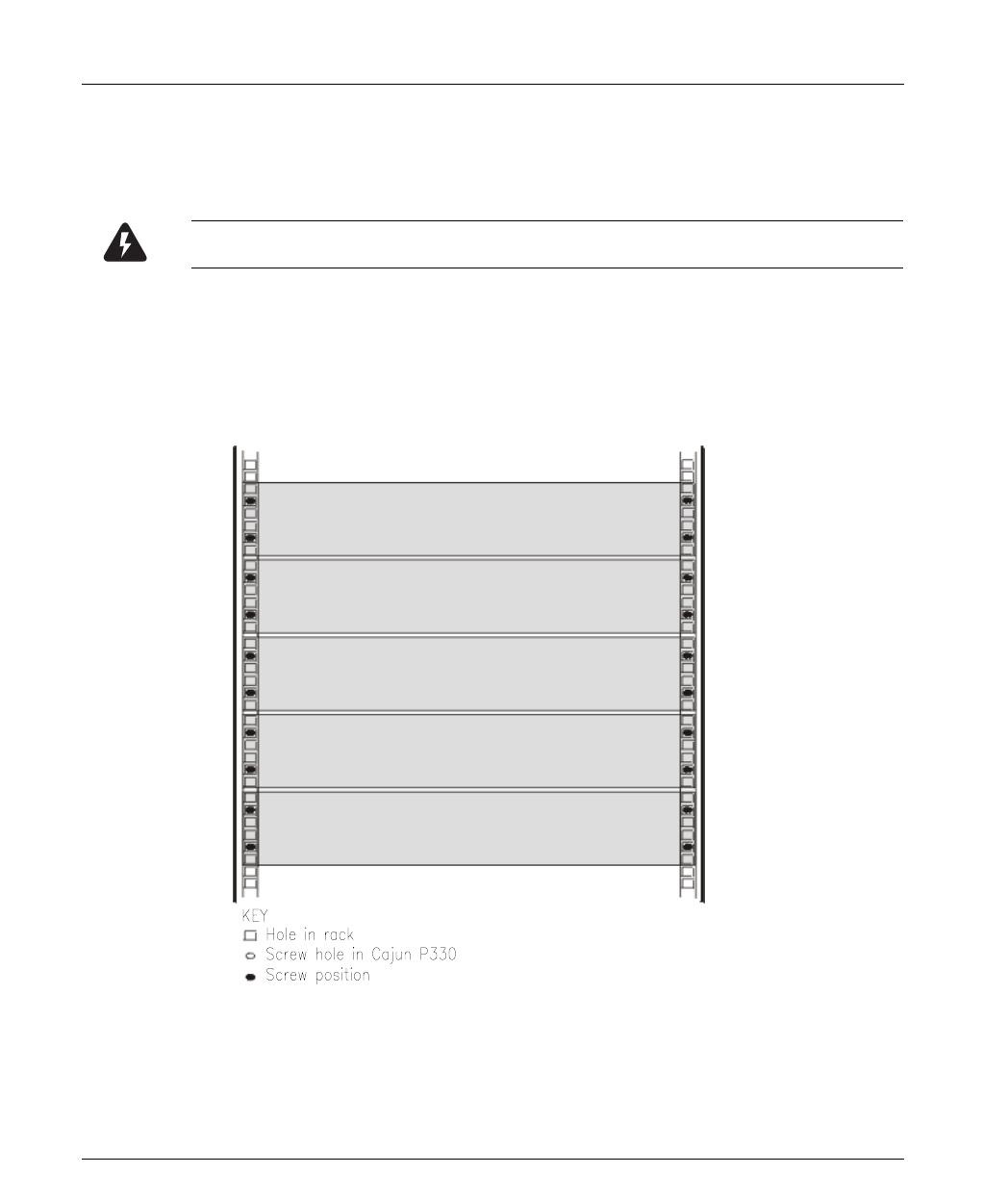

Figure 4.1 Cajun P333T Rack Mounting
3 Secure the unit in the rack using the screws. Use two screws on each side. Do
not overtighten the screws.
4 Snap closed the hinged ends of the front panel.
5 Ensure that ventilation holes are not obstructed.
