IP Trunk Administration F IP Trunk Installation and
Administration
Administration for Network Connectivity
CID: 77730 555-233-504 — Issue 1 — April 2000
430
3 In the Machine Name box, select the local machine name for the local IP Trunk
server.
4 Select Terminating
5 Click Add (under Routing Info).

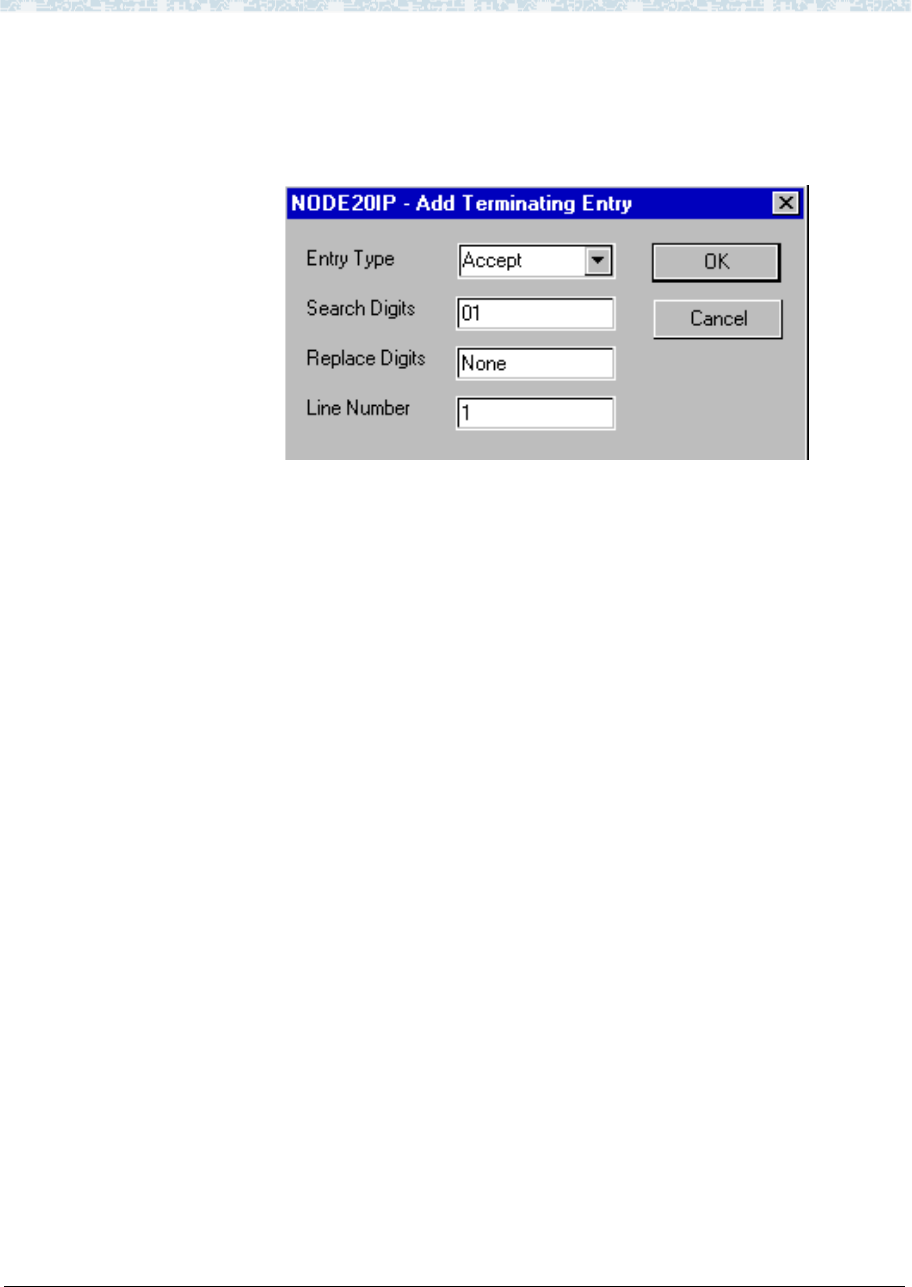

The Add Terminating Entry dialog box appears.
6 In the Add Terminating Entry dialog box, you enter information that routes the
incoming call to a terminating location. You need to enter information that allows
the IP Trunk to route calls based on dialed digits or on the line (port) that a call
arrives on.
Note: It is not possible to mix dialing strategies in the IP Trunk software. Once
line numbers are used to route calls, line numbers must be used on ALL
entries in a routing table.
Routing information entered will be based on information that has been entered
on the Dial/Routing Plan Worksheets, or on information collected based on the
Procedures for Extension Dialing Between Sites.
Routing based on Dialed String
If routing will be based on dialed string, enter any in the Line Number field, then
enter the information from the worksheets or a unique identifier for an extension
range from the Procedures for Extension Dialing.
Routing based on Line Numbers
If routing will be based on line numbers that are dedicated to a specific location,
you need to make sure that the same line number is used on both the originating
and destination switches. This is done by prepending a string of digits unique to a
line and associating it with that line number at both the originating and
terminating IP Trunks. This code will be discarded at the terminating end.
