Digital Video Recorder User Manual
2. This device is only for backup
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the DVD writer onto the bottom case as Fig2.3.
Step3: Screw the DVD writer as Fig2.4

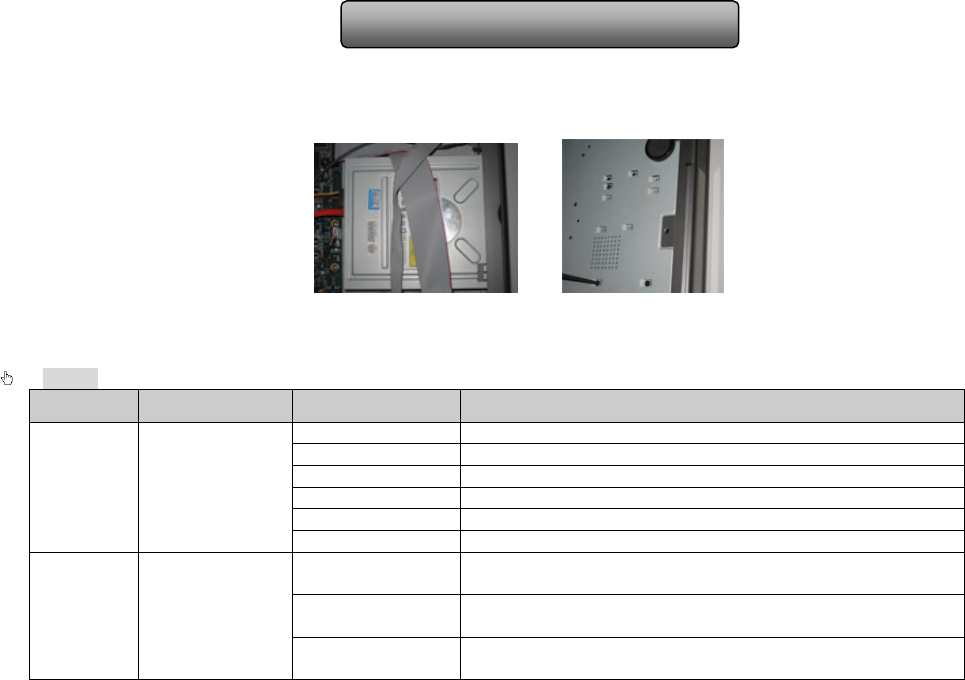

Fig 2.3 Connect the DVD Writer Fig 2.4 Screw the Writer
2.2 Front Panel Descriptions
Notice: The front panel descriptions are only for reference; please make the object as the standard.
Item
Type
Name Description
1
Work state
indicator
Power Power indicator, when connection , the light is blue
HDD When HDD is writing and reading , the light is blue
Net When access to network , the light is blue
Backup When backup files and data, the light is blue
Play When playing video, the light is blue
REC When recording, the light is blue
2
Compound
MENU/+
1. Enter menu in live
2. Increase the value in setup
BACKUP/-
1. Decrease the value in setup
2. Enter backup mode in live
RECORD/FOCUS
1. Record manually
2. FOCUS function enables at PTZ mode.
