3.2.5 ITI6200U3LP Host Adapter
The ITI6200U3LP (Figure 3.5) is an Ultra160 SCSI Low Profile PCI Host
Adapter that provides high performance (160 Mbytes/s per channel).
The ITI6200U3LP has these features:
• Three connectors
– Two external 68-pin VHDCI connections
– One internal 68-pin high density connection
• LVD/SE termination for both channels

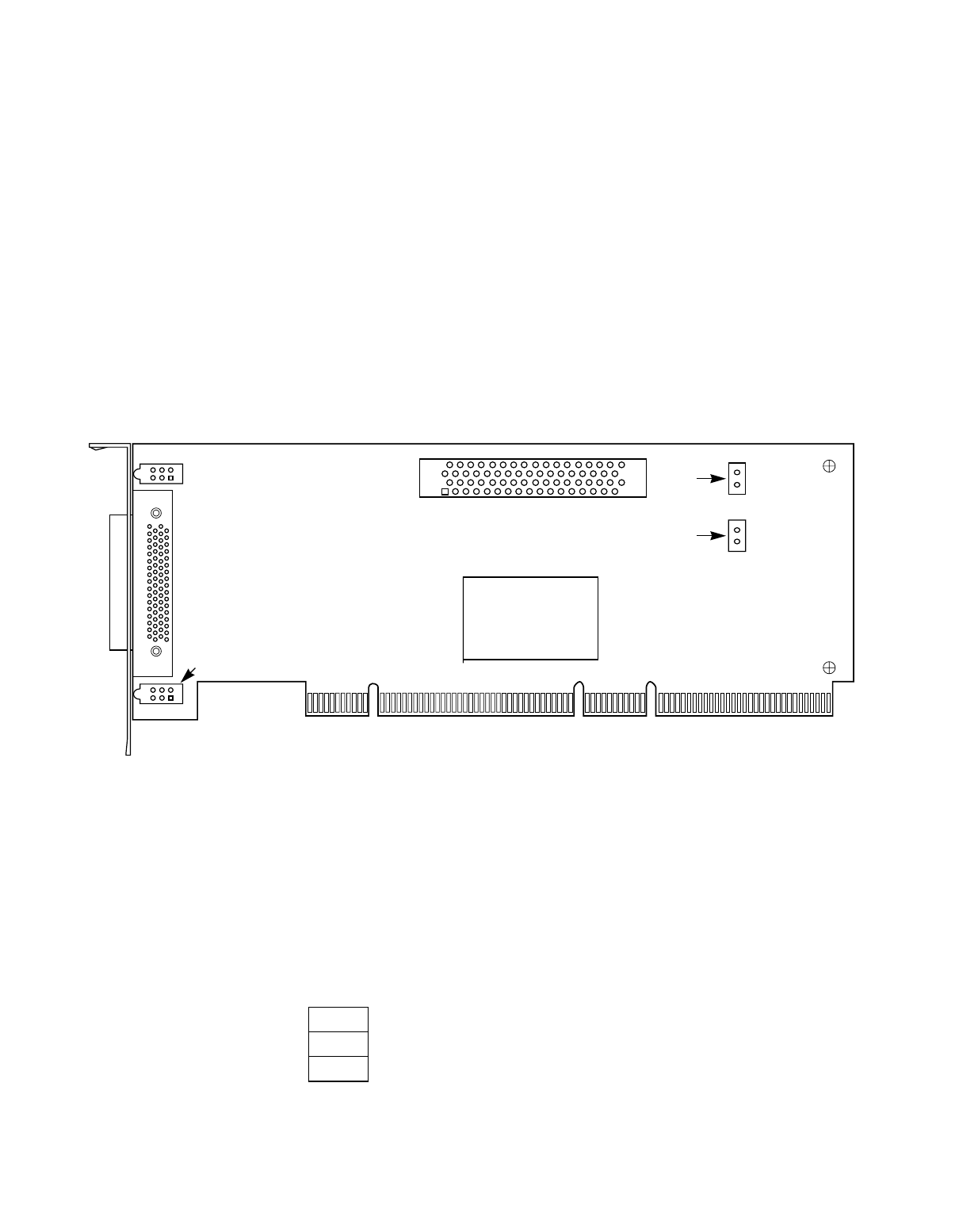

Figure 3.5 ITI6200U3LP Mechanical Drawing
The LVD status indicators for the LSI22915A and ITI6200U3LP are:
Note:
• J6: PCI 64-bit, universal type board edge connector.
• J1: 68-pin VHDCI shielded right-angle external channel A and channel B
• J4: 68-pin high density internal connector for channel B.
• HDR3: Disable termination when installed for channel A.
• HDR5: Disable termination when installed for channel B.
• Subsystem Vendor ID is 13E9.
• Subsystem ID is 1300.
J6 - PCI
J1
Channel A and Channel B (Side by Side)
Ultra160 SCSI LVD/SE
Channel A LED
Channel B LED
J4 Channel B
Ultra160 SCSI LVD/SE only
HDR5
HDR3
LSI53C1010
LVD Status Indicator
o Act. (Activity) On = Bus Busy
o Term. (Termination) On = Terminating
o LVD (Mode) On = LVD; Off = SE; Blink = (error)
