3-4 Ultra160 SCSI to PCI Host Adapter Characteristics
3.2.2 LSI20160L Host Adapter
The LSI20160L PCI to Single Channel Ultra160 SCSI Low Profile PCI
Host Adapter (Figure 3.2) provides one Ultra160 SCSI channel. The
LSI20160L board supports Low Voltage Differential (LVD) and Single-
Ended (SE) SCSI. The LSI20160L board is the LPPCI board with a low
profile bracket. The SCSI interface is made through connectors J2 and
J4.
The LSI20160L has these features:
• One Ultra160 SCSI channel
• Two connectors
– One external 68-pin VHDCI connection
– One internal 68-pin high density connection
• LVD/SE termination

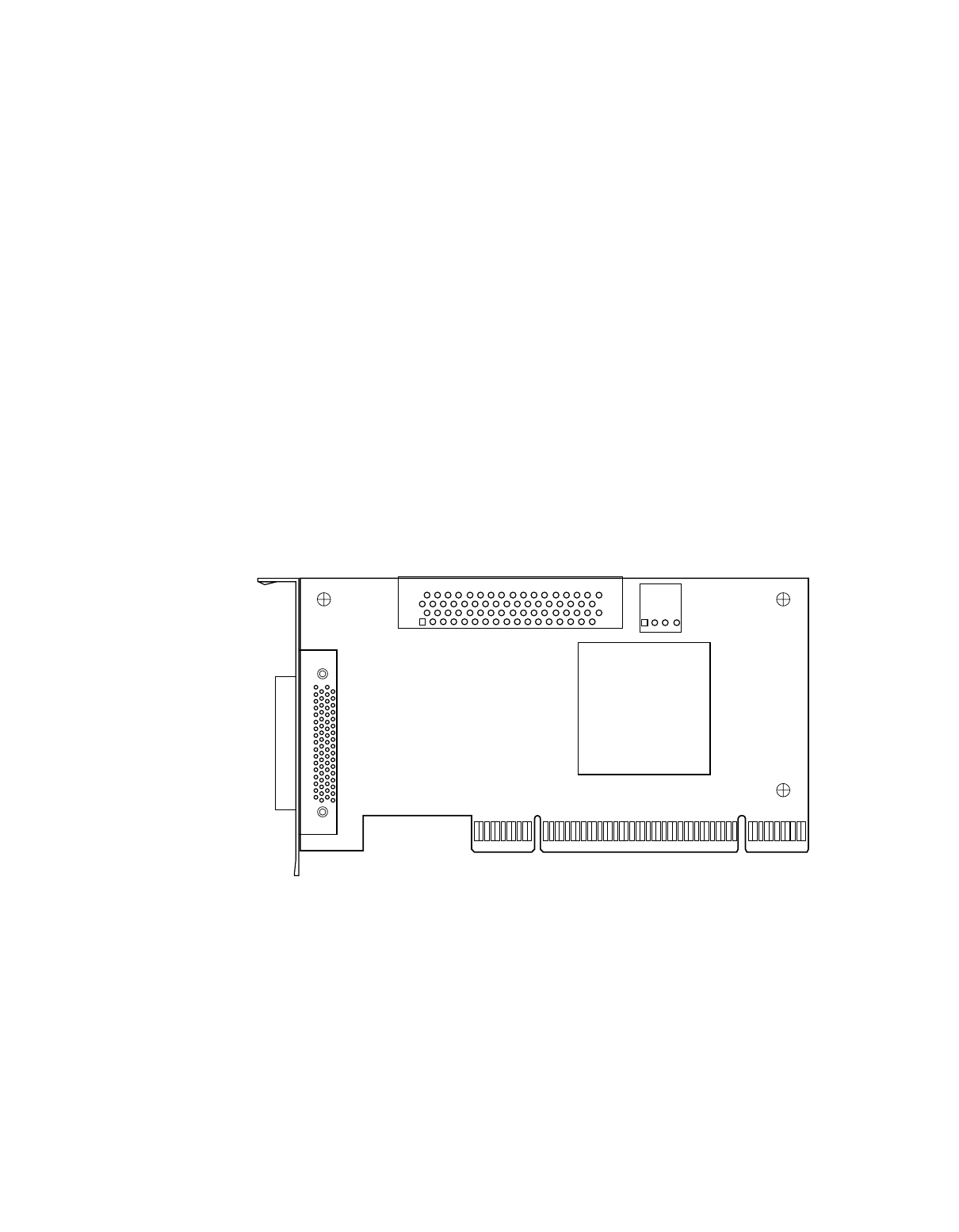

Figure 3.2 LSI20160L Mechanical Drawing
Note:
• J1: PCI 32-bit, universal type board edge connector.
• J2: 68-pin VHDCI connector for external SCSI connection.
• J4: 68-pin high density internal SCSI connection.
• J3: 4-pin low density unshrouded right-angle LED connector.
• Subsystem Vendor ID is 1000.
• Subsystem ID is 1060.
J1T - PCI
J4
J3 LED
LSI53C1000
Channel A
Ultra160 SCSI LVD only
J2
Channel A
Ultra160 SCSI LVD/SE
