Installing your Ultra160 SCSI Host Adapter 2-3

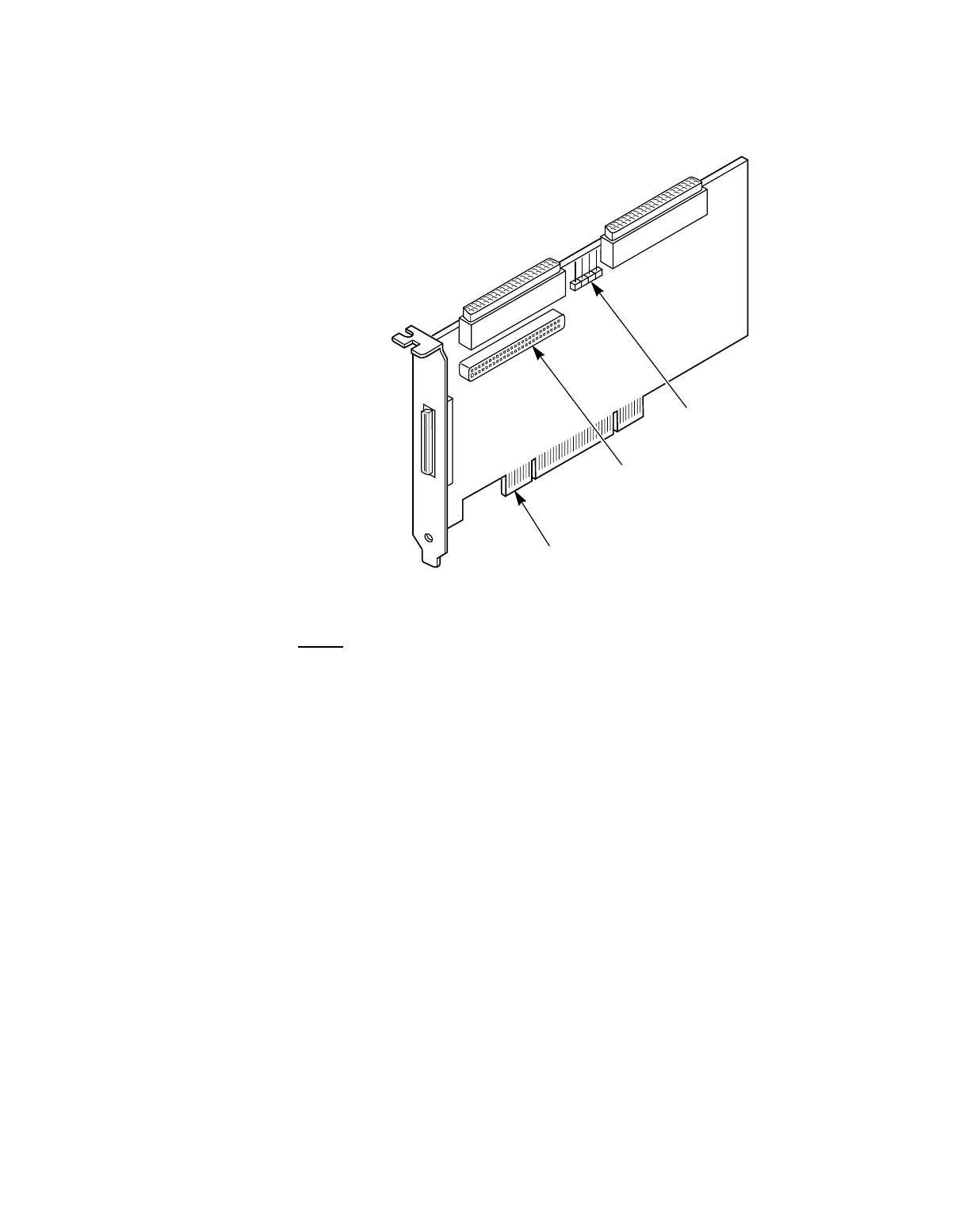

Figure 2.1 Hardware Connections for the Host Adapter
Note: Notice that the components on a Ultra160 SCSI to PCI host
adapter face the opposite way from non-PCI adapter
boards you may have in your system. This is correct. The
board is keyed to go in only one way.
Step 4. Secure the bracket with the bracket screw before making the
internal and external SCSI bus connections. Figure 2.2 shows
an example of how to insert your host adapter. All LSI Logic
Ultra160 SCSI to PCI host adapters require a PCI slot that
allows bus master operation.
J5
Internal High Density
SCSI Connector
J2
Internal High Density
SCSI Connector
J3
External High Density
SCSI Connector
J1
Edge Connector
J6
J4
Internal Low Density
SCSI Connector
Channel B 68-Pin
Channel A 68-Pin
Channel A 50-Pin
Ultra160 SCSI PCI Bus
Channel A 50-Pin
Busy LED
Connector
