2-14 Installing the LSI21003
Step 2. Plug the 50-pin high density connector on the other end of the
shielded external SCSI cable into the SCSI connector on the
external SCSI device. An example of this connection is shown
in Figure 2.10.

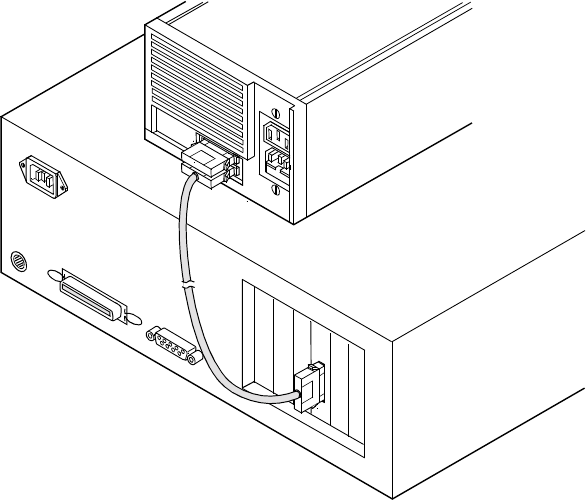

Figure 2.10 External Cable to External SCSI Device
If this is the only external SCSI device on your system, proceed
to Section 2.2.4, “SCSI Bus Termination,” page 2-15, for
termination instructions. If you have multiple external devices,
proceed to page 2-15.
