Detailed Installation Procedure 2-9
Step 2. Plug the other end of the cable into the connector on the
internal SCSI device.
An example of this connection appears in Figure 2.5.

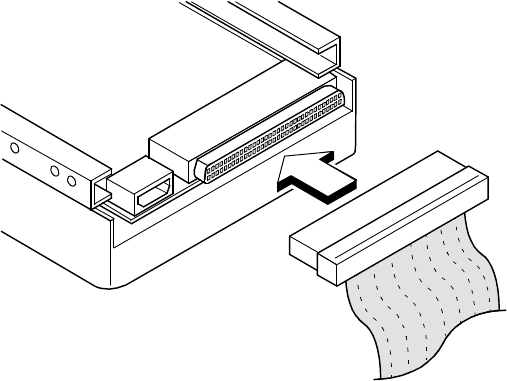

Figure 2.5 Internal SCSI Ribbon Cable to Internal SCSI Device
Connection
If this is the only internal device on the bus, proceed to Step 4.
If you have more than one internal device to connect, use an
internal SCSI ribbon cable with the required number of
connectors attached along its length and proceed to Step 3.
