User's Manual

NOTICE
The antenna itself can do 0 to 90 deg mechanical bending and self rotating in 360 deg to get
different bending directions. (See the diagram above)
Wall / partition mount (Antenna base with magnet embedded)
For another specific usage of the antenna deployment, you can install the antenna onto the
wall with attached screws, or attach to office partitions with the magnet design. The cable
deployment can go UPWARDS or DOWNWARDS based on the locations of your wireless
devices.
PLEASE NOTICE THE INSTALLATION STEPS BELOW BEFORE YOU
START TO DRILL HOLES ON THE WALL FOR WALL MOUNT.

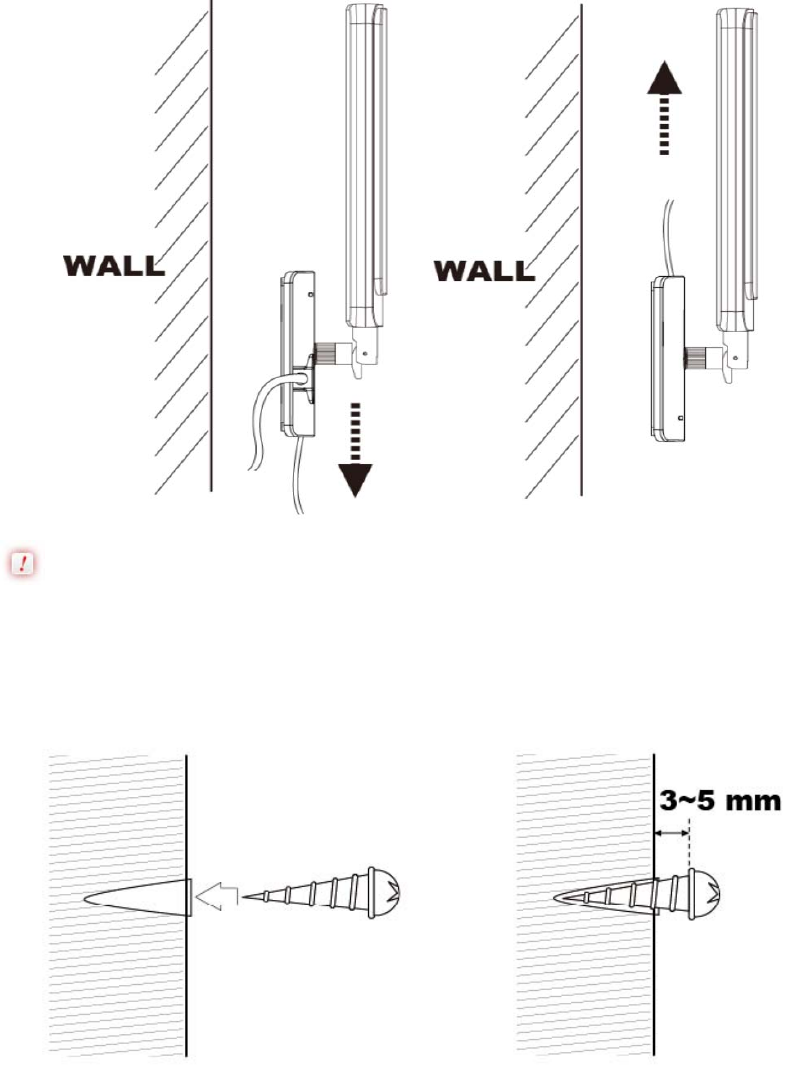

About the screws
Lock the screw tightly but remember to keep some free spaces left (about 3 to 5mm) like
diagram below; therefore the antenna can be hanged onto the wall with both the screws.
The direction of antenna stand decides where the cable goes.
