User's Manual

Introduction
-9-

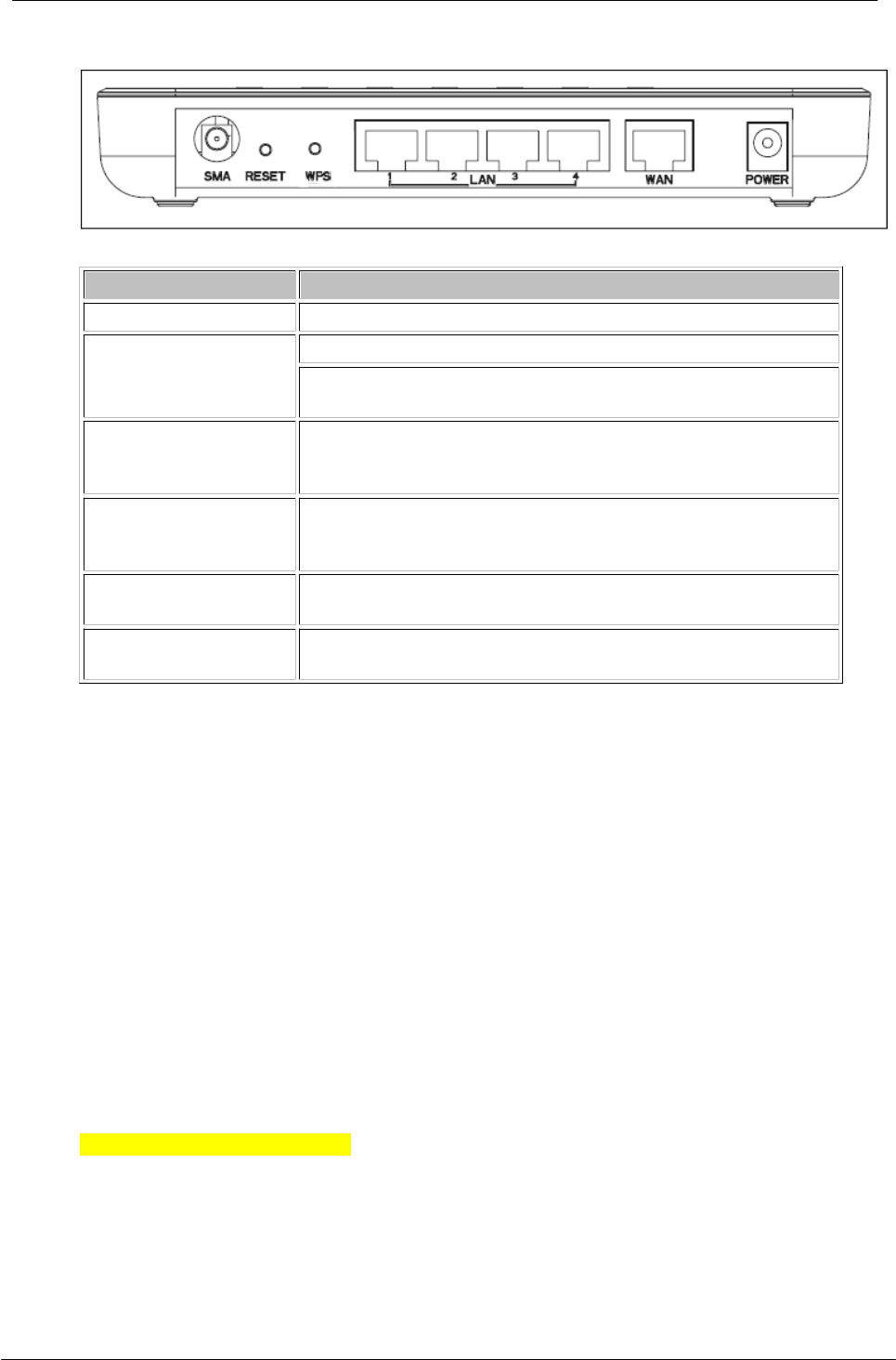

2.5 Rear Panel Description
Interfaces
Description
Antenna (Fixed / SMA)
The Wireless LAN Antenna.
Power
The power jack allows an external DC power supply connection.
The external DC adaptor provide adaptive power requirement to the
WLAN Broadband Router.
LAN
The RJ-45 sockets allow LAN connection through Category 5
cables. Support auto-sensing on 10/100M speed and half/ full
duplex; comply with IEEE 802.3/ 802.3u respectively.
WAN
The RJ-45 socket allows WAN connection through a Category 5
cable. Support auto-sensing on 10/100M speed and half/ full
duplex; comply with IEEE 802.3/ 802.3u respectively.
Reset
Push continually the reset button 5 ~ 10 seconds to reset the
configuration parameters to factory defaults.
WPS
Push the WPS button implementation to reduce the network
configuration steps,and also easy to implement network security.
3 Installation
3.1 Hardware Installation
Step 1:
Place the Wireless LAN Broadband Router to the best optimum transmission location. The best
transmission location for your WLAN Broadband Router is usually at the geographic center of your
wireless network, with line of sign to all of your mobile stations.
Step 2:
Connect the WLAN Broadband Router to your wired network. Connect the Ethernet WAN interface of
WLAN Broadband Router by category 5 Ethernet cable to your switch/ hub/ xDSL modem or cable
modem. A straight-through Ethernet cable with appropriate cable length is needed.
Step 3:
Supply DC power to the WLAN Broadband Router. Use only the AC/DC power adapter supplied with
the WLAN Broadband Router; it maybe occur damage by using a different type of power adapter.
The hardware installation finished.
