- Configuration examples
Configuration examples
-65-
WLAN configuration:
SSID
AP
Channel Number
11
1.

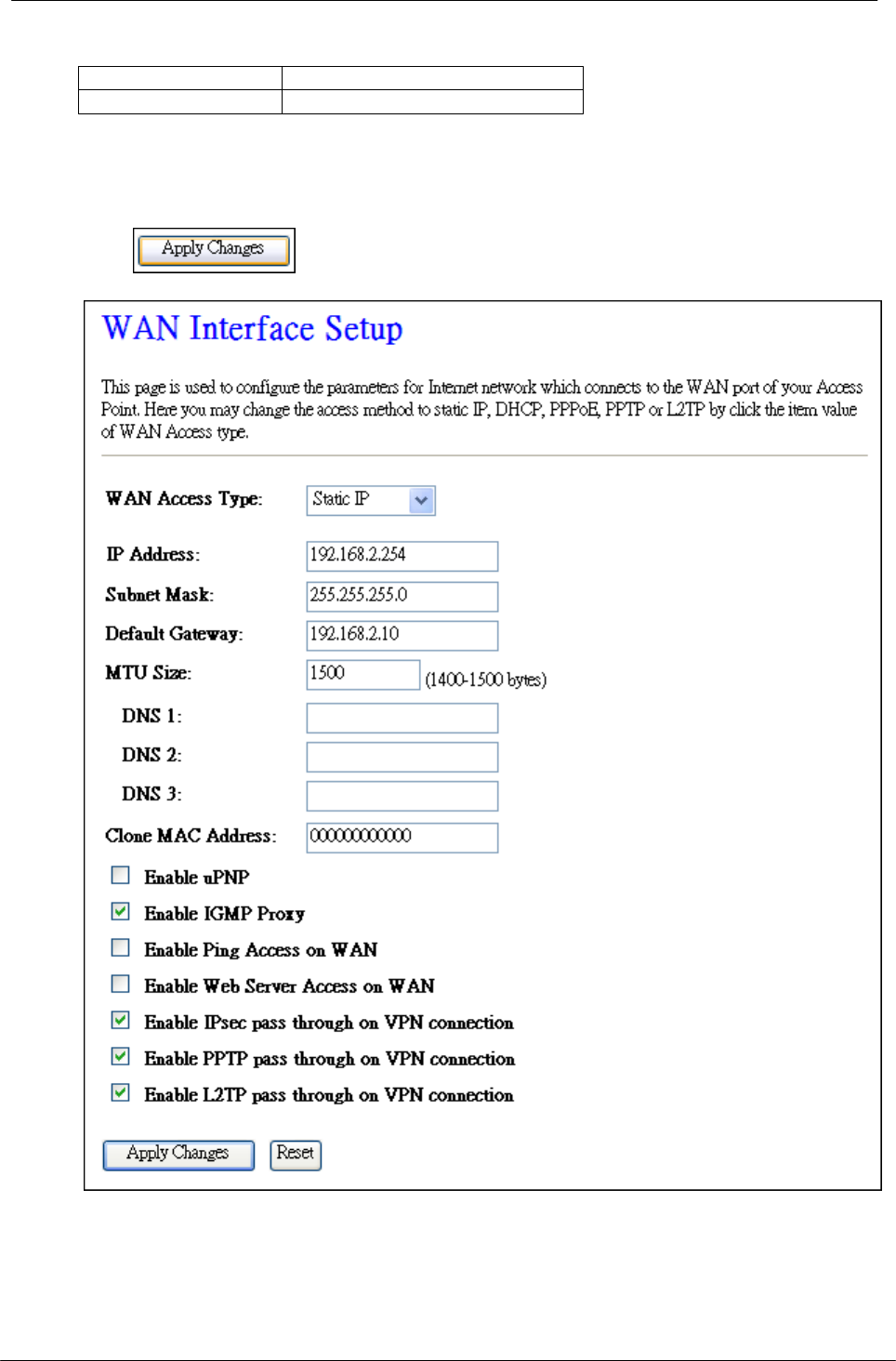

Configure the WAN interface:
Open WAN Interface Setup page, select Fixed IP then enter IP Address “192.168.2.254”, subnet
mask “255.255.255.0”, Default gateway “192.168.2.10”.
Press button to confirm the configuration setting.
2.
Configure the LAN interface:
Open LAN Interface Setup page, enter the IP Address “192.168.1.254”, Subnet Mask “255.255.255.0
”, enable DHCP Server, DHCP client range “192.168.1.100” to “192.168.1.200”.
