Software configuration
-29-
4.3.11 LAN Interface Setup

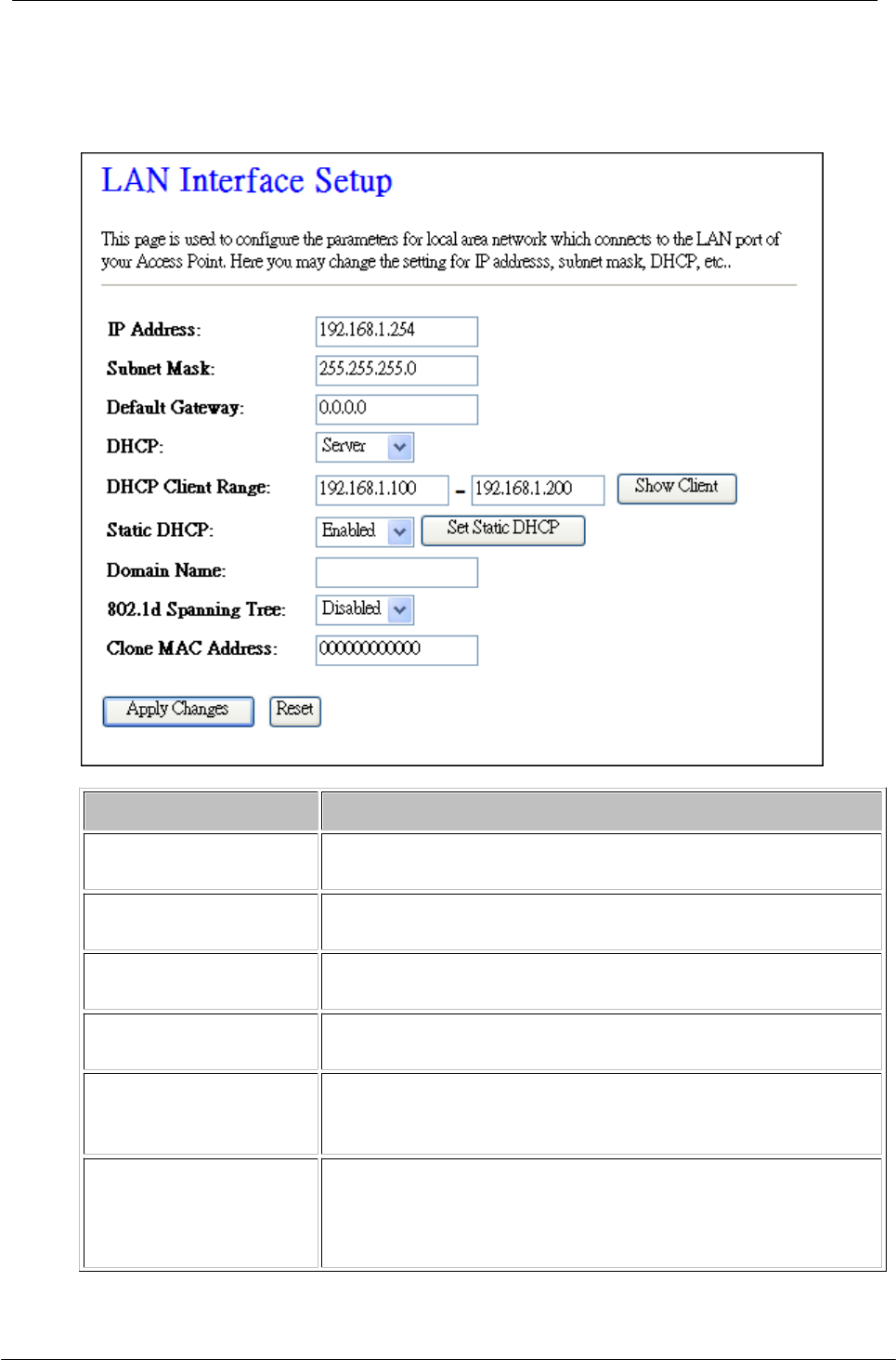

This page is used to configure the parameters for local area network that connects to the LAN ports
of your WLAN Broadband Router. Here you may change the setting for IP address, subnet mask,
DHCP, etc.
Item
Description
IP Address
Fill in the IP address of LAN interfaces of this WLAN
Access Point.
Subnet Mask
Fill in the subnet mask of LAN interfaces of this WLAN
Access Point.
Default Gateway
Fill in the default gateway for LAN interfaces out going
data packets.
DHCP
Click to select Disabled, Client or Server in different
operation mode of wireless Access Point.
DHCP Client Range
Fill in the start IP address and end IP address to allocate
a range of IP addresses; client with DHCP function set
will be assigned an IP address from the range.
Show Client
Click to open the Active DHCP Client Table window that
shows the active clients with their assigned IP address,
MAC address and time expired information. [Server
mode only]
