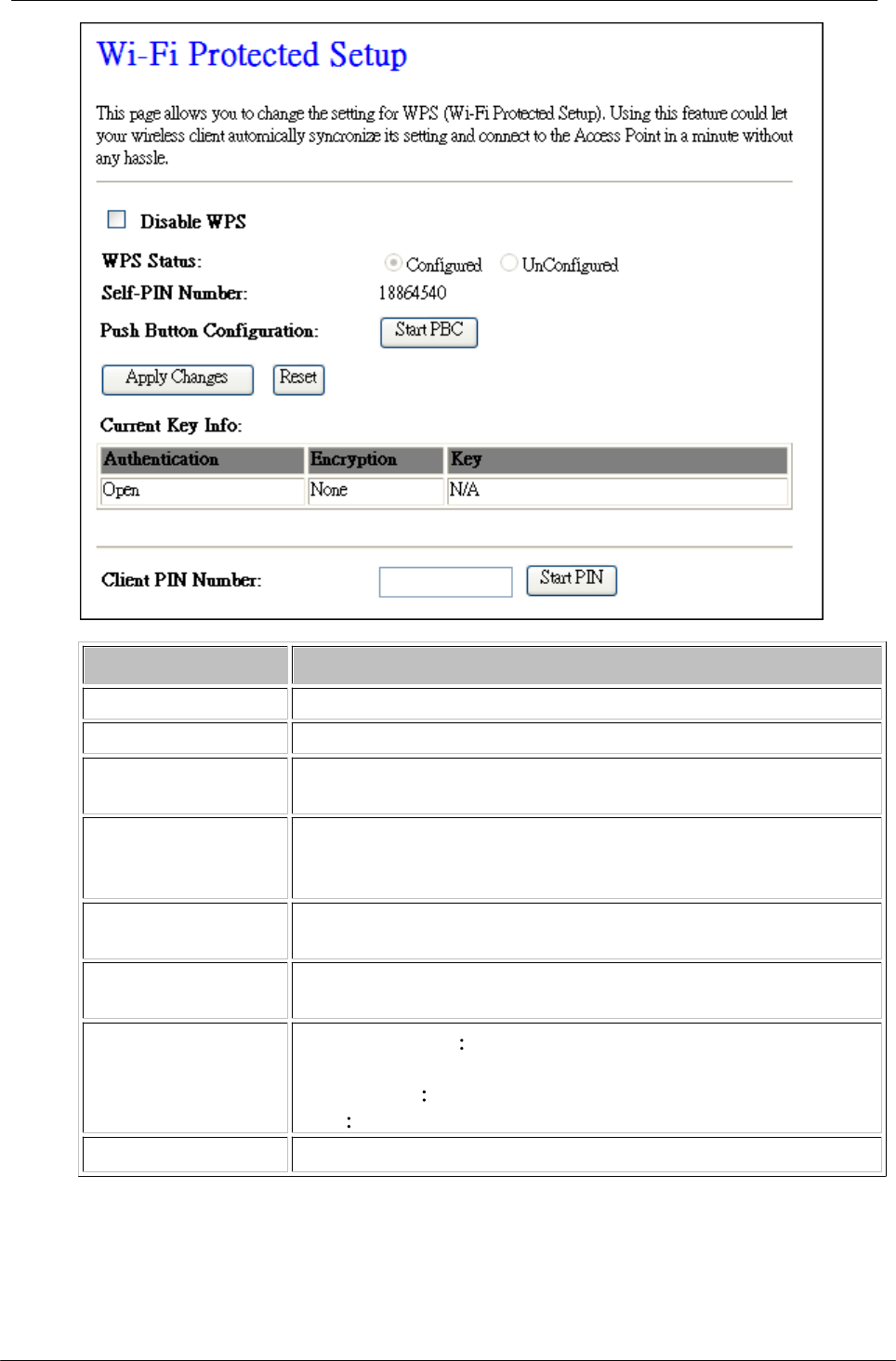

Item
Description
Disable WPS
Click on to disable the Wi-Fi Protected Setup function.
WPS Status
Show WPS status is Configured or UnConfigured.
Self-PIN Number
Fill in the PIN Number of AP to register the wireless
distribution system access capability.
Push Button
Configuration
The Start PBC button provides tool to scan the wireless
network. If any Access Point or IBSS is found, you could
connect it automatically when client join PBC mode.
Apply Changes
Click the Apply Changes button to complete the new
configuration setting.
Reset
Click the Reset button to abort change and recover the
previous configuration setting.
Current Key Info
Authentication It shows the Authentication is opened or
closed.
Encryption It shows the Encryption mode.
Key It shows the Encryption key.
Client PIN Number
Fill in the Client PIN Number from your Client sites.
