4.3.8.2 WDS AP Table

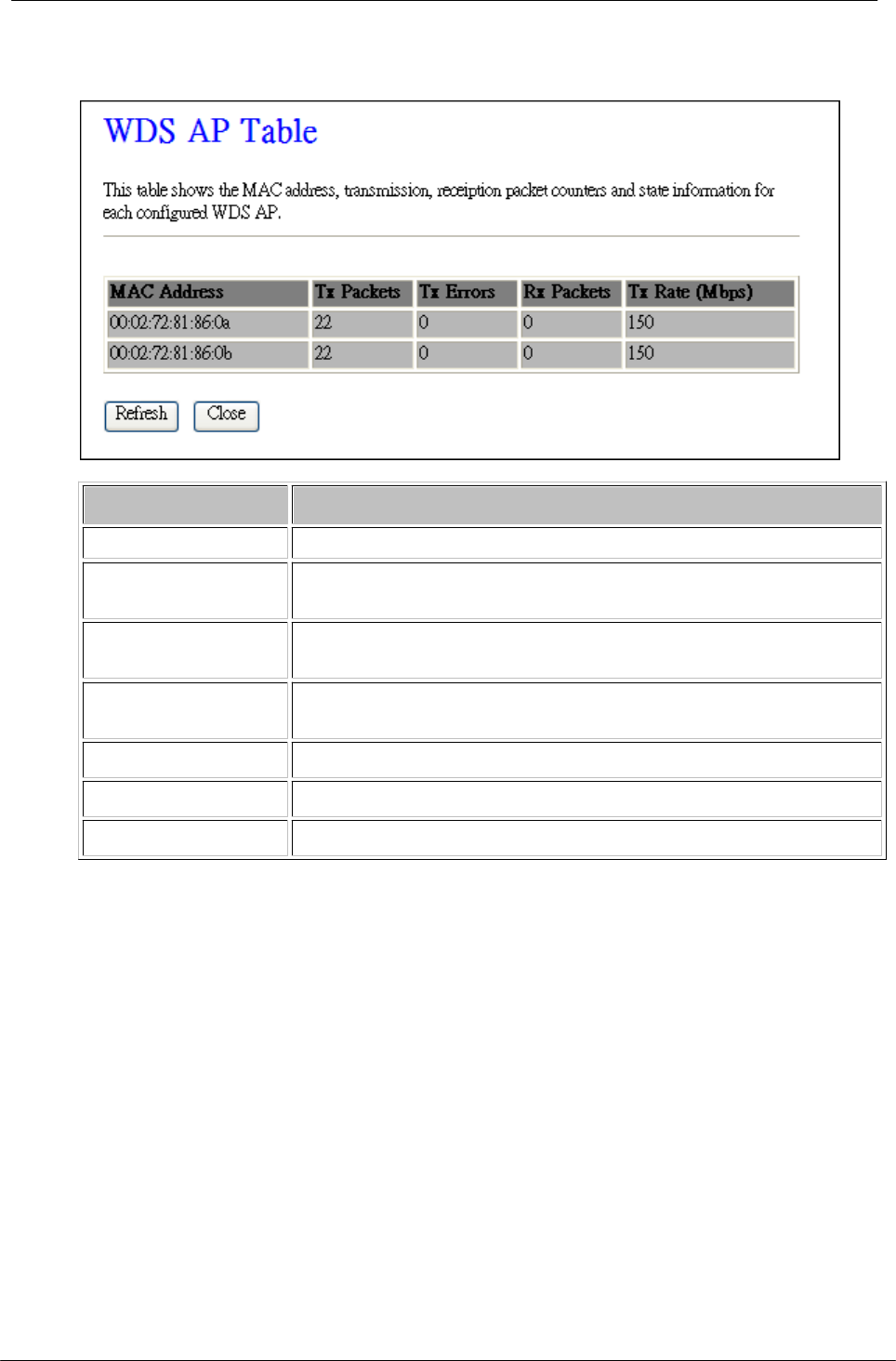

This page is used to show WDS statistics.
Item
Description
MAC Address
It shows the MAC Address within WDS.
Tx Packets
It shows the statistic count of sent packets on the wireless
LAN interface.
Tx Errors
It shows the statistic count of error sent packets on the
Wireless LAN interface.
Rx Packets
It shows the statistic count of received packets on the
wireless LAN interface.
Tx Rare (Mbps)
It shows the wireless link rate within WDS.
Refresh
Click to refresh the statistic counters on the screen.
Close
Click to close the current window.
