previous configuration setting.
Current Access
Control List
It shows the registered clients that are allowed to link to this
WLAN Broadband Router.
Delete Selected
Click to delete the selected clients that will be access right
removed from this WLAN Broadband Router.
Delete All
Click to delete all the registered clients from the access
allowed list.
Reset
Click the Reset button to abort change and recover the
previous configuration setting.

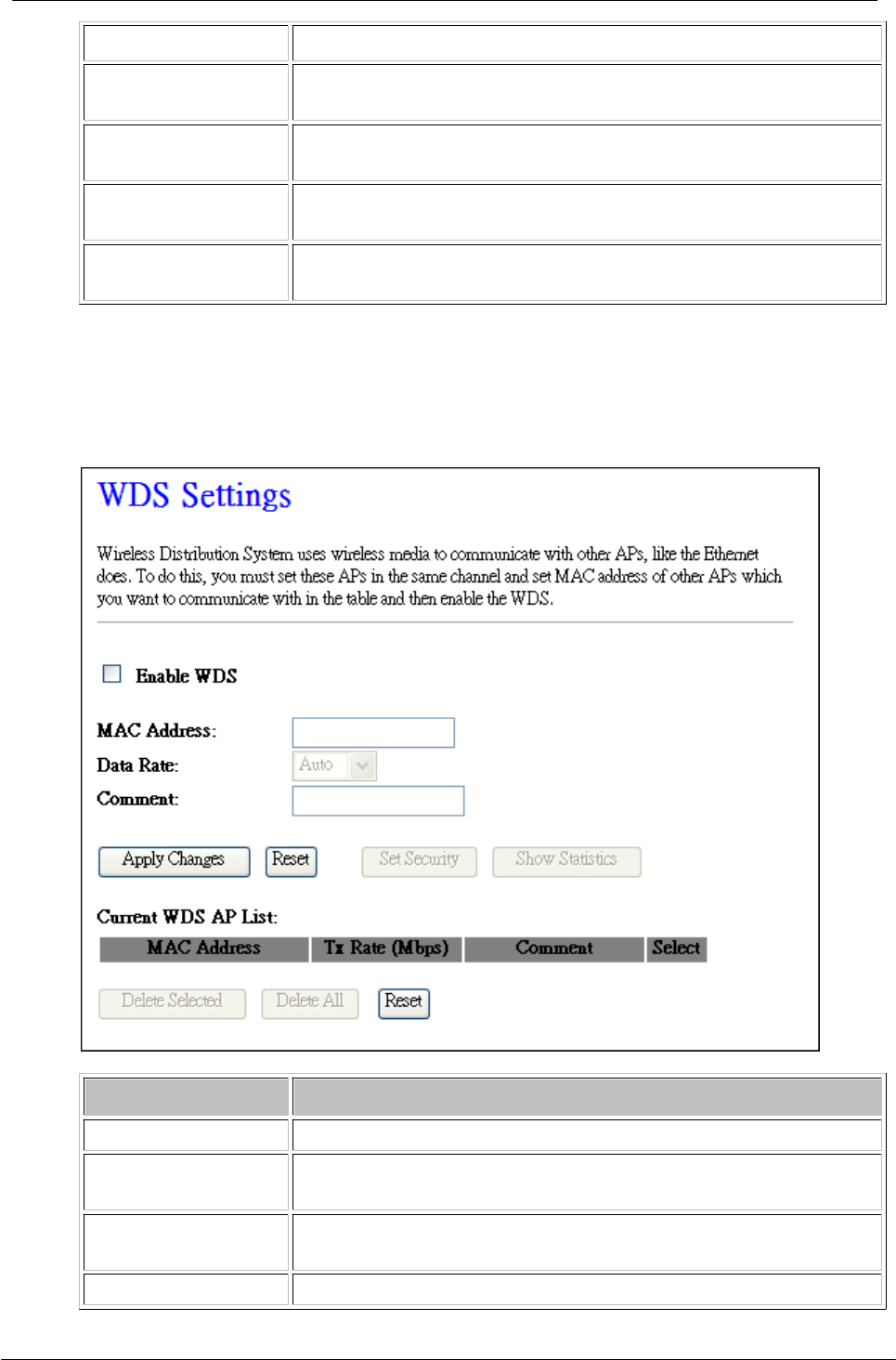

4.3.8 WDS Settings
Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet
does. To do this, you must set these APs in the same channel and set MAC address of other AP
that you want to communicate with in the table and then enable the WDS.
Item
Description
Enable WDS
Click the check box to enable wireless distribution system.
MAC Address
Fill in the MAC address of AP to register the wireless
distribution system access capability.
Data Rate
Select the transmission data rate from pull-down menu.
Data rate can be auto-select, 1M to 54Mbps or MCS.
Comment
Fill in the comment tag for the registered AP.
