Software configuration
-21-
Item
Description
Fragment Threshold
Set the data packet fragmentation threshold, value can be
written between 256 and 2346 bytes.
RTS Threshold
Set the RTS Threshold, value can be written between 0 and
2347 bytes.
Beacon Interval
Set the Beacon Interval, value can be written between 20 and
1024 ms.
Preamble Type
Click to select the Long Preamble or Short Preamble
support on the wireless data packet transmission.
IAPP
Click to enable or disable the IAPP function.
Protection
Protect 802.11n user priority.
Aggregation
Click to enable or disable the Aggregation function.
Short GI
Click to enable or disable the short Guard Intervals function.
RF Output Power
To adjust transmission power level.
Apply Changes
Click the Apply Changes button to complete the new
configuration setting.
Reset
Click the Reset button to abort change and recover the
previous configuration setting.

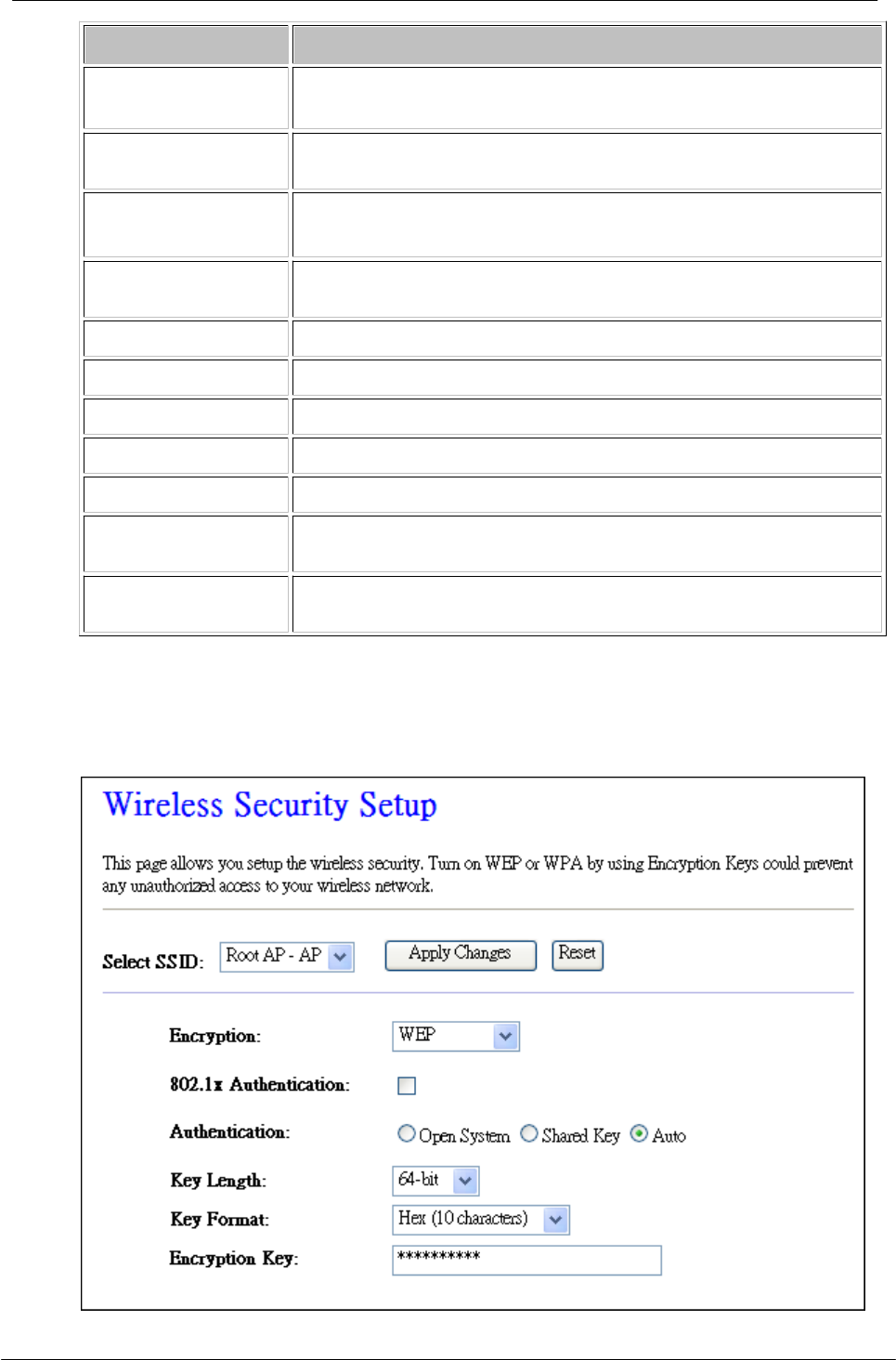

4.3.6 Wireless - Security Setup
This page allows you setup the wireless security. Turn on WEP, WPA, WPA2 by using encryption
keys could prevent any unauthorized access to your wireless network.
