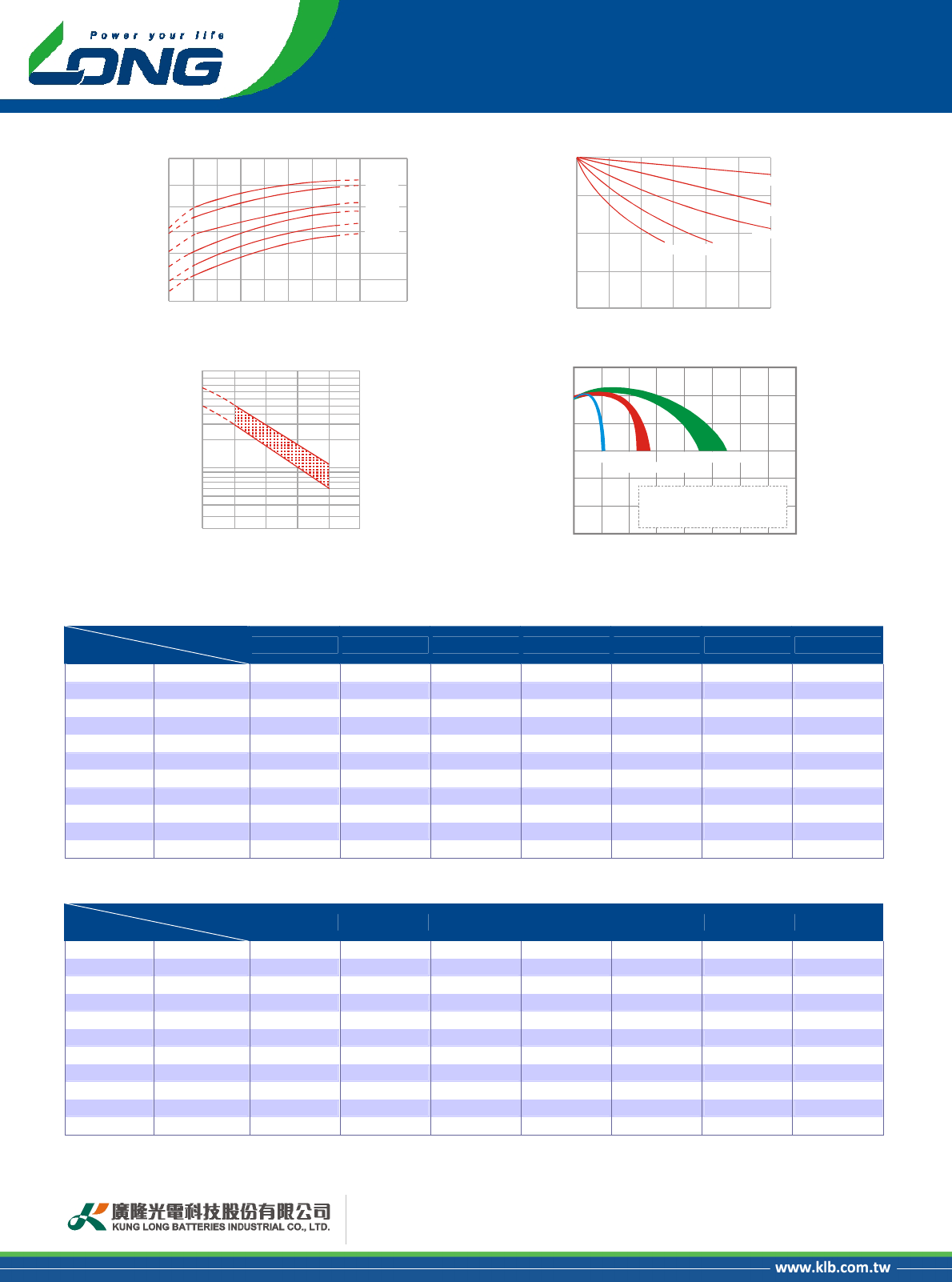

Data Sheet

- PERFORMANCE DATA
Discharge Rates in Watts to Various End Voltages at 25
℃(77℉)
End Voltage
Time
1.85V 1.80V 1.75V 1.70V 1.67V 1.65V 1.60V
5 min 7.18 7.82 8.27 8.65 8.80 8.98 9.28
10 min 4.62 5.00 5.30 5.52 5.58 5.67 5.77
15 min 3.65 3.87 4.05 4.20 4.25 4.32 4.38
30 min 2.15 2.25 2.32 2.37 2.38 2.42 2.45
60 min 1.32 1.39 1.43 1.47 1.48 1.50 1.52
120 min 0.747 0.808 0.847 0.875 0.887 0.900 0.915
180 min 0.533 0.573 0.602 0.623 0.633 0.645 0.657
240 min 0.435 0.470 0.495 0.513 0.520 0.528 0.537
300 min 0.420 0.442 0.457 0.468 0.472 0.477 0.482
600 min 0.220 0.233 0.243 0.250 0.252 0.255 0.258
1200 min 0.123 0.126 0.129 0.130 0.131 0.131 0.132
- Discharge Rates in Amperes to Various End Voltages at 25℃(77℉)
End Voltage
Time
1.85V 1.80V 1.75V 1.70V 1.67V 1.65V 1.60V
5 min 3.49 4.11 4.57 4.94 5.09 5.26 5.51
10 min 2.12 2.43 2.63 2.81 2.88 2.96 3.11
15 min 1.71 1.95 2.09 2.20 2.24 2.29 2.35
30 min 0.931 1.06 1.17 1.24 1.26 1.29 1.32
60 min 0.680 0.716 0.735 0.759 0.765 0.772 0.779
120 min 0.392 0.415 0.429 0.440 0.444 0.449 0.456
180 min 0.272 0.291 0.302 0.311 0.314 0.318 0.324
240 min 0.223 0.238 0.247 0.254 0.257 0.260 0.264
300 min 0.207 0.219 0.226 0.231 0.233 0.236 0.238
600 min 0.112 0.117 0.121 0.124 0.125 0.126 0.127
1200 min 0.0615 0.0624 0.0631 0.0637 0.0639 0.0642 0.0646
All data on the spec. sheet is an average value:
The tolerance range : X<6min(+15%~-15%), 6min≦X<10min(+12%~-12%),10min ≦X < 60min(+8% ~-8%), X≧60min(+5%~-5%)
211016-1F
Head Quarter Service - TEL: [phone] FAX: [phone] E-mail: [e-mail]
USA Customer Service - TEL: [phone] FAX: [phone] E-mail: [e-mail]
Vietnam Customer Service - TEL: [phone] FAX: [phone] E-mail: [e-mail]
Contents in this data sheet are subject to change for improvement without prior notice to users. For clarifications and updated information, please contact us.
W
P1.2-6
-20 -10 0 10 20 30 40 50 ℃
-4 14 32 50 68 86 104 122 ℉
Temperature
Effect of Temperature on Capacity 25 (77 ) ℃℉
0
20
40
60
80
100
120
C
a
p
a
c
i
t
y
%
0.05CA
0.1CA
0.25CA
0.6CA
1CA
2CA
40 (104 ) ℃℉ 30 (86 ) ℃℉
20 (68 ) ℃℉
10 (50 ) ℃℉
0(32) ℃℉
Capacity Retention Characteristic
Storage Time (months)
Re
m
aining Capacity
369121518
0
25
50
75
100
(%)
Trickle (or float) Service Lif
e
Ambient Temperature
L
i
f
e
(
y
e
a
r
s
)
0.5
30 40 50 ( )
℃
68 86 104 122 ( ) ℉
2
5
10
20
3
0 200 400 600 800 1000 1200 1400 1600
20
40
60
80
100
120
C
a
p
a
c
i
t
y
%
Number of Cycles (times)
Cycle Service Lif
e
(1) Discharge : 0.17CA
(2) Charge : CV 2.4V/cell 16H Imax 0.3CA
(3) End of life discharge voltage : 1.65 Vpc
(4) Temperature : 25 2
＊
±℃
Discharge Depth 100%
Discharge Depth 50%
Discharge Depth 30%
