Owners manual

INS0068 Rev. 04/17/2017

Page 2

Fig. 6

Fig. 7

Fig. 8

GM LS1 Shown with Lokar Throttle Cable Bracket

GM 1988 and Earlier TPI shown with Lokar Tuned-Port Bracket

with Double Stud and Kickdown Cable

GM LT1 or LT4 shown with Lokar Throttle and Kickdown Cable Bracket

and Lokar Cruise Control Bracket

Fig. 2

Throttle

Body Fitting

1988 and Earlier GM TPI

Fig. 3

Fig. 5

Front

Firewall

Fitting

Firewall

Throttle Cable

Cruise Control Cable

Kickdown

Cable

Adjuster

Nut

Engine

Compartment

Passenger

Compartment

Fig. 4

Front

Adjuster Nut

Rear

Adjuster Nut

Throttle Cable Bracket

(Varies by Application, Sold Separately)

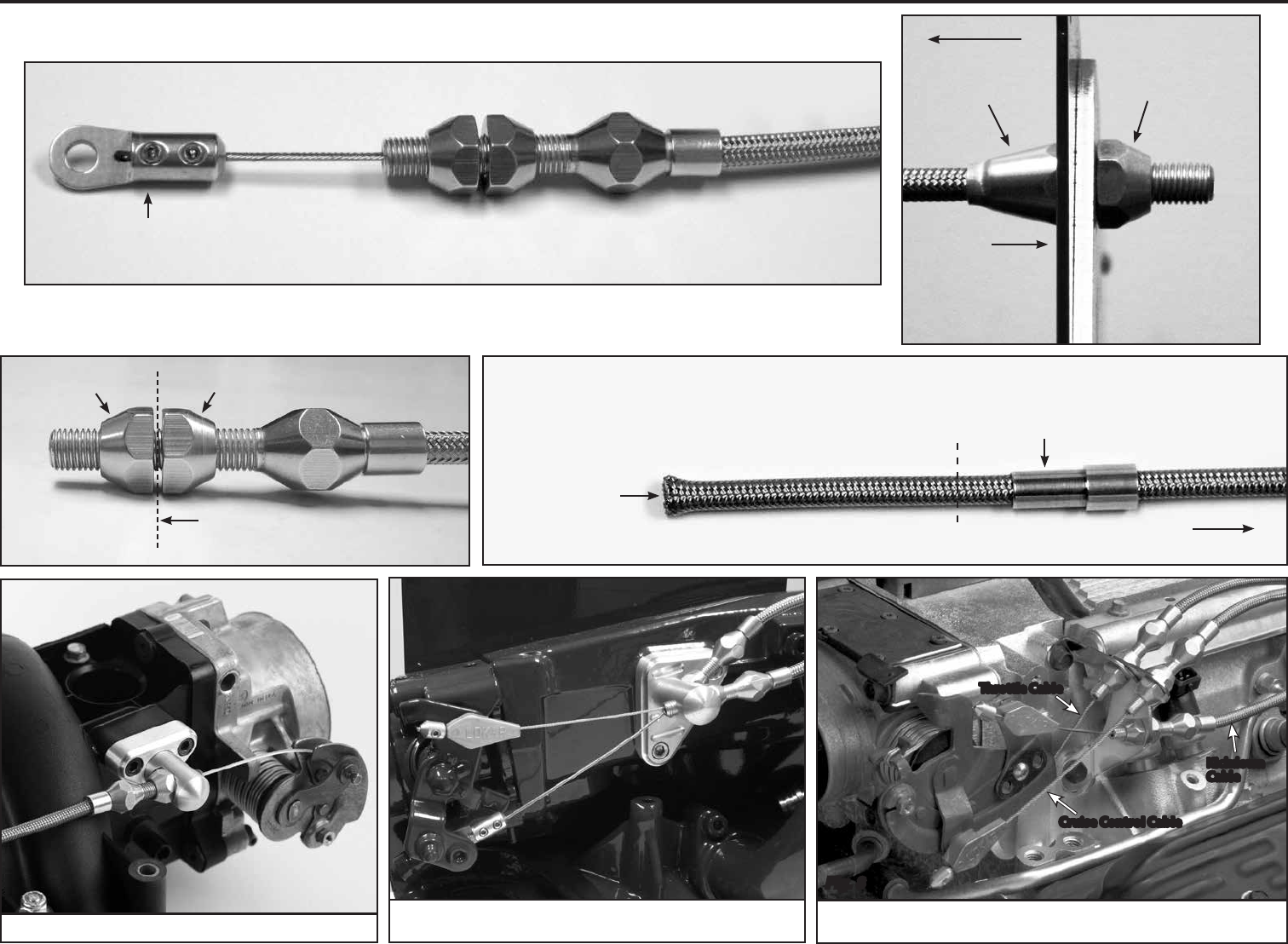

EFI Throttle Cable Installation Instructions for GM TPI, LT1, LT4, Vortec, LS1, Ram Jet 350, Ford EFI 1994-95 and Modular Engines

With the braided stainless steel Cable Housing, slide the Ferrule

down the Housing past the cut line before cutting the Housing.

Cut Line

Firewall

Ferrule slid past the cut line

Inner Wire removed

before cutting the

housing
