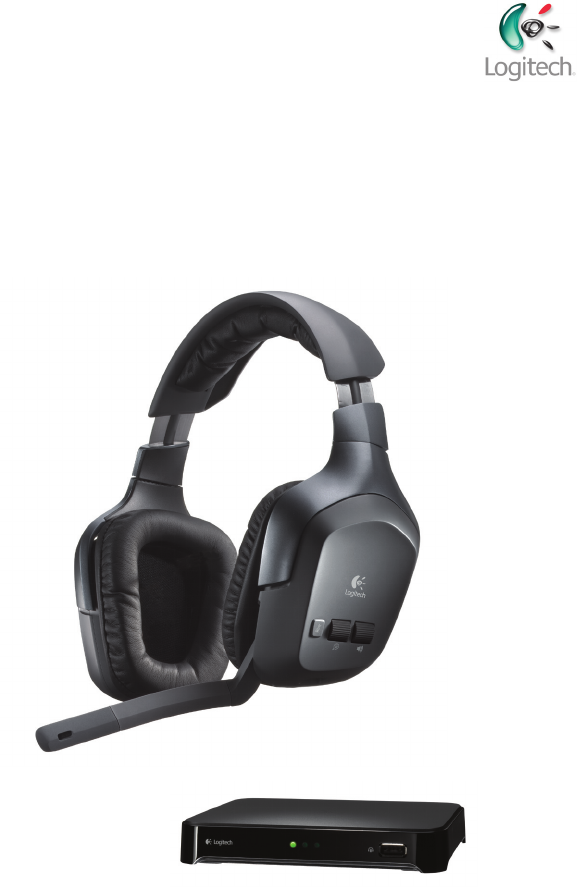

Getting started with Première utilisation Logitech® Wireless Headset F540
Languages English . . . . . . . . . . . . . . . 3 Español . . . . . . . . . . . . . . 25 Français . . . . . . . . . . . . . . 47 Português . . . . . . . . . . . . . .
Logitech® Wireless Headset F540 Contents Package contents . . . . . . . . . . . . . . . . 4 Powering up the wireless base station . . . . . . . . . . 5 Charging the headset . . . . . . . . . . . . . . . 5 F540 setup with PS3™ . . . . . . . . . . . . . . .
Getting started with Package contents with started Getting utilisation adset F540 Première® Wireless He Logitech 1. Headset F540 5. Mini-USB PS3 voice cable 2. Wireless base station 6. Micro-USB headset charging cable 3. RCA-to-RCA passthrough cable 7. 4. 2.5 mm Xbox 360 voice cable 8.
Logitech® Wireless Headset F540 Powering up the wireless base station Using the included power cable, plug your wireless base station into an available AC outlet to power up the unit. Logitech wireless base station Power cable Xbox 360 Charging the headset Your Logitech Wireless Headset F540 is rechargeable and should have some charge when you take it out of the package. It’s recommended to charge the headset fully before use. • To charge the headset, use the included headset charging cable.
Getting started with F540 setup with PS3™ To use all the features of the Headset F540, you’ll need to make two connections: one for game audio and one for voice chat. You make the game audio connection between the Logitech wireless base station and the PS3. Or you can connect the wireless base station to your primary audio system (television, home theater system, AV receiver, or audio switch).
Logitech® Wireless Headset F540 If you use HDMI or digital optical for PS3 audio Xbox 360 Logitech wireless base station PS3 Xbox 360 PS3 AV cable Figure 1 If you are using an HDMI or digital optical cable to connect your PS3 to your primary audio system, use the PS3 AV cable (recommended) setup below or the alternative shown in Figure 3. Recommended setup for the wireless base station (Fig. 1) 1. Connect the PS3 AV cable (typically included with the PS3) to the back of the PS3. 2.
Getting started with If you use PS3 analog AV cable for audio Logitech wireless base station Xbox 360 Primary audio system Xbox 360 Logitech RCA-to-RCA passthrough cable PS3 PS3 AV cable Figure 2 If you are using the red and white stereo connectors of the PS3 AV cable to connect your PS3 to your primary audio system, use the following wireless base station setup or the alternative on page 9. Recommended setup for the wireless base station (Fig. 2) 1.
Logitech® Wireless Headset F540 Alternative: If you want to use your audio out from your TV or AV receiver Logitech wireless base station Xbox 360 Primary audio system Xbox 360 Logitech RCA-to-RCA passthrough cable Figure 3 If the recommended steps are inconvenient or don’t work on your system setup, please follow the steps below to connect the wireless base station to your primary audio system: 1.
Getting started with Connecting PS3 voice chat 1. To experience voice chat in PS3 games, first use the Logitech Mini-USB PS3 voice cable to connect the wireless base station to the PS3, as shown in the picture below. 2. Select the microphone as the active audio input device on PS3. In the PS3 system XMediaBar™, navigate to • Settings • Accessory Settings • Audio Device Settings In the Input device and Output device fields, select Logitech Wireless Headset as the active device.
Logitech® Wireless Headset F540 F540 setup with Xbox 360® To use all the features of the Headset F540, you’ll need to make two connections: one for game audio and one for voice chat. You make the game audio connection between the Logitech® Headset F540 and the Xbox 360. Or you can connect the wireless base station to your primary audio system (television, home theater system, AV receiver, or audio switch).
Getting started with If you use HDMI or digital optical for Xbox 360 audio Xbox 360 Logitech wireless base station Xbox 360 Xbox 360 Xbox 360 component HD AV cable Figure 4 If you are using an HDMI or digital optical cable to connect your Xbox 360 to your primary audio system, use the Xbox 360 component HD AV cable (recommended) to connect the wireless base station to your Xbox 360/primary audio system, or the alternative setup on page 14. Recommended wireless base station setup (Fig.4) 1.
Logitech® Wireless Headset F540 If you use the red/white RCA connectors on the Xbox 360 AV cable for audio Logitech wireless base station Xbox 360 Primary audio system Xbox 360 Logitech RCA-to-RCA passthrough cable Xbox 360 Xbox 360 component HD AV cable Figure 5 If you are using the red and white RCA analog connectors of the Xbox 360 component HD AV cable to connect your Xbox 360 to your primary audio system, use one of the following wireless base station setups in this section.
Getting started with Alternative Xbox 360 wireless base station setup Logitech wireless base station Xbox 360 Primary audio system Xbox 360 Logitech RCA-to-RCA passthrough cable Figure 6 If the previous recommended connections are inconvenient or don’t work for your system setup, please follow the steps below to connect the wireless base station to your primary audio system: 1.
Logitech® Wireless Headset F540 Connecting Xbox 360 voice chat To experience voice chat in Xbox 360 games, connect the Headset F540 directly to an Xbox 360 game controller using the Logitech 2.5 mm Xbox 360 voice cable, as shown in the picture below. To get the best voice chat performance, including using the voice audio volume roller on the headset, we recommend you adjust your Xbox 360 system settings as described: 1.
Getting started with Connecting other AV sources You can use the Headset F540 to listen to a variety of audio-video sources, including TVs, DVD players, MP3 players, and more. To listen to any of these devices, use standard RCA or 3.5 mm cables (not included) to connect these devices to the back of the wireless base station. Stereo AV devices can be connected here using RCA cables 1 2 PS3 Xbox 360 3 AUX IN Wireless base station AV devices (e.g., MP3 player) using a 3.
Logitech® Wireless Headset F540 Using the headset After setting up the wireless base station, you are now ready to use the Headset F540. This section tells you how by covering headset features, controls, and adjustments. Features 1. Noise-canceling microphone 10. Game audio volume roller 2. Microphone mute light 11. Power button 3. Flexible, rotating microphone boom 12. Wireless connection status light 4. Precision headband adjustment 13. Input selector 5. Comfort headband pad 14.
