Operation Manual

GPS Walker User Manual
11
1. Select Log Interval in the GPS menu, and then select an interval to set the time
interval for GPS position logging.
2. Select Mini Speed in the GPS menu, and then select a speed to set a value as the
minimum speed for position Logging.
3. The system will mark trace log automatically in the interval when the current speed is
above the min speed. The data is logged in standard NMEA format (GPS_WPT.BIN) in
folder GPS_DATA on the internal flash of the GPS device.
Going to the marked waypoint

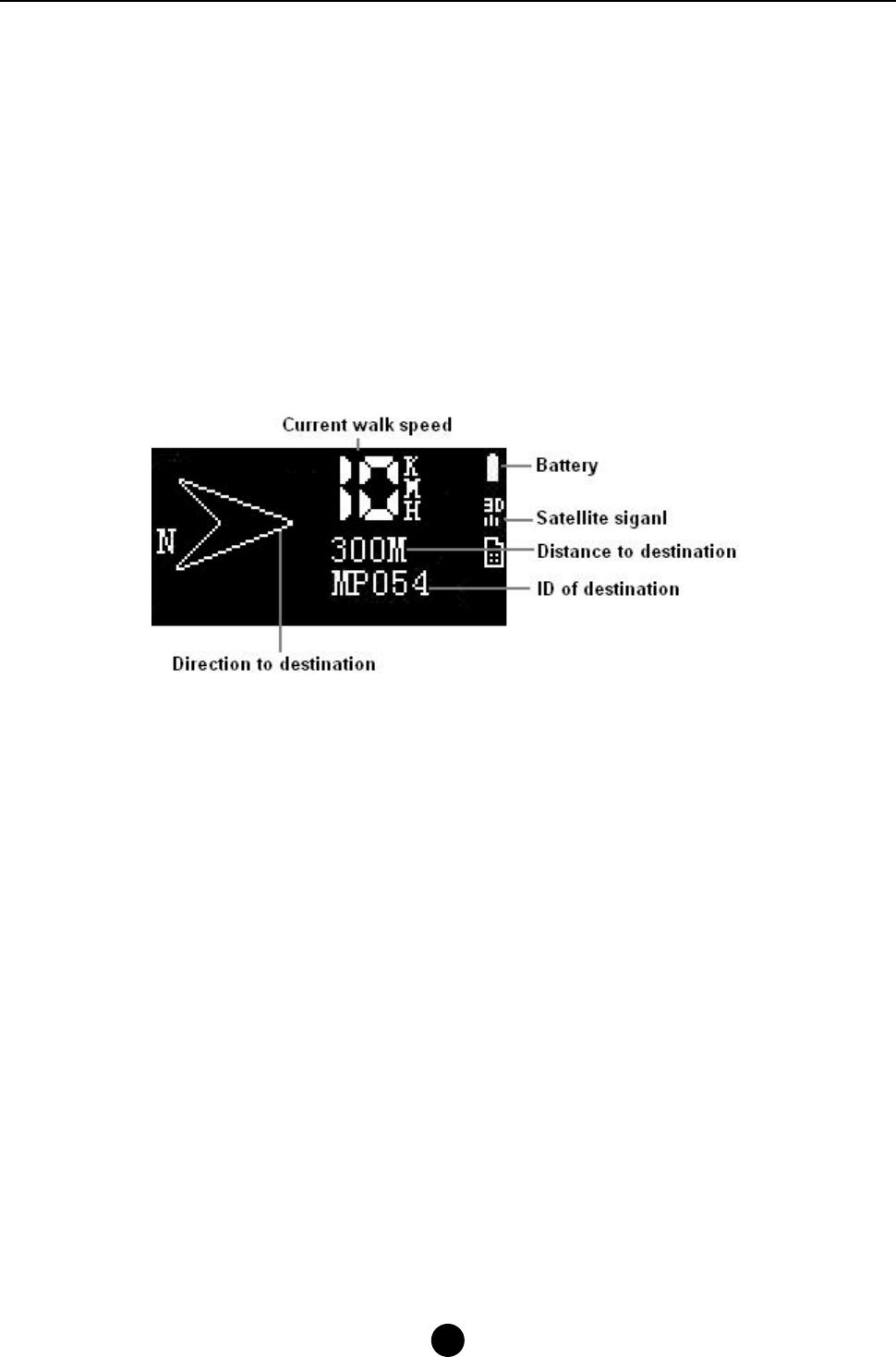

Select Select Mark to select a history waypoint or set a waypoint as the destination in
Compass page. Follow the compass; it will guide you to the destination.
Tip: Push the control key up to select the latest waypoint quickly.
Viewing your trace on Google map
1. First we need records NMEA position data from the GPS data logger.
2. Select GPS in main menu, select Log interval and proper Mini Speed from the
submenu to log the position where you are. You can mark other tracks by the same
way. After the tracks have been marked, the device will create a record file
“GPS_WPT.bin” on its internal flash.
3. Connect your device to a computer.
4. Run the software “MINILINK.exe”. The screen shows the following information and the
number of GPS log files are automatically shown.
