Bonnet

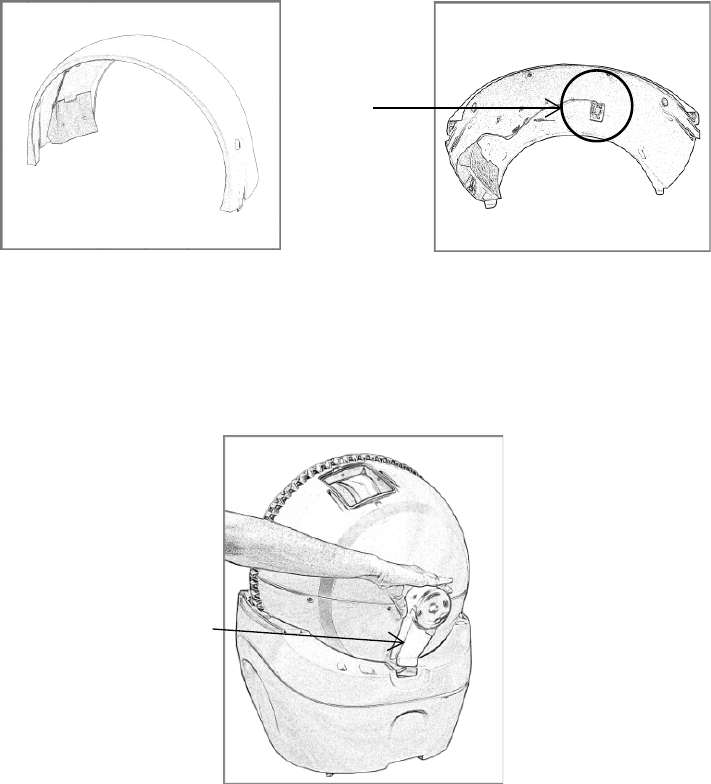

The Bonnet functions as a cover and guard for the Waste
Port as the Globe rotates. The Bonnet also provides a mount
location for the Night Light, wires, and electrical terminals
that provide a low and safe 5VDC to the Night Light LED. The
Globe will not rotate without the Bonnet installed (see
Control
Panel - Indicator Lights
 Yellow Light Flashing , page 17).
See page 28-29 for assembly instructions.
Key
The Key is located at the back of the Globe. Position the Key
by snapping it into the pocket in the Base.
Underside of Bonnet
Night
Light
Key
