FEATURES & SPECIFICATIONS
INTENDED USE
The RSX LED flood family is designed to provide a long-lasting, energy-efficient solution for the
one-for-one replacement of existing metal halide or high pressure sodium lighting. The RSXF3 delivers
25,000 to 41,000 lumens and is ideal for replacing 400W to 100W HID pole-mounted luminaires in
parking lots and other area lighting applications.
CONSTRUCTION
The RSX LED flood luminaire features a rugged die-cast aluminum main body that uses heat-
dissipating fins and flow-through venting to provide optimal thermal management that both
enhances LED performance and extends component life. Integral adjustable slipfitter mounts on
a 2 3/8” OD tenon. The adjustable slip fitter has an integral junction box for easy installation. The
light engines and housing are sealed against moisture and environmental contaminants to IP66.
The low-profile design results in a low EPA, allowing pole optimization. All mountings are rated for
a 1.5 G vibration load per ANSI C136.31.
FINISH
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish
that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage
process ensures superior adhesion as well as a minimum finish thickness of 3 mils. The result is a
high-quality finish that is warrantied not to crack or peel.
OPTICS
Precision acrylic refractive lenses are engineered for superior application efficiency, distributing
the light to where it is needed most. Available in short and wide pattern distributions including
Wide Flood, Medium Flood, Narrow Flood, Spot, Narrow Spot and Area Wide/Forward.
ELECTRICAL
Light engine(s) configurations consist of high-efficacy LEDs mounted on metal-core circuit boards
and aluminum heat sinks to maximize heat dissipation. Light engines are IP66 rated. LED lumen
maintenance is >L92/100,000 hours. CCT’s of 3000K, 4000K and 5000K (minimum 70 CRI) are
available. Class 1 electronic drivers ensure system power factor >90% and THD <20%. Easily
serviceable 10kV surge protection device meets a minimum Category C Low operation (per ANSI/
IEEE C62.41.2).
STANDARD CONTROLS
The RSX LED flood luminaire has a wide assortment of control options. Dusk to dawn controls
include MVOLT and 347V button-type photocells and NEMA twist-lock photocell receptacles.
Integrated motion sensors with on-board photocells feature remote control sensor programing
and are suitable for mounting heights up to 40 feet.
nLIGHT AIR CONTROLS
The RSX LED flood luminaire is also available with nLight® AIR for the ultimate in wireless
control. This powerful controls platform provides out-of-the-box basic motion sensing
and photocontrol functionality and is suitable for mounting heights up to 40 feet. Once
commissioned using a smartphone and the easy-to-use CLAIRITY app, nLight AIR equipped
luminaries can be grouped, resulting in motion sensor and photocell group response without
the need for additional equipment. Scheduled dimming with motion sensor over-ride can be
achieved when used with the nLight Eclypse. Additional information about nLight Air can be
found here.
INSTALLATION
The integral “IS” mount offers an adjustable slipfitter that mounts on a 2 3/8” OD tenon.
The adjustable slip fitter has an integral junction box and offers easy installation, wiring and
distribution pattern aiming. IS adjustable slipfitter is not rated for tilting above 90° or mounting
within 4 feet of ground. Can be tilted up to 90° above horizontal.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. Suitable for wet locations. Rated for
-40°C minimum ambient. DesignLights Consortium® (DLC) Premium qualified product and
DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC
qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm
which versions are qualified.
WARRANTY
5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.

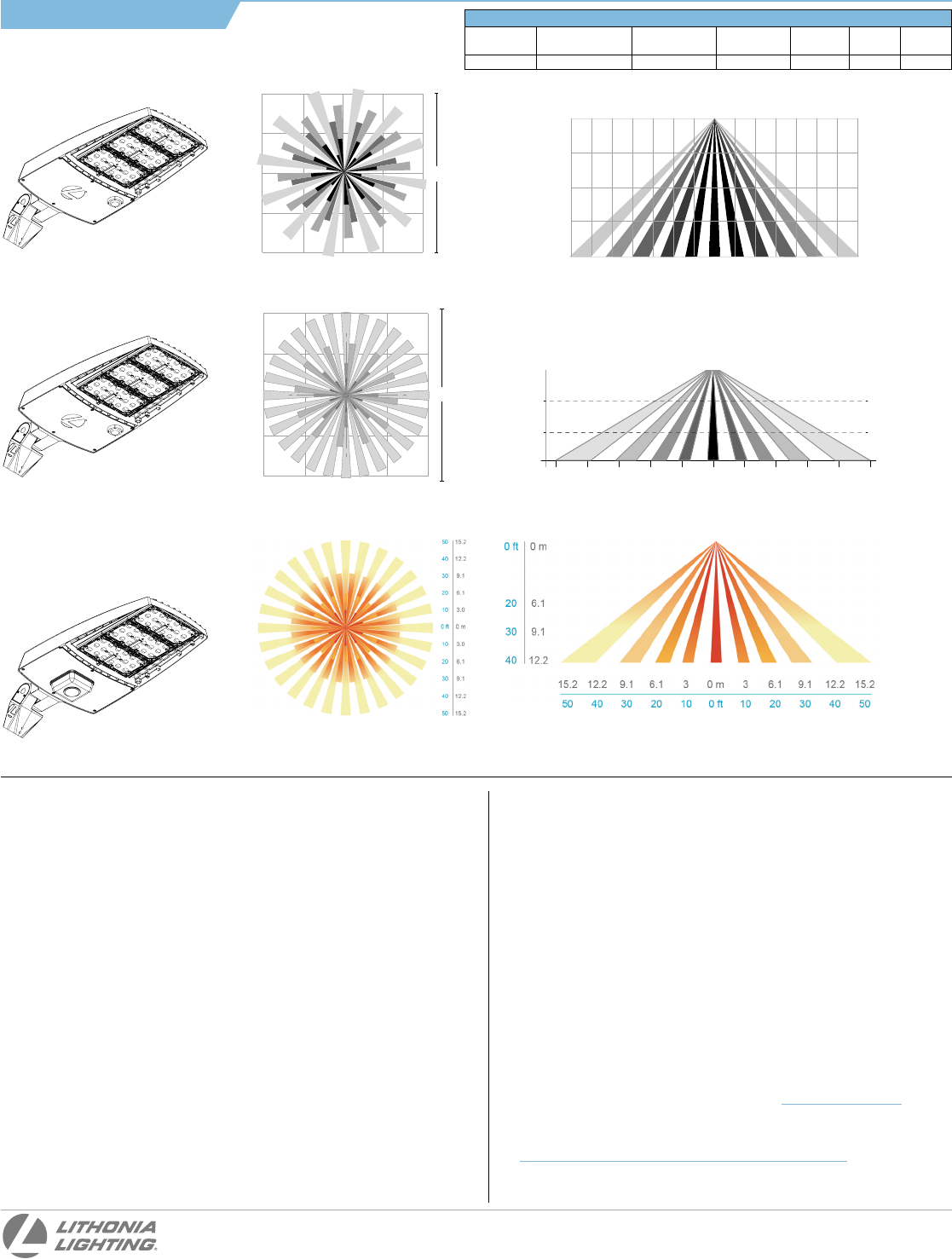

Sensor Coverage
Motion Sensor Default Settings (PIRS and PIRHS only)
Option
Dimmed State
High Level
(when triggered)
Photocell
Operation Dwell Time
Ramp-up
Time
Ramp-down
Time
PIRS or PIRHS Approx. 37% Output 100% Output Enabled @ 5FC 5 minutes 3 seconds
20 seconds
