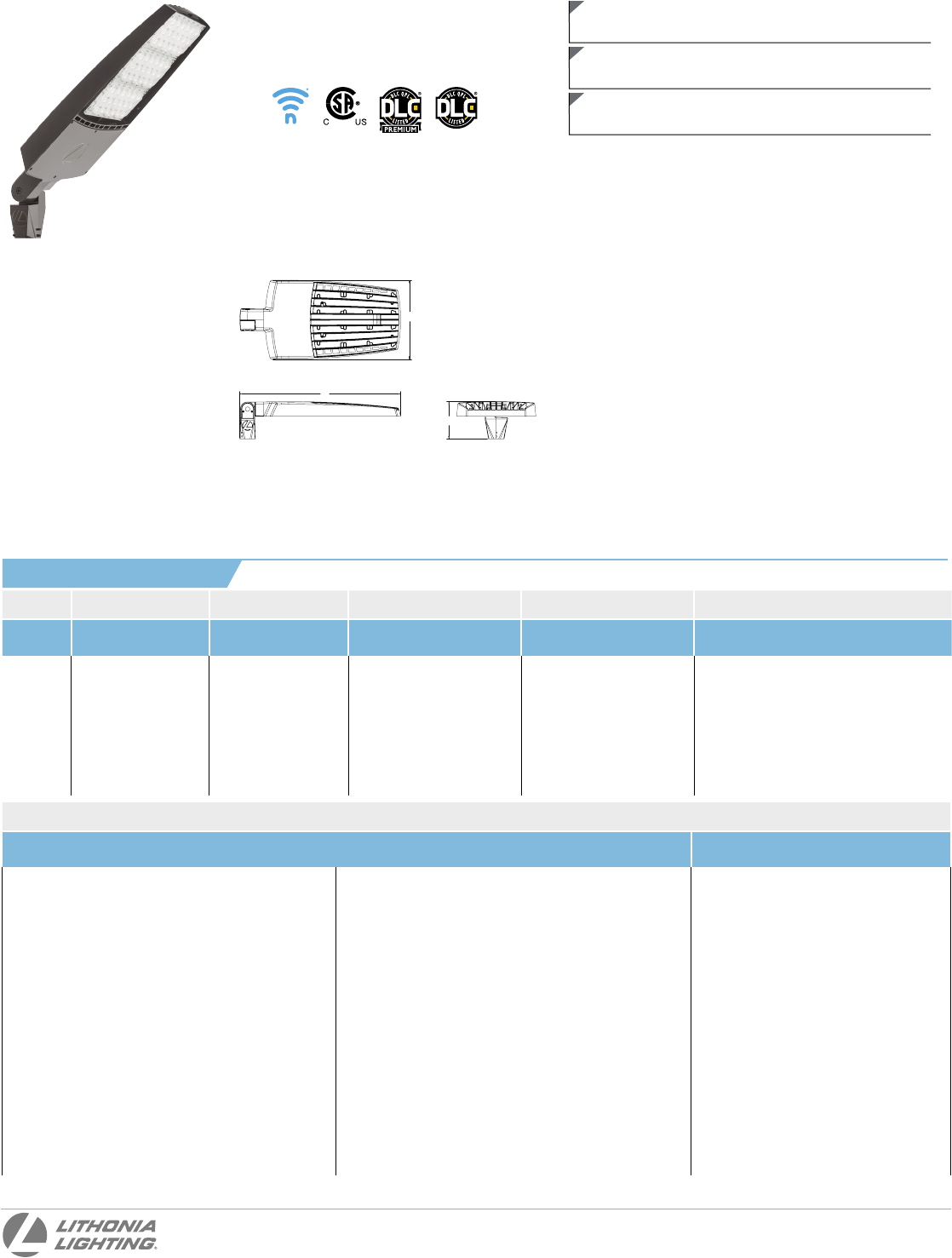

Specification

One Lithonia Way • Conyers, Georgia 30012 • Phone: [phone] • www.acuitybrands.com
© 2011-2018 Acuity Brands Lighting, Inc. All rights reserved.
Lithonia RSXF3 Flood LED
Rev. 12/13/18
Page 1 of 5
Catalog
Number
Notes
Type
Hit the Tab key or mouse over the page to see all interactive elements.
RSXF3 LED
Floodlight Luminaire
Specifications
Introduction
The new RSXF LED Flood family delivers maximum
value by providing significant energy savings, long
life and outstanding photometric performance at
an affordable price. The RSXF3 delivers 25,000 to
41,000 lumens allowing it to replace 400W to 1000W
HID luminaires.
The RSXF features an adjustable integral slip-fitter
that allows the luminaire to be mounted on a 2-3/8”
OD tenon. Integral cover/wire box serves as an
approved splice compartment allowing for fast, easy
mounting and wiring without opening the electrical
compartment.
EPA
(ft
2
@ 45° ):
3.7 ft
2
(0.3 m
2
)
Length: 32.8" (83.3 cm)
Width: 16.1” (40.9 cm)
Height:
3.0" (7.6 cm) Main Body
7.6” (19.3 cm ) Arm
Weight
(max):
42.0 lbs (19.1 kg)
Options Finish
Shipped Installed
PE Photocontrol, button style
5, 7
PEX Photocontrol external threaded, adjustable
6, 7
PER7 Seven-wire twist-lock receptacle only (no controls)
7, 8, 9
CE34 Conduit entry 3/4” NPT (Qty 2)
SF Single fuse (120, 277, 347)
3
DF Double fuse (208, 240, 480)
3
SPD20KV 20KV Surge pack (10KV standard)
FAO Field adjustable output
DMG 0-10v dimming wires pulled outside fixture (for use with an
external control, ordered separately)
Shipped Separately (requires some field assembly)
FV Full Visor (360° around light aperture)
UBV Upper/bottom visor
Shipped Installed
*Standalone Sensors Controls (factory default settings, see table page 5)
PIRS Motion/ambient sensor for 8-20’ mounting heights
7,13,14
PIRHS Motion/ambient sensor for 20-40’ mounting heights
7,13,14
*Networked Sensors/Controls
NL TAIR2 nLight AIR generation 2
10,14
PIRHN Networked, Bi-Level motion/ambient sensor (for use with NLTAIR2)
7,11,13,14
*Note: Sensor coverage pattern is affected when luminaire is tilted.
DDBXD Dark Bronze
DBLXD Black
DNAXD Natural Aluminum
DWHXD White
DDBTXD Textured Dark Bronze
DBLBXD Textured Black
DNATXD Textured Natural Aluminum
DWHGXD Textured White
WW
Ordering Information
EXAMPLE: RSXF3 LED P4 40K WFL MVOLT IS DDBXD
RSXF3 LED
Series Performance Package Color Temperature Distribution Voltage Mounting
RSXF3 LED P1
P2
P3
P4
30K 3000K
40K 4000K
50K 5000K
AWFD Area Wide Forward
WFL Wide Flood
MFL Medium Flood
NFL Narrow Flood
SP Spot
NSP Narrow Spot
MVOLT (120V-277V)
1
HVOLT (347V-480V)
2
(use specific voltage for
options as noted)
120
3
277
3
208
3
347
3
240
3
480
3
IS Adjustable slipfitter (fits 2-3/8” OD tenon)

L
W
H
