Instructions / Assembly

QTE LED
Rev. 09/26/19
Page 2 of 2
COMMERCIAL OUTDOOR
Full photometric data report available within 2 weeks from request. Contact Acuity Tech Support.
Lumen Output Input Power Efficacy (Lumens per Watt)
QTE LED P1 2,500 24W
104
QTE LED P2 4,000 40W
100
QTE LED P3 6,750 66W 102
One Lithonia Way • Conyers, Georgia 30012 • Phone: 800-705-SERV (7378) • www.lithonia.com
© 2018-2019 Acuity Brands Lighting, Inc. All rights reserved
6 11/16”
[16.9cm]
5”
[12.7cm]
6 7/16”
[16.34cm]
3 3/16”
[8.13cm]
6 11/16”
[16.9cm]
3 5/8”
[9.2cm]
7 5/8”
[19.35cm]
5”
[12.7cm]
2 15/16”
[7.4cm]
3 1/4”
[8.3cm]
7 15/16”
[20.18cm]
5 7/8”
[14.88cm]
3 7/16”
[18.77cm]
4”
[10.16cm]
7 15/16”
[20.18cm]
3 5/8”
[9.2cm]
8 7/16”
[21.51cm]
5 7/8”
[14.88cm]
2 15/16”
[7.4cm]
4”
[10.16cm]

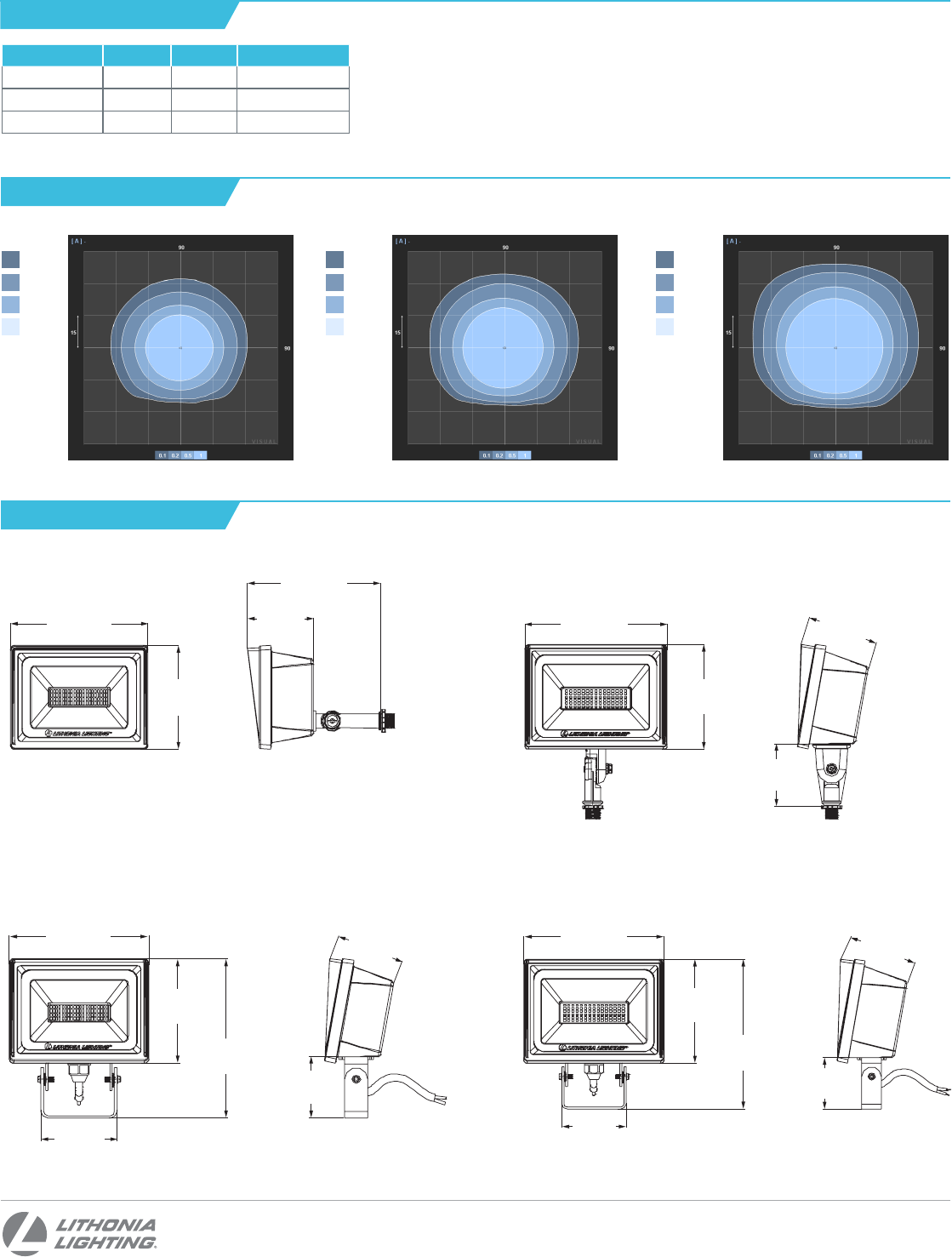

Performance Data
Photometric Diagrams
Dimensions
LEGEND LEGEND LEGEND
0.1 fc 0.1 fc 0.1 fc
0.2 fc 0.2 fc 0.2 fc
0.5 fc 0.5 fc 0.5 fc
1.0 fc 1.0 fc 1.0 fc
2/5/2018 Template Print
http://www.visual-3d.com/tools/template/Print.aspx?SessionID=6222457 1/1
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Monday, February 05, 2018
Name
Company
Phone
Email
[ A ] -
Manufacturer Caster Configuration Single
Lamp Lumens 2475 Orientation Single
Lamp Quantity 1 Mounting Height 15
Light Loss Factor 1 Arm Length 1
Input Power 24.2 Tilt 0
Max Illuminance 4 Area > 0.5fc 1281
2/5/2018 Template Print
http://www.visual-3d.com/tools/template/Print.aspx?SessionID=6222457 1/1
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Monday, February 05, 2018
Name
Company
Phone
Email
[ A ] -
Manufacturer Caster Configuration Single
Lamp Lumens 3911 Orientation Single
Lamp Quantity 1 Mounting Height 15
Light Loss Factor 1 Arm Length 1
Input Power 39.8 Tilt 0
Max Illuminance 7 Area > 0.5fc 1721
2/5/2018 Template Print
http://www.visual-3d.com/tools/template/Print.aspx?SessionID=6814546 1/1
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Monday, February 05, 2018
Name
Company
Phone
Email
[ A ] -
Manufacturer Caster Configuration Single
Lamp Lumens 6675 Orientation Single
Lamp Quantity 1 Mounting Height 15
Light Loss Factor 1 Arm Length 1
Input Power 65.6 Tilt 0
Max Illuminance 11 Area > 0.5fc 2324
QTE P1-P2 knuckle
QTE P1-P2 yoke
QTE P3 knuckle
QTE P3 yoke
QTE LED P1 QTE LED P2 QTE LED P3
