INSTALLATION INSTRUCTIONS
CAUTION - Risk of Shock: Aim lamp heads at least
20° down below horizontal in order to prevent water from
accumulating inside lens.
After lamp heads are positioned as desired, align the optional
visor (10) over the front of the round lamp head and secure by
tightening the set screws (11) on the visor.
9. Turn on electricity at fuse or circuit breaker box and verify
success of installation.
10. Apply silicone caulking (not included) around the perimeter
of the fi xture where it contacts the mounting surface for moisture
seal.
See next pages for MOTION SENSOR SET UP INSTRUCTIONS
1. Remove fi xture components and parts pack. Check to
ensure all parts are included. Note: Account for small parts and
destroy packing material, as these may be hazardous to children.
2. Turn OFF Power at circuit breaker box.
CAUTION: Do not rely on wall switch alone to turn off power.
Note: Suitable for wall eave mount or wall mount above 4ft (1,2m).
Not suitable for ground mount installation.
3. Install Cross Bar (4) to junction box using two 3/4” #6 or #8 or
#10 screws (3) (screw size will depend on your junction box).
CAUTION: WIRING AND FIXTURE OPERATION
Make sure power is turned off.
4. Hook one end of the support hook (12) onto the cross bar
and hang the light fi xture on the other end of the support hook to
temporarily support fi xture during wiring. See Fig.A
5. To Ground fi xture use wire nut (5) to connect the (copper)
house supply ground wire & the green fi xture ground wire. Note:
If house wiring does not include a ground wire, consult your local
electrical code for approved grounding methods.
For proper connection, place wire nut over wires
and twist clockwise until tight.
6. To Connect supply wires use wire nut (5) to connect the black
fi xture wire to the black power supply wire and the white fi xture
wire to the white (neutral) supply wire.
7. To Install fi xture insert mounting screw (6) into center hole
of fi xture housing. Align fi xture over j-box and secure to cross
bar by tightening mounting screw. Note: Lamp heads must be
positioned above motion sensor head and controls on motion
sensor must face the ground. Make sure no wires are pinched
before tightening. Cover center hole in fi xture housing with rubber
plug (7). See Fig B.
8. Aim lamp heads and install optional visor
Each lamphead can be positioned in multiple directions via
the adjustment knob (9) and the lock nut (8). Note: Make sure
to secure all lock nuts and adjustment knobs tightly (do not
overtighten) after fi nal adjustments are made to avoid water entry.

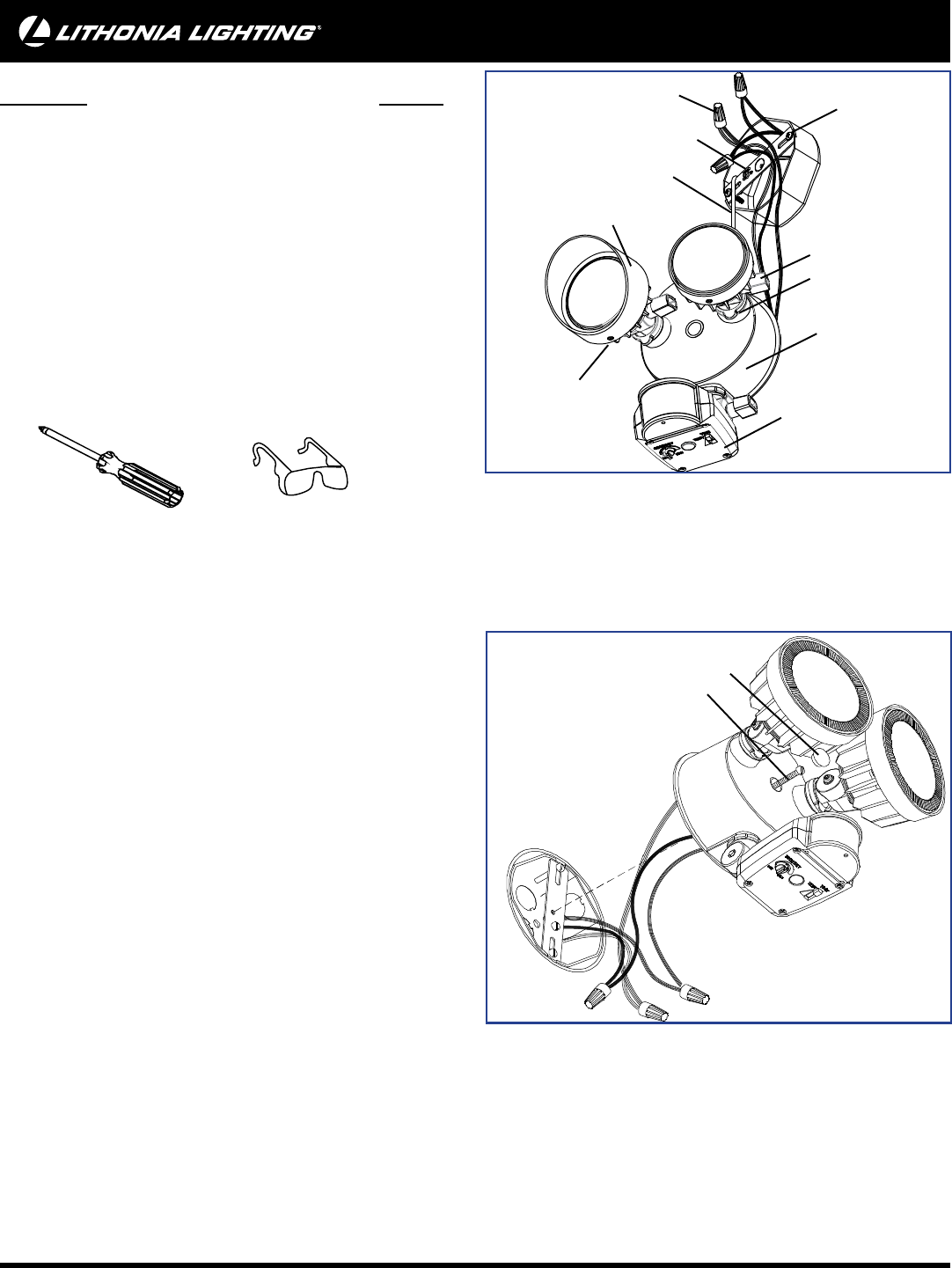

Figure A
6) Mounting Screw
7) Rubber Plug
FIXTURE PACKING LIST
Description Quantity
1) LED Light Fixture................................................................. 1
2) Motion Detector Head ......................................................... 1
3) 3/4” #8 & #6 & #10 Screws* ................................................ 6
4) Cross Bar ............................................................................ 1
5) Wire Nuts* ........................................................................... 3
6) 1-5/8” Mounting Screw Screws ........................................... 1
7) Rubber Plug* ....................................................................... 1
8) Lock Nuts ............................................................................ 2
9) Ajustment Knob ................................................................... 2
10) Visor ................................................................................... 2
11) Set Screw ........................................................................... 4
12) Support Hook* .................................................................... 1
*Contained in parts packs
Mounting Hardware Included
Silicone Sealant Required
REQUIRED TOOLS:
Figure B
1) LED Light Fixture
4) Cross Bar
3) 3/4” Screws
5) Wire Nuts
8) Lock Nut
2) Motion Detector Head
10) Visor
9) Adjustment Knob
11) Set Screw
12) Support Hook
