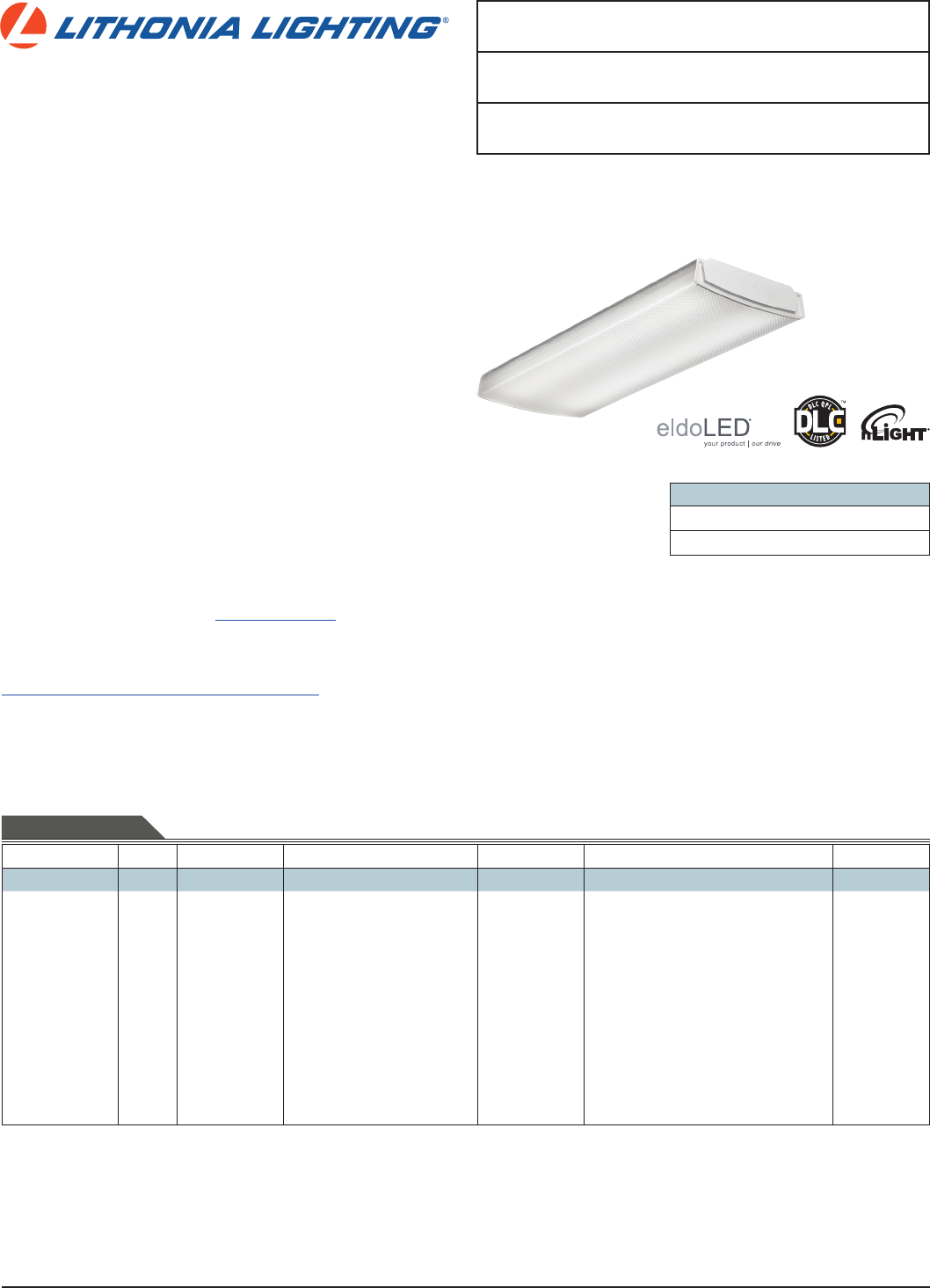

Technical Specifications

LED LBL2
Catalog
Number
Notes
Type
LBL2
Series Lumens
1
Voltage Driver Color temperature Control Finish
LBL2 2' wrap LED 20L (blank) MVOLT
(120-277)
347 347V
2
EZ1 eldoLED dims to 1%, 0-10V
SLD Step-level dimming
3
EOHN eldoLED non-dimming, on/o
3
LP830 3000 K
LP835 3500 K
LP840 4000 K
LP850 5000 K
(blank) No controls
N80 nLight with 80% (L80) lumen
management
N80EMG nLight with 80% (L80) lumen
management for use with generator
supply EM power
N100 nLight without lumen management
N100EMG nLight without lumen management for
use with generator supply EM power
LSXRHL Sensor Switch® xture mount sensor
with High/Low occupancy operation
4
LSXR10 Sensor Switch® xture mount sensor
with On/O occupancy operation
(blank) White
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
Example: LBL2 20L EZ1 LP840
FEATURES & SPECIFICATIONS
INTENDED USE — LBL LED wraparound provides a digital lighting platform to deliver general ambient
lighting for surface-mount applications. The LED system delivers long life and excellent color to ensure a qual-
ity, low-maintenance lighting installation. Ideal for closets, storage rooms, hallways, stairwells and oces.
CONSTRUCTION — Metal parts are die formed from code-gauge steel. Prismatic diuser is 100% acrylic
with sonically welded luminous ends. Continuous side anges on xture body provide light trap and continu-
ous diuser support to prevent accidental opening and simplify maintenance.
Finish: Five-stage iron phosphate pretreatment assures superior paint adhesion and rust resistance.
Painted parts nished with high-gloss, high-reectivity baked white polyester enamel (low VOC).
OPTICS — Curved prismatic diuser with linear side prisms and highly transmissive light diusing lm
minimizes lamp image and provides high-angle brightness control. Luminous end plates soften appearance
for improved aesthetics.
ELECTRICAL — Long-life LEDs, coupled with high-eciency drivers, provide superior quantity and quality
of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000). The
LEDs have a CRI of 82.
eldoLED driver options deliver choice of dimming range and choices for control, while assuring icker-free,
low-current inrush, 89% eciency and low EMI.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy
codes while maintaining xture appearance.
CONTROLS — Pair the LBL with the xture mount Sensor Switch LSXR sensor for additional energy sav-
ings when the space is unoccupied. The LSXRHL sensor dims the xture down to a low-level setting when
there is no occupancy. This option is ideal for stairwells, back rooms, and closets due to the low occupancy
level in those spaces.
Optional nLight® embedded controls continuously monitor system performance, allow for constant lumen
management / compensation function, facilitate simple “plug-and-play” network and controls upgrading
via Cat-5 cable. Ballast disco nnect provided where required to comply with US and Canadian codes.
LISTINGS — CSA certied to meet U.S. and Canadian standards.
DesignLights Consortium® (DLC) qualied product. Not all versions of this product may be DLC qualied.
Please check the DLC Qualied Products List at www.designlights.org/QPL to conrm which versions
are qualied.
Damp listed.
WARRANTY  5-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may dier as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specications subject to change without notice.
Notes
1 Approximate lumen output.
2 Not available with SLD driver.
3 Not available with control options.
4 Dims to approximately 10% light output when
unoccupied. See sensor details on next page.
Low-Prole Curved-Basket
LED Wraparound
LBL2
2' LENGTH, NARROW HOUSING
LED
Stock version through Contractor Select Oering
LBL2 LP835
LBL2 LP840
