Specification
ELM612
EMERGENCY: One Lithonia Way Conyers, GA 30012 Phone: 800.334.8694 www.lithonia.com © 2003-2016 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/31/16
ELM 6-12 QUANTUM
®
Thermoplastic Emergency Light
MOUNTING
All dimensions are in inches (centimeters).
1 At 77°F (25°C).
2 All life safety equipment, including emergency lighting for path of egress, must be maintained, serviced and tested in
accordance with all National Fire Protection Association (NFPA) and local codes. Failure to perform the required maintenance,
service or testing could jeopardize the safety of occupants and will void all warranties.
3 Optimum ambient temperature range where unit will provide capacity to 90 minutes. Higher and lower temperatures aect
life and capacity. Consult factory for detailed information.
12-3/4"
(32.4)
7
(17.8)
4-3/4"
(12.0)
12-3/4"
(32.4)
7
(17.8)
5-7/8"
(14.9)
12-3/4"
(32.4)
7
(17.8)

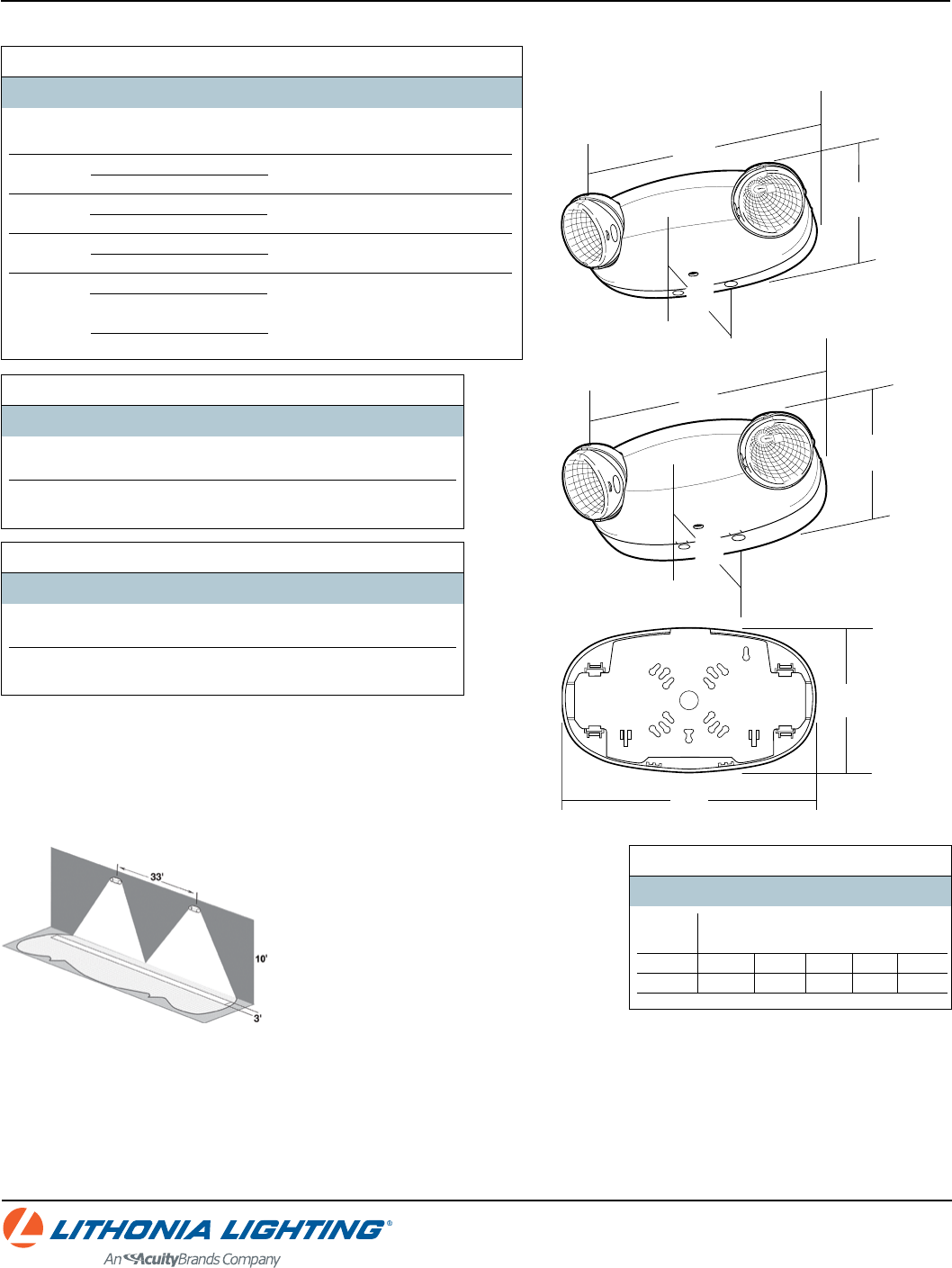

ELM618 and ELM627 Dimensions (small housing)
ELM654, ELM1254 and ELM1272
Dimensions (large housing)
ELM6-12 Backplate
PERFORMANCE DIAGRAMS
Shipping weight:
ELM618 - 6.8 lbs. (3.1 kgs)
ELM627 - 8.0 lbs. (3.6 kgs)
Shipping weight:
ELM654 - 13 lbs. (5.9 kgs)
ELM1254 - 13 lbs. (5.9 kgs)
ELM1272 - 13 lbs. (5.9 kgs)
ELM12 Performance Advantage
• 12-volt, 9-watt krypton lamp
• Typical 10-foot mounting height delivers
33 feet center-to-center spacing
• 48% increase in center-to-center spacings
over competitive 12-volt higher capacity
emergency lighting units.
SPECIFICATIONS
ELECTRICAL
Primary Circuit
AC input Output
volts
Watts output
Type Volts Amps Max watts 1-1/2 hrs. 2 hrs. 3 hrs. 4 hrs.
ELM618
120 .167 5.2
6 18 13.5 9 3
277 .072 5.6
ELM627
120 .10 5.2
6 27 20 13.5 10
277 .04 5.6
ELM654
120 .250 7.4
6 54 40.5 27 20
277 .108 7.4
ELM1254
120 .250 11
12 54 40.5 27 20
277 .108 11.1
ELM1272
120 .250 11
12 72 54 36 27
277 .108 11.1
BATTERY
Sealed Lead Acid (SLA)
Voltage
Shelf
life
1
Typical
life
1
Maintenance
2
Optimum
temperature
3
6/12 12 months 3-5 years none
60°–90°F
(16°–32°C)
BATTERY
Nickel-Cadmium
Voltage
Shelf
life
1
Typical
life
1
Maintenance
2
Optimum
temperature
3
6/12 3 years 5-7 years none
32°–100°F
(0°–37.8°C)
Recommended Center-to-Center Spacing
Mounting height
Lamps 7.5' 10' 12' 16' 20'
K0906 25’ 31’ 29’ 27’ 23’
K0912 25’ 33’ 30’ 29’ 26’
