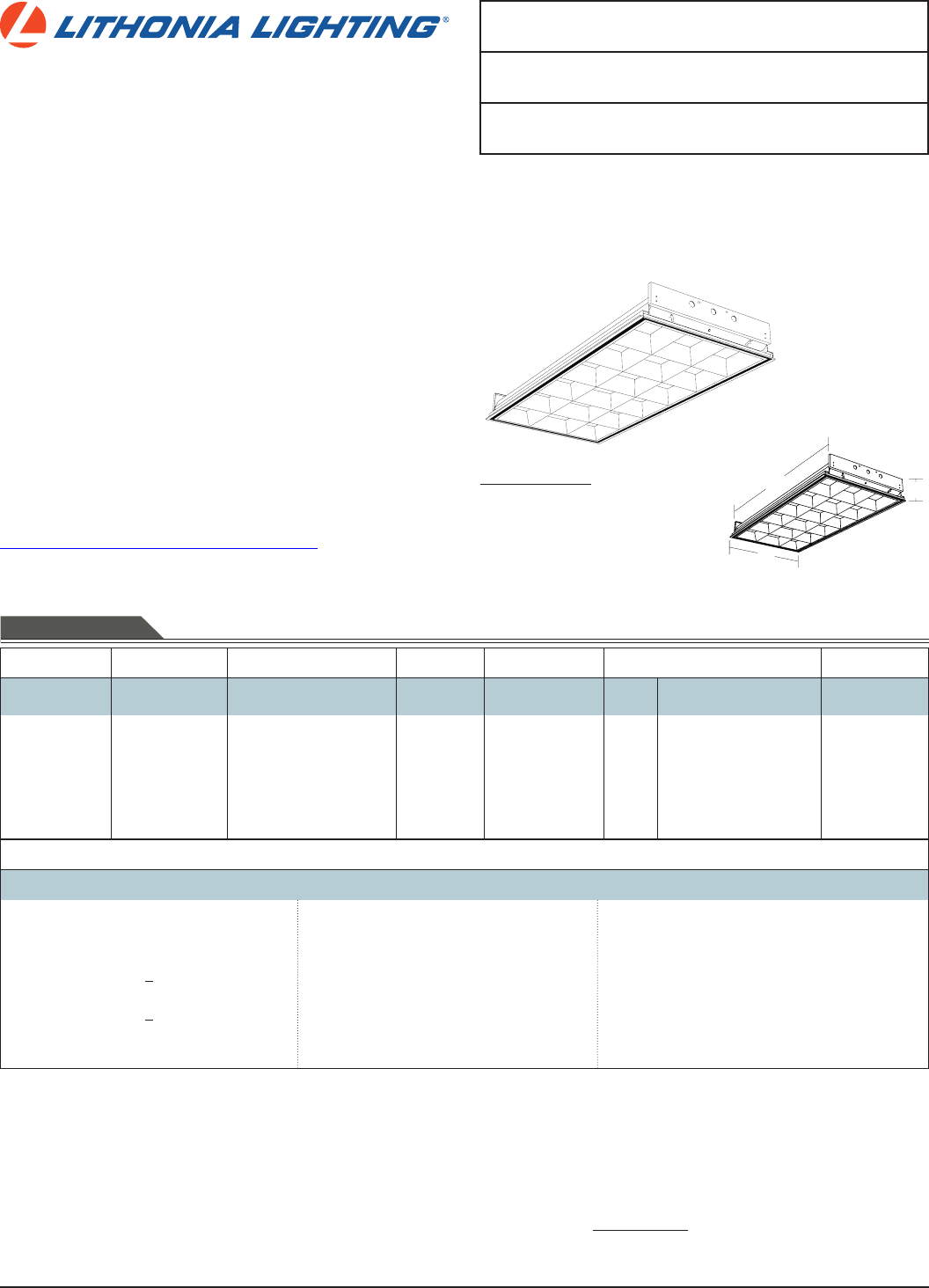

Installation Instructions

PARAMAX
®
Parabolic Troffer
2PM3N 2'x4'
3" Louver Family
Specifications
Length: 48 (121.8)
Width: 24 (60.9)
Depth: 4-1/2 (11.4)
Weight: 32 lbs (14.5 kg)
All dimensions are inches (centimeters).
FEATURES & SPECIFICATIONS
INTENDED USE — High performance parabolic luminaires for use in open area applications and electronic
offices where optical control, visual comfort and light cut-off are important.
Design optimized for use with T8 lamps and low-profile electronic ballasts.
Choice of diffuse or specular louvers utilizing the latest developments in louver finishing for minimized
louver iridescence.
CONSTRUCTION — Black reveal provides floating louver appearance, conceals optional air-supply slots.
Square corner end plates improve strength and durability.
Integral T-bar safety clips hold fixture to T-bar securely; no fasteners required.
Heavy-gauge hinges die-formed for maximum strength; spring action latches concealed in black reveal.
Housing formed from cold-rolled steel. Louver formed from anodized aluminum. No asbestos used in
this product.
Overlapping flange and modular ceiling trims available factory installed with swing gate hangers or field
convertible with optional trim and hangers.
Finish: Five-stage iron-phosphate pretreatment ensures superior paint adhesion. Painted parts finished with
high-gloss, baked white enamel.
ELECTRICAL — Thermally protected, resetting, Class P, HPF, non-PCB, UL Listed, CSA certified ballast is
standard.
Electronic ballasts are sound rated A.
Ballast disconnect provided standard where required to comply with US and Canadian electrical codes.
Fixture conforms to UL1570 and is suitable for damp locations. AWM, TFN or THHN wire used throughout,
rated for required temperatures.
LISTING — UL Listed (Standard), CSA Certified or NOM Certified (see Options).
WARRANTY — 1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice.
2PM3N 32
Series Trim type Air function
Number of
lamps Lamp type
Number
of cells
1
Louver finish Voltage
2PM3N Paramax
3" louver
family
G Grid
F Overlapping
flange
ST Screw slot
B No air function
A Air supply/return (slots in
side trim)
D Dual function supply/
return/removal
2
3
4
(Not included)
32 32W T8 (48") 12
18
32
16
24
LD Low iridescent anodized
diffuse silver
LS Low iridescent anodized
specular silver
MVOLT
2
120
277
347
(Others available)
ORDERING INFORMATION
For shortest lead times, configure products using bolded options.
Example: 2PM3N G B 3 32 18LD MVOLT 1/3 GEB10IS
Catalog
Number
Notes
Type
FLUORESCENT 2PM3N-2X4
Options
3
(blank) Two ballasts (three- and four-lamp only)
1/3 One 3-lamp ballast
1/4 One 4-lamp ballast
GEB10IS Electronic ballast, <10% THD, instant start
GEB10PS Electronic ballast, <10% THD, programmed start
GEB10RS Electronic ballast, <10% THD, rapid start
EL Emergency battery pack (nominal 500 lumens)
EL14 Emergency battery pack (nominal 1400 lumens)
PWS1836 6' prewire, 3/8" dia., 18-gauge, 3 wires
PWS1846 6' prewire, 3/8" dia., 18-gauge, 4 wires
QFC313_ Reloc Quick-Flex 12/3G, 13'
4,5
LST Tandem fixture pairs (shared ballasts)
LP__ Lamped, specify lamp type and color
GLR Internal fast-blow fuse
5
GMF Internal slow-blow fuse
5
ACS Air closure strips (A and D models only)
APB Air-pattern control blades (A and D models only)
PAF Painted after fabrication (white enamel)
2R Two reflector channel covers
6
JP Palletized and stretch-wrapped (G trim only)
CSA CSA Certified
NOM NOM Certified
Notes
1 Standard louver configuration:
2 lamps = 12 cells, diffuse silver
3 lamps = 18 cells, diffuse silver
4 lamps = 32 cells, diffuse silver
2 MVOLT standard for 120V and 277V applications. Some options require voltage specified.
3 Some options increase fixture depth. Consult factory if plenum space is a concern.
4 Must specify circuit wiring. Refer to
www.lithonia.com/Reloc for additional information.
5 Must specify voltage.
6 Available with 3-lamp 18 or 24 cell only.
48
(1218)
24
(60.9)
4 1/2
(114)
