3. Functions and Test
3.1 Functions
PRODUCT FEATURES
 Operateat2.4GHz/5GHzband
 866MbpsPHYRateSupport
 2T2RModes
 20/40/80MHzBandwidthSupport
 USB2.0supportfordateratesupto12Mbpsfullspeedand480Mbpshighspeed
 IEEEstandardssupport:IEEE802.11a/b/g/nand802.11acdraft
 802.11i‐WEP64/128,AES,TKIP,GCMP,WAPI
 RoHScompliance
 LowHalogenc
ompliance

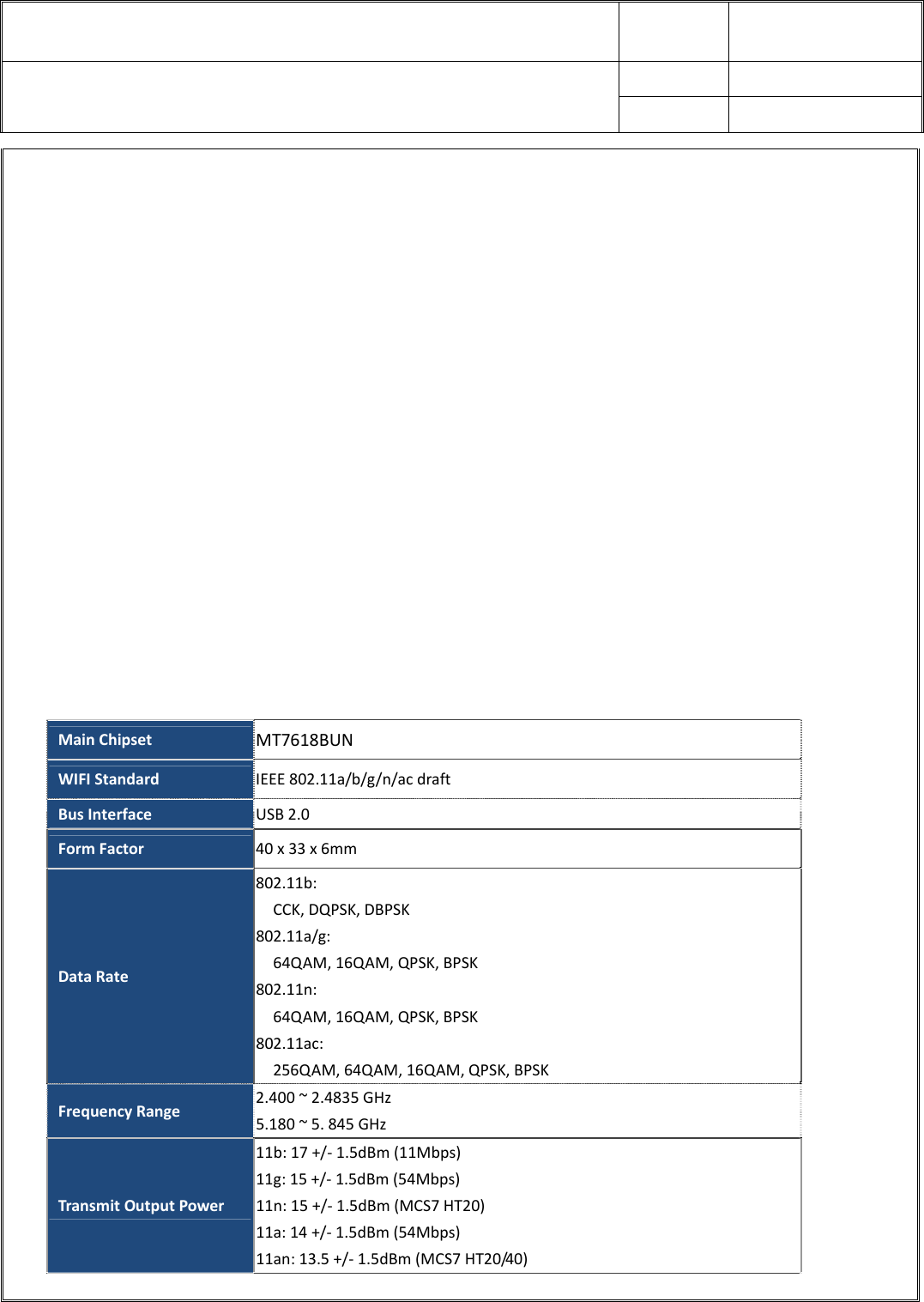

FUNCTIONAL SPECIFICATIONS
MainChipset
MT7618BUN
WIFIStandard IEEE802.11a/b/g/n/acdraft
BusInterface USB2.0
FormFactor 40x33x6mm
DataRate
802.11b:
CCK,DQPSK,DBPSK
802.11a/g:
64QAM,16QAM,QPSK,BPSK
802.11n:
64QAM,16QAM,QPSK,BPSK
802.11ac:
256QAM,64QAM,16QAM,QPSK,BPSK
FrequencyRange
2.400~2.4835GHz
5.180~5.845GHz
TransmitOutputPower
11b:17+/‐1.5dBm(11Mbps)
11g:15+/‐1.5dBm(54Mbps)
11n:15+/‐1.5dBm(MCS7HT20)
11a:14+/‐1.5dBm(54Mbps)
11an:13.5+/‐1.5dBm(MCS7HT20/40)
