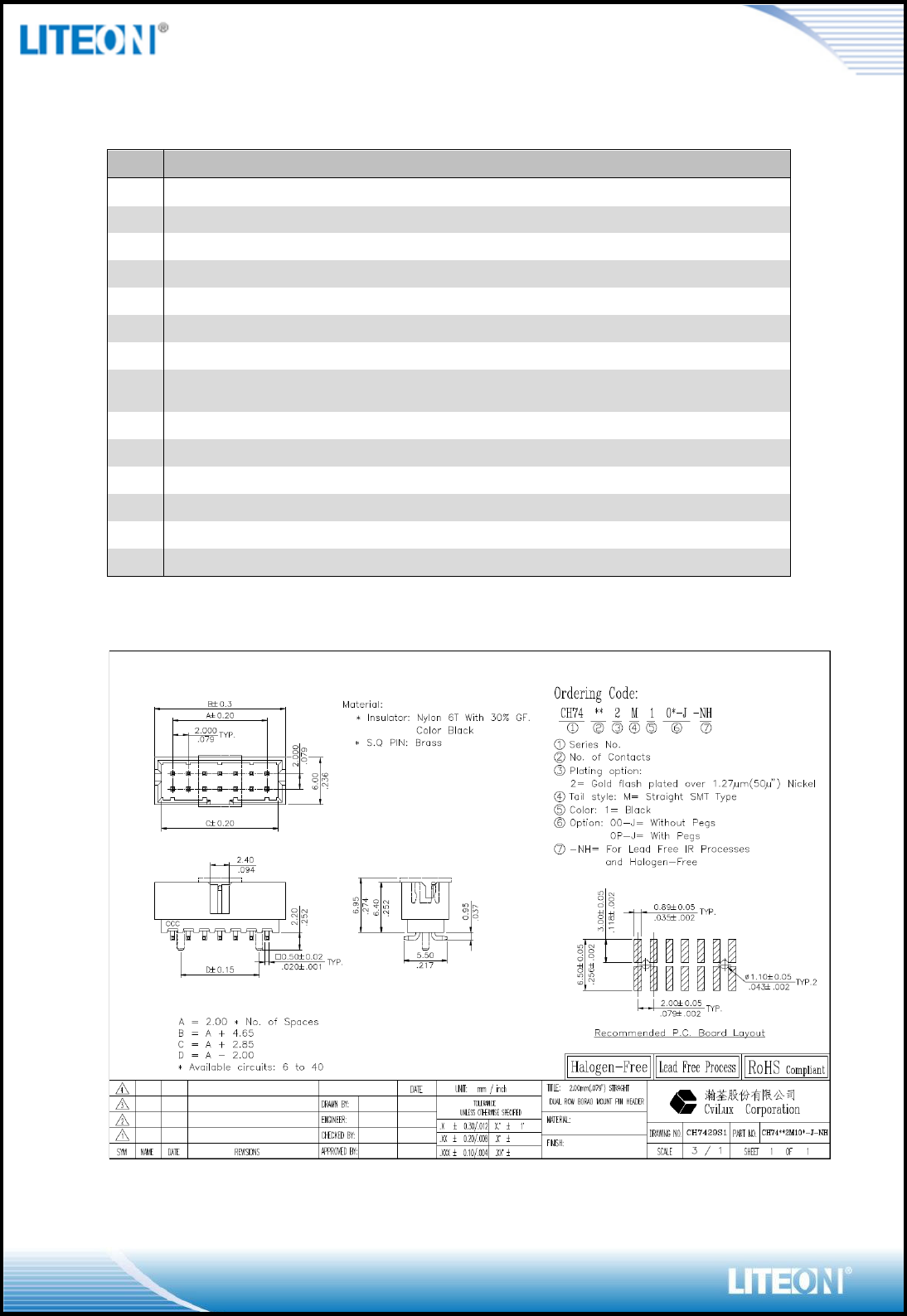

Page 8/14

PIN ASSIGNMENT

Pin.

Pin Define

Description

Status

1

GND

Ground

YES

2

GND

Ground

YES

3

SDIO_Data1

SDIO Data Line1

YES

4

SDIO_Data2

SDIO Data Line2

YES

5

SDIO_Data0

SDIO Data Line0

YES

6

SDIO_Data3

SDIO Data Line3

YES

7

SDIO_CMD

SDIO Command Input

YES

8

WL/BT_HOST_

WAKE#

Device

wake up Host, Low Active

YES

9

SDIO_CLK

SDIO Clock Input

YES

10

GND

Ground

YES

11

PDn#

Active Low to Power-Down WLAN

YES

12

GND

Ground

YES

13

+1.8V

1.8V power supply for VIO_SD

NC

14

+3.3V

3.3V power supply

YES

CONNECTOR SPEC
